RIEGLER Locking screw, Exterior hexagonal, G 1, AF 36, Brass
Type number: MS290SK1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Brass screw plug CW614N, for pipeline construction, max. 25 bar - type MS290SK1
The RIEGLER screw plug, external hexagon, G 1, SW 36, MS is a high-quality accessory from the RIEGLER range. The housing is made of brass CW614N. Designed for a maximum operating pressure of 25 bar. Connection thread G 1 external hexagon - suitable for common industry standards. Perfect fit for RIEGLER products - easy installation.
Field of application
Typical areas of application: Maintenance, servicing and expansion of compressed air components.
| Working pressure max. | 25 bar |
| Material | Brass CW614N |
| Operating temperature max. | 150 °C |
| Thread | G 1 external hexagon |
| SW | 36 mm |
| L1 | 21 mm |
| L2 | 13 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[136089] RIEGLER Locking screw, Exterior hexagonal, G 1/2, AF 24, Brass](/web/image/product.template/207415/image_128/%5B136089%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%2C%20G%201-2%2C%20AF%2024%2C%20Brass?unique=ac5e86c)
|
Type number: MS290SK12 |
1.68 € | |
![[136087] RIEGLER Locking screw, Exterior hexagonal, G 1/4, AF 17, Brass](/web/image/product.template/207413/image_128/%5B136087%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%2C%20G%201-4%2C%20AF%2017%2C%20Brass?unique=5813b51)
|
Type number: MS290SK14 |
0.58 € | |

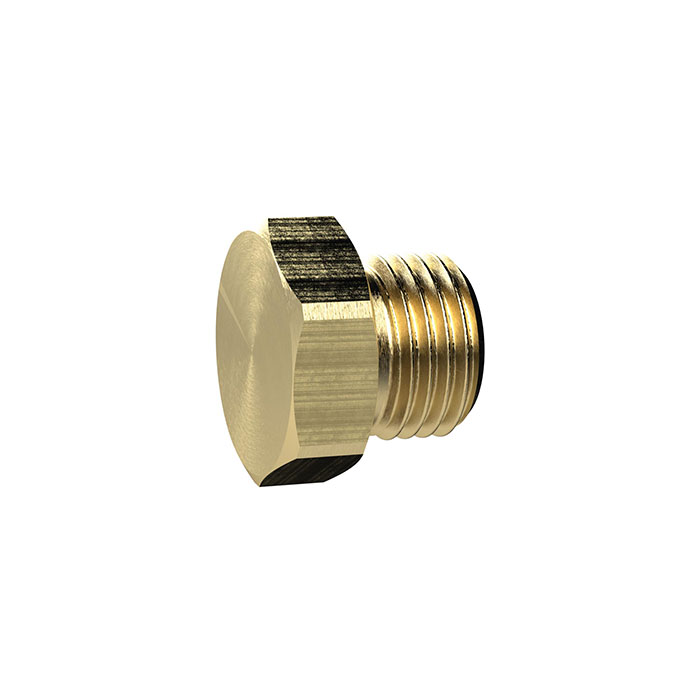

![[136086] RIEGLER Locking screw, Exterior hexagonal, G 1/8, AF 14, Brass](/web/image/product.template/207412/image_128/%5B136086%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%2C%20G%201-8%2C%20AF%2014%2C%20Brass?unique=bd2376b)
|
