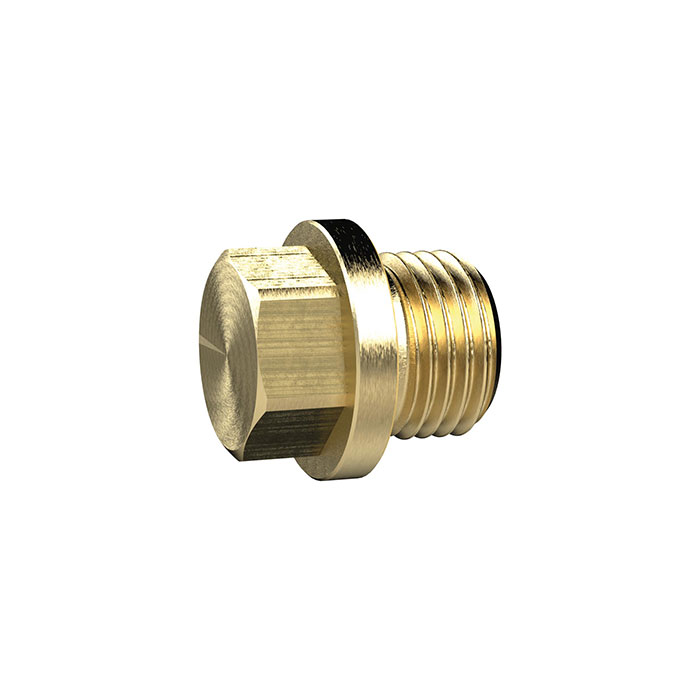

RIEGLER Locking screw, Exterior hexagonal and flange, G 3/4, AF 24, Brass
Type number: MS290SKMB34
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Brass screw plug CW614N, for pipeline construction, max. 25 bar - type MS290SKMB34
The RIEGLER screw plug, external hexagon and collar, G 3/4, SW 24, MS is a high-quality accessory from the RIEGLER range. The housing is made of brass CW614N. Designed for a maximum operating pressure of 25 bar. Connection thread G 3/4 external hexagon - suitable for common industry standards. Perfect fit for RIEGLER products - easy installation.
Field of application
Typical areas of application: Maintenance, servicing and expansion of compressed air components.
| Working pressure max. | 25 bar |
| Material | Brass CW614N |
| Operating temperature max. | 150 °C |
| Thread | G 3/4 external hexagon |
| SW | 24 mm |
| L1 | 26 mm |
| L2 | 12 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | 1.0% w/w and < 10.0% |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[136102] RIEGLER Locking screw, Exterior hexagonal and flange G 1 1/2 AF 30 Brass](/web/image/product.template/207428/image_128/%5B136102%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%20and%20flange%20G%201%201-2%20AF%2030%20Brass?unique=4a66142)
|
Type number: MS290SKMB112 |
12.01 € | |
![[136101] RIEGLER Locking screw, Exterior hexagonal and flange G 1 1/4 AF 30 Brass](/web/image/product.template/207427/image_128/%5B136101%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%20and%20flange%20G%201%201-4%20AF%2030%20Brass?unique=9c72e93)
|
Type number: MS290SKMB114 |
9.81 € | |
![[136098] RIEGLER Locking screw, Exterior hexagonal and flange, G 1/2, AF 19, Brass](/web/image/product.template/207424/image_128/%5B136098%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%20and%20flange%2C%20G%201-2%2C%20AF%2019%2C%20Brass?unique=b0435fe)
|
Type number: MS290SKMB12 |
2.80 € | |

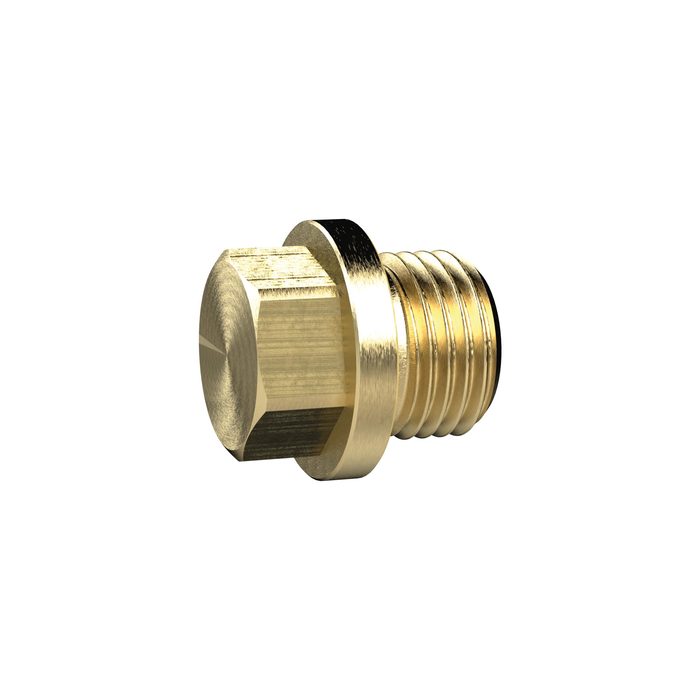

![[136096] RIEGLER Locking screw, Exterior hexagonal and flange, G 1/4, AF 13, Brass](/web/image/product.template/207422/image_128/%5B136096%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%20and%20flange%2C%20G%201-4%2C%20AF%2013%2C%20Brass?unique=23fe64e)
|
