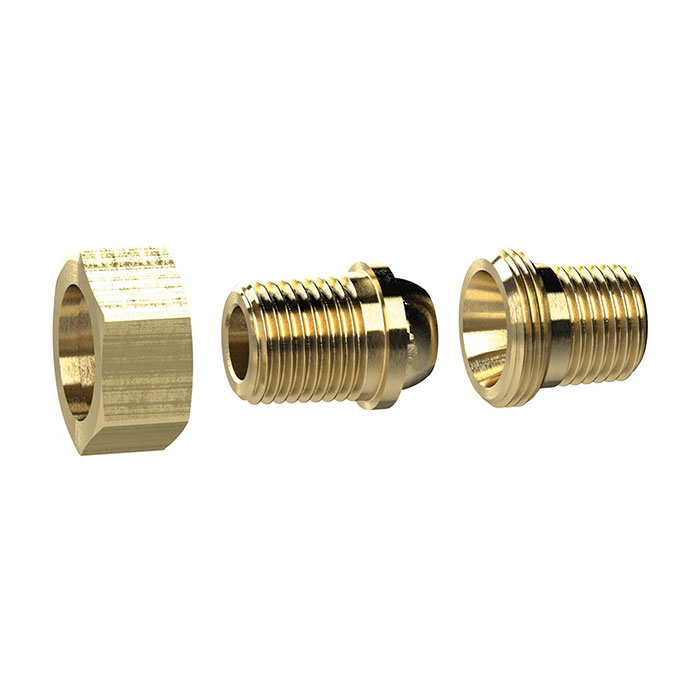

RIEGLER Rem. double threaded nipple, con. sealing, R 1/8 o.,R 1/8 o.Brass
Type number: MS252L1818
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Detachable double threaded nipple, con. sealing, R 1/8 a., R 1/8 a., SW 15, SW1 5, MS, working pressure max. 25 bar, operating temp. max. 150°C
| Working pressure max. | 25 bar |
| Material | Brass CW614N |
| Operating temperature max. | 150 °C |
| SW 1 | 5 mm |
| SW | 15 mm |
| L1 | 27 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Thread 1 | R 1/8 |
| Thread 2 | R 1/8 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[136121] RIEGLER Rem. double threaded nipple con. sealing,R1 1/2 o.,R1 1/2 o.Brass](/web/image/product.template/207439/image_128/%5B136121%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%20con.%20sealing%2CR1%201-2%20o.%2CR1%201-2%20o.Brass?unique=be8af28)
|
Type number: MS252L112112 |
50.50 € | |
![[136120] RIEGLER Rem. double threaded nipple con. sealing,R1 1/4 o.,R1 1/4 o.Brass](/web/image/product.template/207438/image_128/%5B136120%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%20con.%20sealing%2CR1%201-4%20o.%2CR1%201-4%20o.Brass?unique=3637d1a)
|
Type number: MS252L114114 |
34.24 € | |
![[136117] RIEGLER Rem. double threaded nipple, con. sealing,R 1/2 o.,R 1/2 o.,Brass](/web/image/product.template/207435/image_128/%5B136117%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2CR%201-2%20o.%2CR%201-2%20o.%2CBrass?unique=9a94c28)
|
Type number: MS252L1212 |
3.22 € | |
![[136114] RIEGLER Rem. double threaded nipple, con. sealing, R 1/4 o.,R 1/4 o.Brass](/web/image/product.template/207432/image_128/%5B136114%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2C%20R%201-4%20o.%2CR%201-4%20o.Brass?unique=7d2dbc6)
|
Type number: MS252L1414 |
1.76 € | |
![[136115] RIEGLER Rem. double threaded nipple, con. sealing,R 1/4 o.,R 3/8 o.,Brass](/web/image/product.template/207433/image_128/%5B136115%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2CR%201-4%20o.%2CR%203-8%20o.%2CBrass?unique=a615e9e)
|
Type number: MS252L1438 |
2.43 € | |
![[136113] RIEGLER Rem. double threaded nipple, con. sealing, R 1/8 o.,R 1/4 o.Brass](/web/image/product.template/207431/image_128/%5B136113%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2C%20R%201-8%20o.%2CR%201-4%20o.Brass?unique=87ea7e6)
|
Type number: MS252L1814 |
1.43 € | |
![[136119] RIEGLER Rem. double threaded nipple, con. sealing, R 1 o., R 1 o. Brass](/web/image/product.template/207437/image_128/%5B136119%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2C%20R%201%20o.%2C%20R%201%20o.%20Brass?unique=662fd41)
|
Type number: MS252L11 |
15.57 € | |
![[136122] RIEGLER Rem. double threaded nipple, con. sealing,R 2 o.,R 2 o.,Brass](/web/image/product.template/207440/image_128/%5B136122%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2CR%202%20o.%2CR%202%20o.%2CBrass?unique=1d0f32c)
|
Type number: MS252L22 |
73.49 € | |
![[136118] RIEGLER Rem. double threaded nipple, con. sealing,R 3/4 o.,R 3/4 o.,Brass](/web/image/product.template/207436/image_128/%5B136118%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2CR%203-4%20o.%2CR%203-4%20o.%2CBrass?unique=7155ee9)
|
Type number: MS252L3434 |
7.18 € | |
![[136116] RIEGLER Rem. double threaded nipple, con. sealing,R 3/8 o.,R 3/8 o.,Brass](/web/image/product.template/207434/image_128/%5B136116%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%2C%20con.%20sealing%2CR%203-8%20o.%2CR%203-8%20o.%2CBrass?unique=fea2e13)
|
Type number: MS252L3838 |
2.77 € | |
