RIEGLER Rem. double threaded nipple, con. sealing,R 2 o.,R 2 o.,Brass
Type number: MS252L22
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Detachable double threaded nipple made of brass CW614N, for pipeline construction, max. 25 bar - type MS252L22
The RIEGLER detachable double threaded nipple, conical sealing, R 2 a., R 2 a., MS connects two female threaded connections of the same or different sizes. The housing is made of brass CW614N. Designed for a maximum operating pressure of 25 bar. Universal adapter for various thread sizes.
Field of application
Typical areas of application: Pipeline construction, compressed air distribution and sanitary installations.
| Working pressure max. | 25 bar |
| Material | Brass CW614N |
| Operating temperature max. | 150 °C |
| SW 1 | 32 mm |
| SW | 80 mm |
| L1 | 85 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Thread 1 | R 2 |
| Thread 2 | R 2 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[136121] RIEGLER Rem. double threaded nipple con. sealing,R1 1/2 o.,R1 1/2 o.Brass](/web/image/product.template/207439/image_128/%5B136121%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%20con.%20sealing%2CR1%201-2%20o.%2CR1%201-2%20o.Brass?unique=7c3f8e0)
|
Type number: MS252L112112 |
50.50 € | |

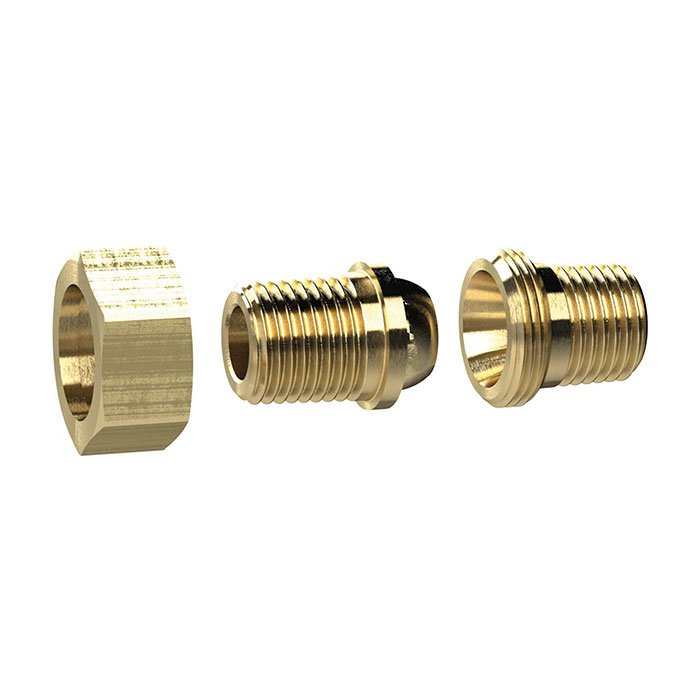

![[136120] RIEGLER Rem. double threaded nipple con. sealing,R1 1/4 o.,R1 1/4 o.Brass](/web/image/product.template/207438/image_128/%5B136120%5D%20RIEGLER%20Rem.%20double%20threaded%20nipple%20con.%20sealing%2CR1%201-4%20o.%2CR1%201-4%20o.Brass?unique=bdedf03)
|
