RIEGLER Bushing with exterior hexagonal, G 2, AF 70, Brass
Type number: MS252MU2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Socket with external hexagon made of brass CW614N, for pipeline construction, max. 25 bar - type MS252MU2
The RIEGLER socket with external hexagon, G 2, SW 70, brass, L1= 55 mm connects two pipes or fittings with thread - for pressure-tight inline connections. The housing is made of brass CW614N. Designed for a maximum operating pressure of 25 bar. Connection thread G 2 - suitable for common industry standards. Simple inline connection.
Field of application
Typical areas of application: Pipeline construction.
| Working pressure max. | 25 bar |
| Material | Brass CW614N |
| Operating temperature max. | 150 °C |
| Thread | G 2 |
| SW | 70 mm |
| L1 | 55 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[136127] RIEGLER Bushing with exterior hexagonal, G 1/2, AF 27, Brass](/web/image/product.template/207445/image_128/%5B136127%5D%20RIEGLER%20Bushing%20with%20exterior%20hexagonal%2C%20G%201-2%2C%20AF%2027%2C%20Brass?unique=e53f4b2)
|
Type number: MS252MU12 |
1.61 € | |
![[136125] RIEGLER Bushing with exterior hexagonal, G 1/4, AF 17, Brass](/web/image/product.template/207443/image_128/%5B136125%5D%20RIEGLER%20Bushing%20with%20exterior%20hexagonal%2C%20G%201-4%2C%20AF%2017%2C%20Brass?unique=d9fdb1f)
|
Type number: MS252MU14 |
0.76 € | |
![[136124] RIEGLER Bushing with exterior hexagonal, G 1/8, AF 14, Brass](/web/image/product.template/207442/image_128/%5B136124%5D%20RIEGLER%20Bushing%20with%20exterior%20hexagonal%2C%20G%201-8%2C%20AF%2014%2C%20Brass?unique=c23fdcd)
|
Type number: MS252MU18 |
0.62 € | |

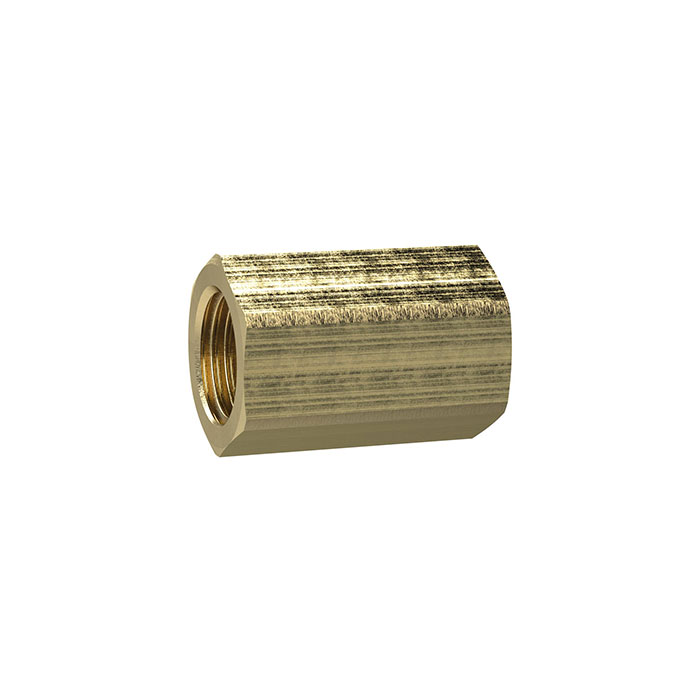

![[136129] RIEGLER Bushing with exterior hexagonal, G 1, AF 41, Brass](/web/image/product.template/207447/image_128/%5B136129%5D%20RIEGLER%20Bushing%20with%20exterior%20hexagonal%2C%20G%201%2C%20AF%2041%2C%20Brass?unique=94d9eca)
|
