RIEGLER Needle valve, Nickel-plated brass, panel mounting, IT/IT, Rp 1/8
Type number: 210.89-N
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Nickel-plated brass needle valve, for pneumatic control, max. 18 bar - Type 210.89-N
The RIEGLER needle valve, MS nickel-plated, for panel mounting, IG/IG, Rp 1/8, DN 4 controls the speed of pneumatic actuators or blocks backflow. The housing is made of nickel-plated brass with NBR seals. Designed for a maximum operating pressure of 18 bar. The operating temperature is between -10 °C and 80 °C. Connection thread Rp 1/8 (Rp thread and R thread to ISO 7/1) - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Housing | Nickel-plated brass |
| Sealing material | NBR |
| Max. operating pressure | 18 bar |
| Handwheel | Plastic |
| Spindle | Brass bright |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 80 °C |
| Thread | Rp 1/8 |
| DN | 4 |

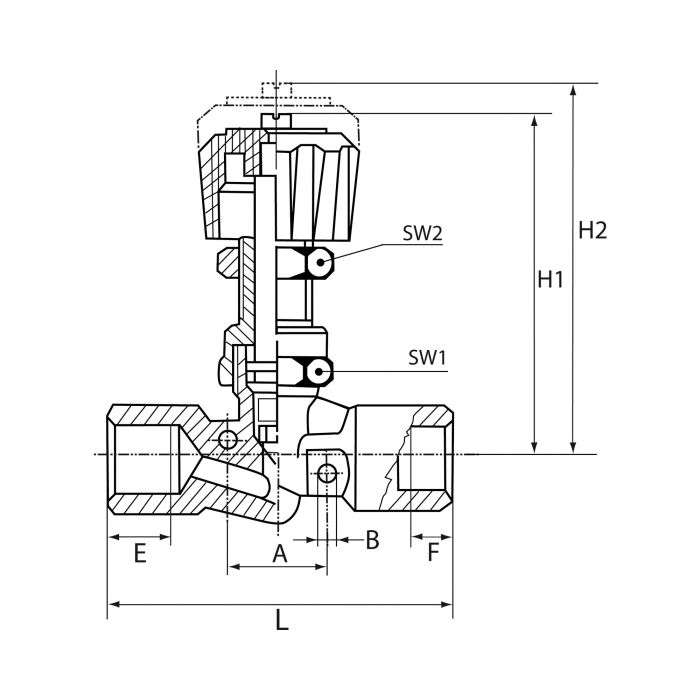

| SW 1 | 19 mm |
| SW 2 | 17 mm |
| Thread standard | Rp thread and R thread to ISO 7/1 |
| A | 20.5 mm |
| B | 4.5 mm |
| L | 51.6 mm |
| E | 6.7 mm |
| F | 6.7 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| H1 | 51 mm |
| H2 | 56 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

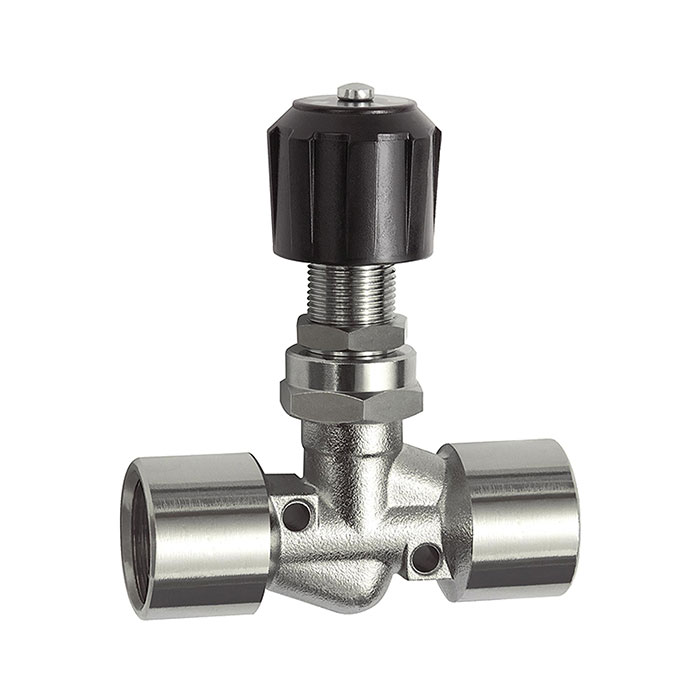

![[136233] RIEGLER Needle valve, Nickel-plated brass, panel mounting, IT/IT, Rp 1/2](/web/image/product.template/207480/image_128/%5B136233%5D%20RIEGLER%20Needle%20valve%2C%20Nickel-plated%20brass%2C%20panel%20mounting%2C%20IT-IT%2C%20Rp%201-2?unique=5fd6d8f)
|
