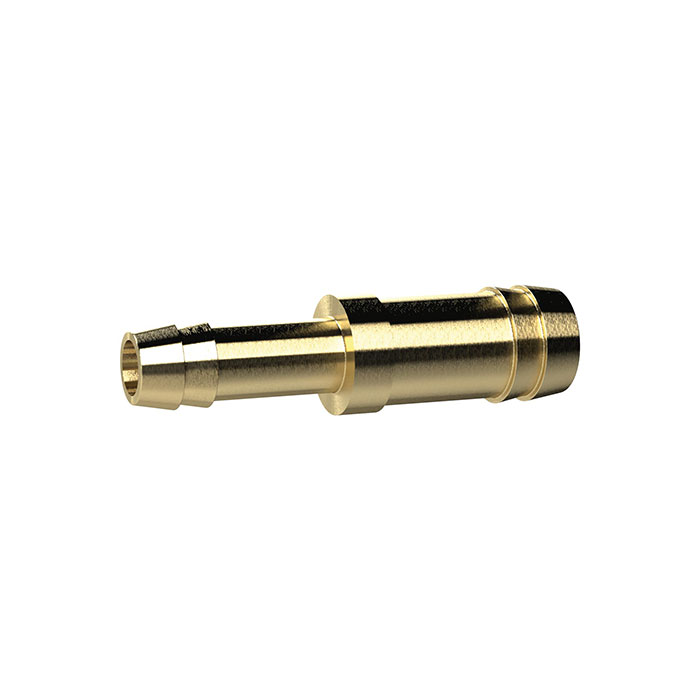

RIEGLER Double hose connector, reduced, for hose I.D. 6,9 mm, Brass
Type number: MS1700609
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Double hose nozzle, reducing, made of brass CW614N, for pneumatic installation, max. 16 bar - type MS1700609
The RIEGLER double hose nozzle reducing, for hose LW 6.9 mm, MS connects compressed air and pneumatic lines safely and tightly. The housing is made of brass CW614N. Designed for a maximum operating pressure of 16 bar. Secure, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.
| Medium temperature max. | 90 °C |
| Ambient temperature max. | 90 °C |
| Working pressure max. | 16 bar |
| Material | Brass CW614N |
| for hose | LW 6, 9 mm |
| L1 | 55 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
