RIEGLER 3-way ball valve, nickel-plated brass, T-hole, Rp 3/8
Type number: 1086 B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3-way ball valve made of nickel-plated brass (CW617N), for industrial systems, Rp 3/8 - type 1086 B
The RIEGLER 3-way ball valve, MS nickel-plated, bottom connection, T-bore, Rp 3/8 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass (CW617N). The operating temperature is between -15 °C and 120 °C. Connection thread Rp 3/8 (Rp thread to ISO 7-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Nickel-plated brass (CW617N) |
| Ball | Nickel-plated brass (CW617N) |
| Ball seal | PTFE |
| Spindle seal | PTFE / FKM |
| Hand lever | Steel, with plastic coating |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 120 °C |
| Thread | Rp 3/8 |
| DN | 10 |
| SW | 22 mm |
| PN | 25 bar |
| Thread standard | Rp thread according to ISO 7-1 |
| A | 115 mm |
| B | 60 mm |
| L | 52 mm |
| E | 11.4 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| H1 | 28.5 mm |
| H2 | 26 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Thread material | Brass bright |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

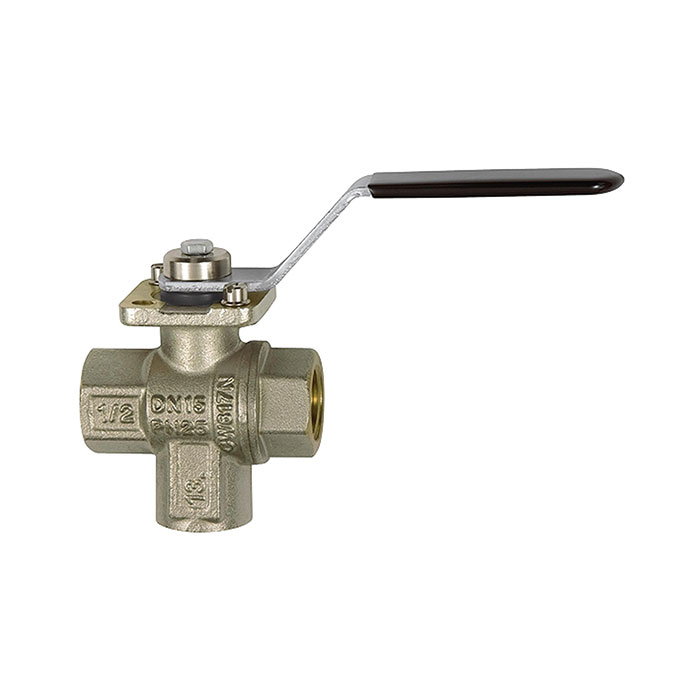

![[136338] RIEGLER 3-way ball valve, nickel-plated brass, T-hole, Rp 1](/web/image/product.template/207546/image_128/%5B136338%5D%20RIEGLER%203-way%20ball%20valve%2C%20nickel-plated%20brass%2C%20T-hole%2C%20Rp%201?unique=0910b36)
|
Type number: 1086 E |
78.55 € | |
![[136340] RIEGLER 3-way ball valve, nickel-plated brass, T-hole, Rp 1 1/2](/web/image/product.template/207548/image_128/%5B136340%5D%20RIEGLER%203-way%20ball%20valve%2C%20nickel-plated%20brass%2C%20T-hole%2C%20Rp%201%201-2?unique=d88a7f4)
|
Type number: 1086 G |
164.22 € | |
![[136339] RIEGLER 3-way ball valve, nickel-plated brass, T-hole, Rp 1 1/4](/web/image/product.template/207547/image_128/%5B136339%5D%20RIEGLER%203-way%20ball%20valve%2C%20nickel-plated%20brass%2C%20T-hole%2C%20Rp%201%201-4?unique=60becf0)
|
Type number: 1086 F |
123.34 € | |
![[136336] RIEGLER 3-way ball valve, nickel-plated brass, T-hole, Rp 1/2](/web/image/product.template/207544/image_128/%5B136336%5D%20RIEGLER%203-way%20ball%20valve%2C%20nickel-plated%20brass%2C%20T-hole%2C%20Rp%201-2?unique=9c5a2f2)
|
Type number: 1086 C |
44.07 € | |
![[136334] RIEGLER 3-way ball valve, nickel-plated brass, T-hole, Rp 1/4](/web/image/product.template/207542/image_128/%5B136334%5D%20RIEGLER%203-way%20ball%20valve%2C%20nickel-plated%20brass%2C%20T-hole%2C%20Rp%201-4?unique=1e4ca37)
|
Type number: 1086 A |
38.27 € | |
![[136341] RIEGLER 3-way ball valve, nickel-plated brass, T-hole, Rp 2](/web/image/product.template/207549/image_128/%5B136341%5D%20RIEGLER%203-way%20ball%20valve%2C%20nickel-plated%20brass%2C%20T-hole%2C%20Rp%202?unique=cf01d4f)
|
Type number: 1086 H |
266.64 € | |
![[136337] RIEGLER 3-way ball valve, nickel-plated brass, T-hole, Rp 3/4](/web/image/product.template/207545/image_128/%5B136337%5D%20RIEGLER%203-way%20ball%20valve%2C%20nickel-plated%20brass%2C%20T-hole%2C%20Rp%203-4?unique=3703ff5)
|
Type number: 1086 D |
61.42 € | |
