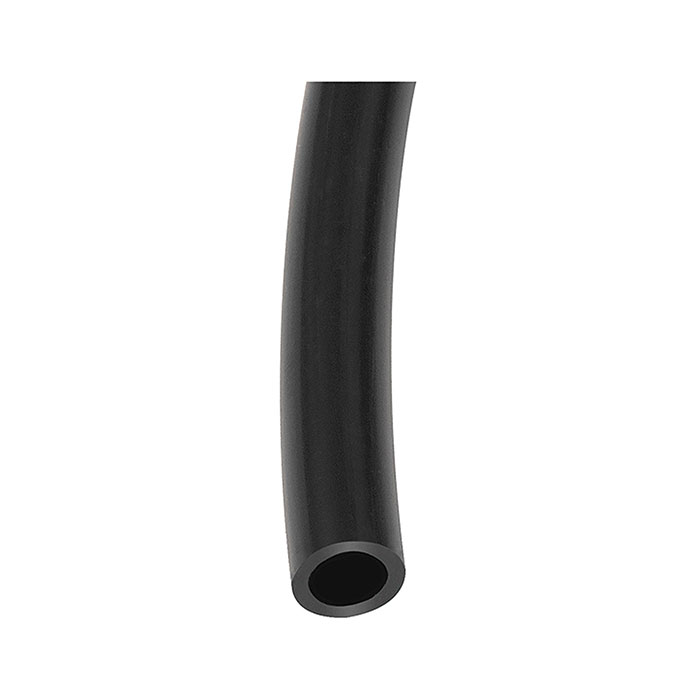

RIEGLER Plastic pipe, LLDPE, black, Hose Ø 15x11.5, Roller length 100 m
Type number: 97.15-100
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Plastic pipe made of LLDPE, for compressed air distribution, max. 10 bar - Type 97.15-100
The RIEGLER plastic pipe, LLDPE, black, hose ø 15x11.5, length 100m forms the fixed pipe network for compressed air distribution. The housing is made of LLDPE. The operating pressure range is -0.95 bar to 10 bar. The operating temperature is between -20 °C and 65 °C. Hose Ø 11.5 mm (inside) / 15 mm (outside). Durable and low-leakage.
Field of application
Typical areas of application: Stationary compressed air distribution.
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | LLDPE |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 65 °C |
| Colour | black |
| Outer hose Ø | 15 mm |
| Hose Ø inside | 11.5 mm |
| Roll length | 100 m |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

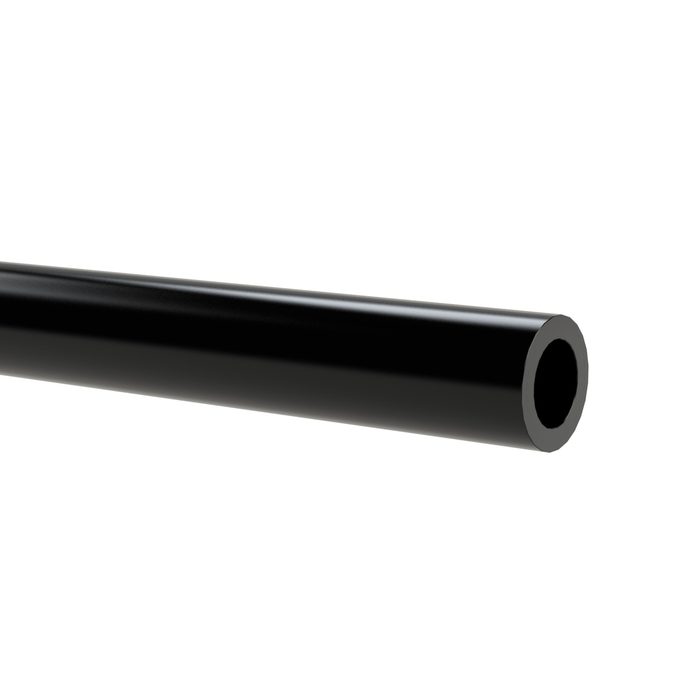

![[136367] RIEGLER Plastic pipe, LDPE, black, Hose Ø 22x17.7, Roller length 50 m](/web/image/product.template/207575/image_128/%5B136367%5D%20RIEGLER%20Plastic%20pipe%2C%20LDPE%2C%20black%2C%20Hose%20%C3%98%2022x17.7%2C%20Roller%20length%2050%20m?unique=fb2bdcf)
|
