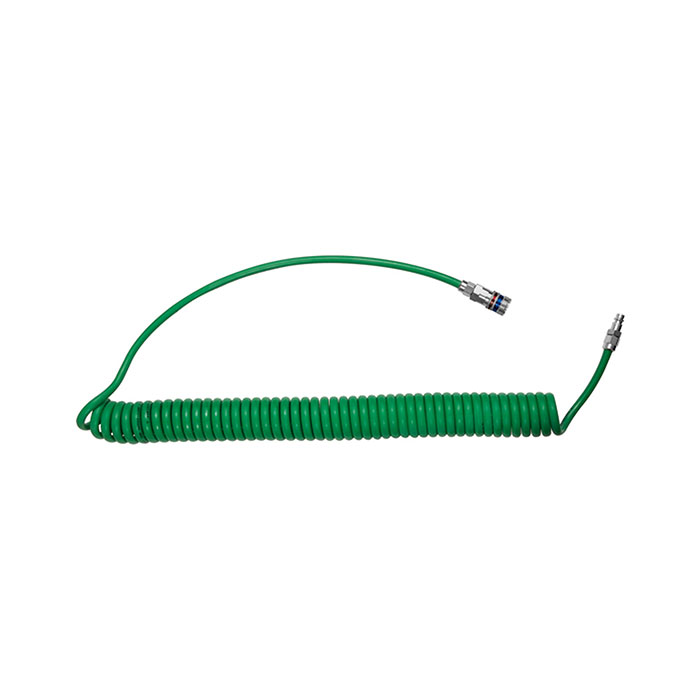

RIEGLER Spiral hose safety coupling set, PUR, Hose Ø 10x6.5, 4.0 m
Type number: SP 245-204
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Spiral hose set made of polyurethane (spiral hose), for compressed air distribution - type SP 245-204
The RIEGLER spiral hose set, spark-erosion-proof, PUR, ø10x6.5, 4 m conducts compressed air flexibly and reliably from the compressor to the consumer. The housing is made of polyurethane (spiral hose). Designed for a maximum operating pressure of 10 bar. Hose Ø 10x6.5 mm. Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Max. operating pressure | 10 bar |
| Material | Polyurethane (spiral hose) |
| Hose Ø | 10x6.5 mm |
| Working length max. | 4 m |
| Spiral-Ø | 52 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
