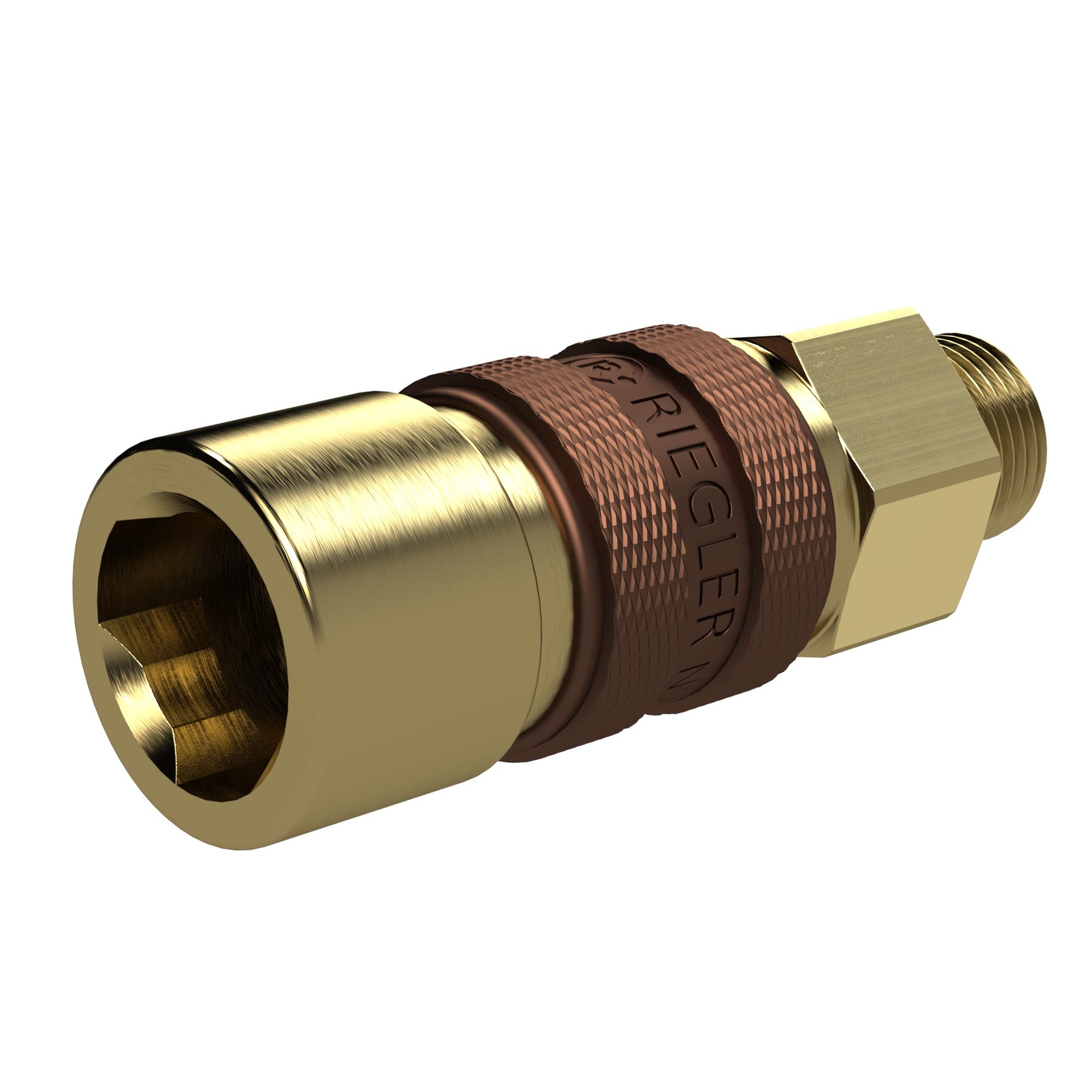

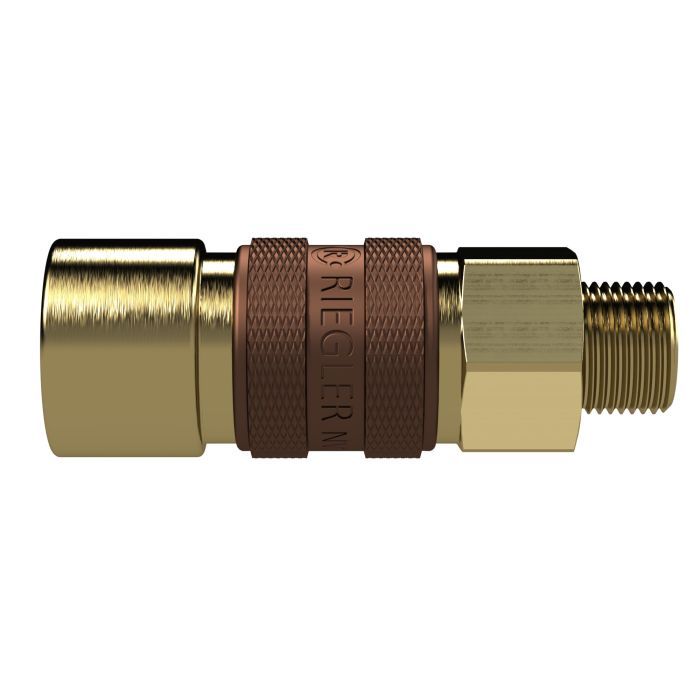

RIEGLER Unmistakable quick-release coupling NW 5, G 1/8 AG, brown
Type number: SVKUNW5AG18BR
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
136981EAN :
4047322752411Category :
Non-Interchangeable Quick-Lock CouplingsWeight :
0.01 kgRIEGLER Unmistakable quick-release coupling made of brass MS58 bright - type SVKUNW5AG18BR
The RIEGLER unmistakable quick-release coupling NW 5, G 1/8 AG, brown prevents confusion thanks to color-coded coupling systems. The housing is made of brass MS58 bright with NBR seals. The permissible medium temperature is between -20 °C and 100 °C. Connection thread G 1/8 AG - suitable for common industry standards. The flow rate is 430 l/min (at 6 bar and Δp = 0.5 bar). Color coding prevents confusion.
Field of application
Typical areas of application: Multi-conductor systems in production and laboratories.
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Valve | Brass MS58 bright |
| Ball | Stainless steel 1.3541 |
| Flow rate | 430 l/min |
| Housing | Brass MS58 bright |
| SW | 14 mm |
| Colour | brown |
| NW | 5 |
| Ambient temperature min. | -20 °C |
| Medium temperature min. | -20 °C |
| Operating pressure | 0 - 35 bar, max. static operating pressure (without pulsation) |
| Ambient temperature max. | 100 °C |
| Medium temperature max. | 100 °C |
| Length | 47 mm |
| L1 | 7 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| Unlocking sleeve | Anodized aluminum |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Snap ring | Stainless steel 1.4310 |
| Spring | Stainless steel 1.4310 |
| Connection | G 1/8 AG |
| Sealing material | NBR |
| Class name | PLUS |
| Theme shop | SAFETY |
