RIEGLER Coaxial valve pneumat. actuated, single-acting NO, FKM, Rp 1/2
Type number: 351.982
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Coaxial valve pneumat. actuated, single-acting, NO, nickel-plated brass, Temp. -20°C to 150°C, Control pressure 4.2-8 bar, Rp 1/2
| Housing | Nickel-plated brass |
| Sealing material | FKM |
| Max. operating pressure | 10 bar |
| Installation position | any |
| Interior parts | Nickel-plated brass |
| Control pressure min. | 4.2 bar |
| Control pressure max. | 8 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Spring | Stainless steel |
| Thread | Rp 1/2 |
| DN | 15 |
| L | 112 mm |
| H | 51.7 mm |
| Execution | single-acting - spring-opening |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | NAMUR interface, direct: 2 x G 1/8 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

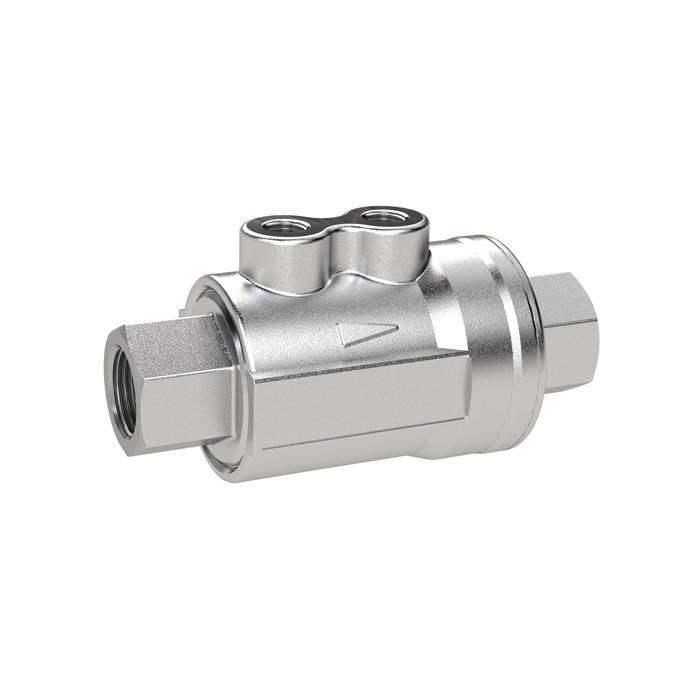

![[146465] RIEGLER Coaxial valve, pneumatically operated, single-acting NO, MS vern. FKM, Rp 1/2](/web/image/product.template/275923/image_128/%5B146465%5D%20RIEGLER%20Coaxial%20valve%2C%20pneumatically%20operated%2C%20single-acting%20NO%2C%20MS%20vern.%20FKM%2C%20Rp%201-2?unique=aa9f679)
|
