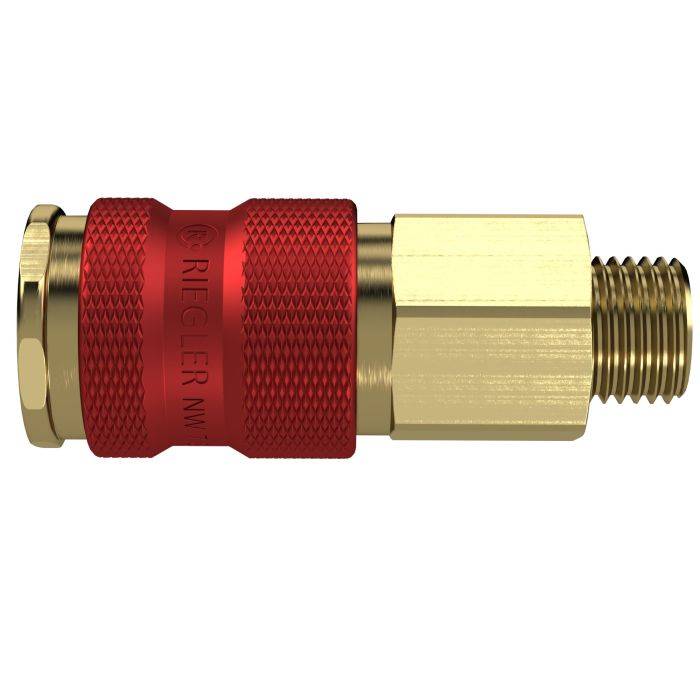

RIEGLER Unmistakable quick-release coupling NW 7,8, G 3/8 AG, red
Type number: SVKUNW78AG38R
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
137553EAN :
4047322752824Category :
Non-Interchangeable Quick-Lock CouplingsWeight :
0.08 kgCaptive quick-connect coupling I.D. 7.8, bright brass, G 3/8 ET, red, max. 35 bar, Medium/ambiant temperature -20 °C to 100 °C
| Connection | G 3/8 AG |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.04 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Exception | 6c |
| Operating pressure | 0 - 35 bar, max. static operating pressure (without pulsation) |
| CAS No. SVHC 1 | 7439-92-1 |
| Sealing material | NBR |
| Flow rate | 2000 l/min |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Unlocking sleeve | Anodized aluminum |
| Colour | red |
| Spring | Stainless steel 1.4310 |
| Housing | Brass MS58 bright |
| Class name | PLUS |
| Ball | Stainless steel 1.4034 |
| L1 | 12 mm |
| Length | 62.5 mm |
| Material identification | CW614N |
| Medium temperature max. | 100 °C |
| Medium temperature min. | -20 °C |
| NW | 78 |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Snap ring | Stainless steel 1.4310 |
| SW | 19 mm |
| Ambient temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Valve | Brass MS58 bright |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

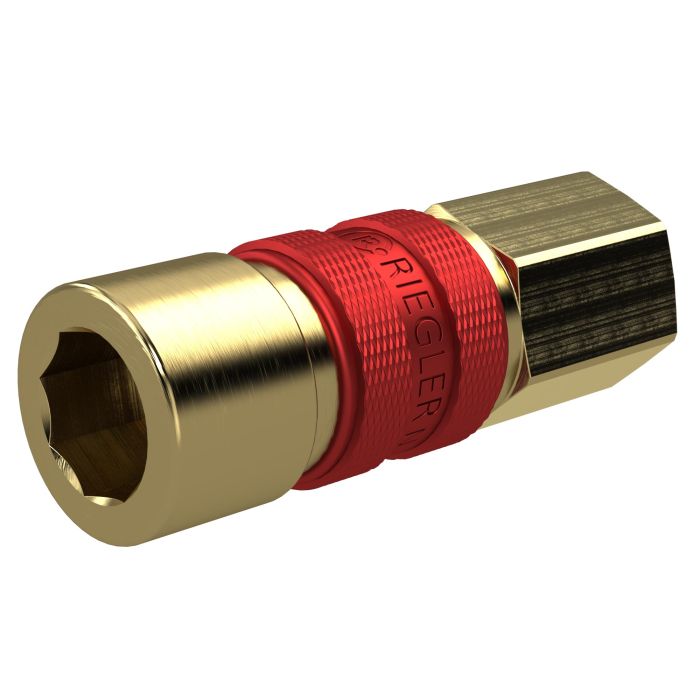

![[136994] RIEGLER Unmistakable quick-release coupling NW 5, G 1/4 IG, red](/web/image/product.template/267873/image_128/%5B136994%5D%20RIEGLER%20Unmistakable%20quick-release%20coupling%20NW%205%2C%20G%201-4%20IG%2C%20red?unique=d3331ae)
|
Type number: SVKUNW5IG14R |
18.33 € | |

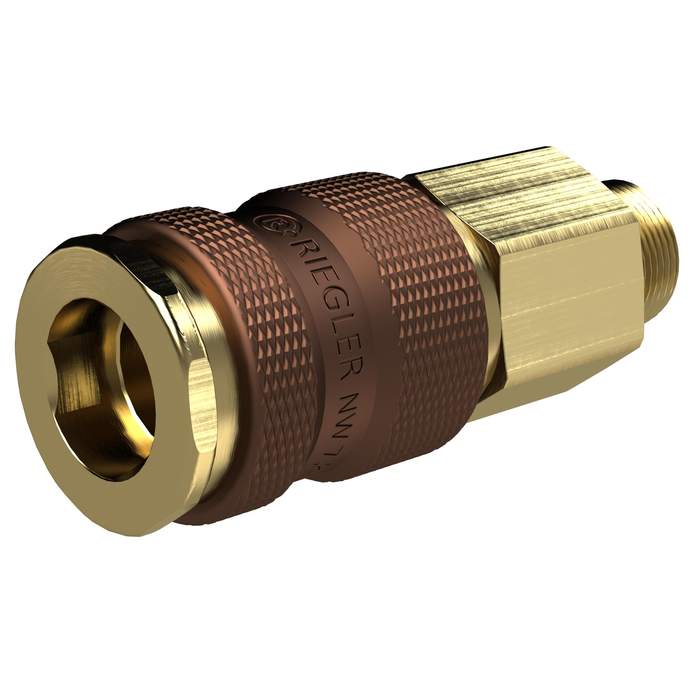

![[137433] RIEGLER Unmistakable quick-release coupling NW 7,8, G 1/4 AG brown](/web/image/product.template/267969/image_128/%5B137433%5D%20RIEGLER%20Unmistakable%20quick-release%20coupling%20NW%207%2C8%2C%20G%201-4%20AG%20brown?unique=9d894ae)
|
Type number: SVKUNW78AG14BR |
29.56 € | |
![[137313] RIEGLER Unmistakable quick-release coupling NW 7,8, G 1/4 AG, green](/web/image/product.template/267967/image_128/%5B137313%5D%20RIEGLER%20Unmistakable%20quick-release%20coupling%20NW%207%2C8%2C%20G%201-4%20AG%2C%20green?unique=eaf2bd0)
|
Type number: SVKUNW78AG14G |
29.56 € | |

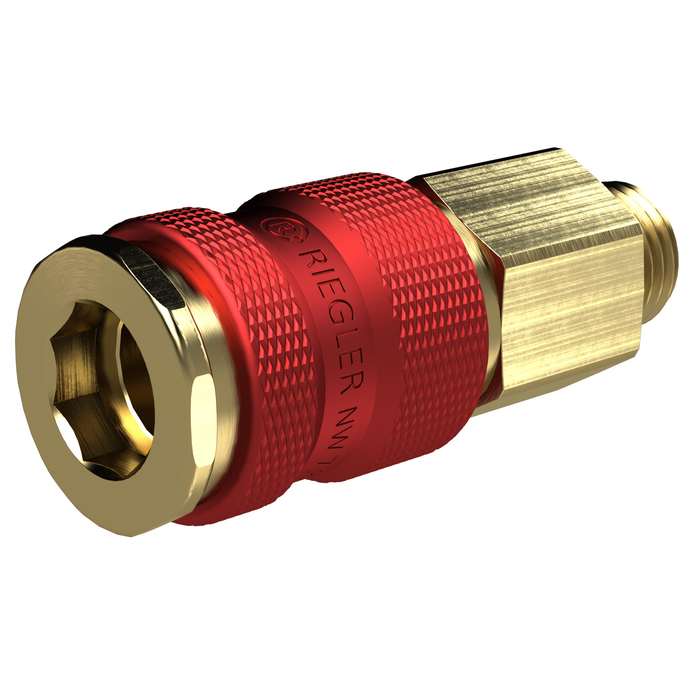

![[137552] RIEGLER Unmistakable quick-release coupling NW 7,8, G 1/4 AG, red](/web/image/product.template/267971/image_128/%5B137552%5D%20RIEGLER%20Unmistakable%20quick-release%20coupling%20NW%207%2C8%2C%20G%201-4%20AG%2C%20red?unique=b25dcf1)
|
Type number: SVKUNW78AG14R |
29.56 € | |

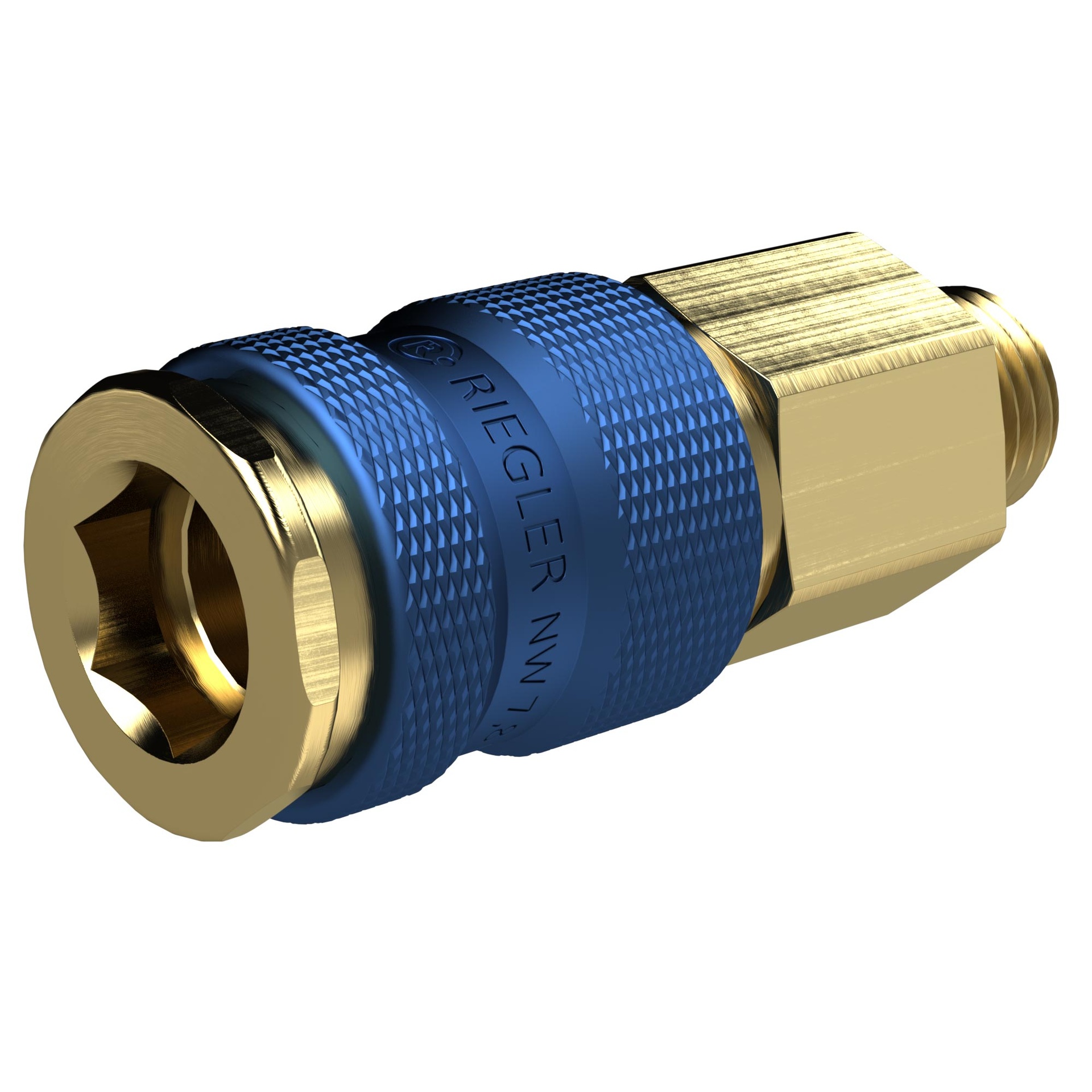

![[137551] RIEGLER Unmistakable quick-release coupling NW 7,8, G 3/8 AG, blue](/web/image/product.template/267970/image_128/%5B137551%5D%20RIEGLER%20Unmistakable%20quick-release%20coupling%20NW%207%2C8%2C%20G%203-8%20AG%2C%20blue?unique=0759142)
|
Type number: SVKUNW78AG38BL |
29.56 € | |

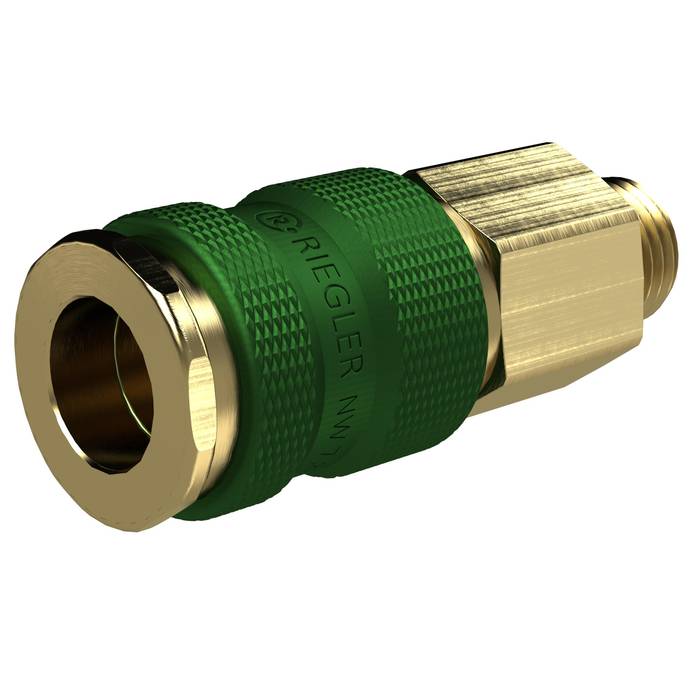

![[137396] RIEGLER Unmistakable quick-release coupling NW 7,8, G 3/8 AG, green](/web/image/product.template/267968/image_128/%5B137396%5D%20RIEGLER%20Unmistakable%20quick-release%20coupling%20NW%207%2C8%2C%20G%203-8%20AG%2C%20green?unique=173bd42)
|
