RIEGLER Unmistakable quick-release coupling NW 7,8, G 3/8 IG, blue
Type number: SVKUNW78IG38BL
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
137559EAN :
4047322752886Category :
Non-Interchangeable Quick-Lock CouplingsWeight :
0.08 kgRIEGLER Unmistakable quick-release coupling made of brass MS58 bright - type SVKUNW78IG38BL
The RIEGLER unmistakable quick-release coupling NW 7.8, G 3/8 female, blue prevents confusion thanks to color-coded coupling systems. The housing is made of brass MS58 bright with NBR seals. The permissible medium temperature is between -20 °C and 100 °C. Connection thread G 3/8 IG - suitable for common industry standards. The flow rate is 2000 l/min (at 6 bar and Δp = 0.5 bar). Color coding prevents confusion.
Field of application
Typical areas of application: Multi-conductor systems in production and laboratories.
| Connection | G 3/8 IG |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.04 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Exception | 6c |
| Operating pressure | 0 - 35 bar, max. static operating pressure (without pulsation) |
| CAS No. SVHC 1 | 7439-92-1 |
| Sealing material | NBR |
| Flow rate | 2000 l/min |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Unlocking sleeve | Anodized aluminum |
| Colour | blue |
| Spring | Stainless steel 1.4310 |
| Housing | Brass MS58 bright |
| Class name | PLUS |
| Ball | Stainless steel 1.4034 |
| L1 | 10 mm |
| Length | 59.5 mm |
| Material identification | CW614N |
| Medium temperature max. | 100 °C |
| Medium temperature min. | -20 °C |
| NW | 78 |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Snap ring | Stainless steel 1.4310 |
| SW | 19 mm |
| Ambient temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Valve | Brass MS58 bright |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[137558] RIEGLER Unmistakable quick-release coupling NW 7,8, G 1/4 IG, blue](/web/image/product.template/267976/image_128/%5B137558%5D%20RIEGLER%20Unmistakable%20quick-release%20coupling%20NW%207%2C8%2C%20G%201-4%20IG%2C%20blue?unique=7a81df9)
|
Type number: SVKUNW78IG14BL |
29.56 € | |
![[137556] RIEGLER Unmistakable quick-release coupling NW 7,8, G 1/4 IG brown](/web/image/product.template/267974/image_128/%5B137556%5D%20RIEGLER%20Unmistakable%20quick-release%20coupling%20NW%207%2C8%2C%20G%201-4%20IG%20brown?unique=15aed5d)
|
Type number: SVKUNW78IG14BR |
29.56 € | |
![[137554] RIEGLER Unmistakable quick-release coupling NW 7.8, G 1/4 IG, green](/web/image/product.template/283938/image_128/%5B137554%5D%20RIEGLER%20Unmistakable%20quick-release%20coupling%20NW%207.8%2C%20G%201-4%20IG%2C%20green?unique=841a4f1)
|
Type number: SVKUNW78IG14G |
29.56 € | |
![[137560] RIEGLER Unmistakable quick-release coupling NW 7,8, G 1/4 IG, red](/web/image/product.template/267978/image_128/%5B137560%5D%20RIEGLER%20Unmistakable%20quick-release%20coupling%20NW%207%2C8%2C%20G%201-4%20IG%2C%20red?unique=4046daa)
|
Type number: SVKUNW78IG14R |
29.56 € | |

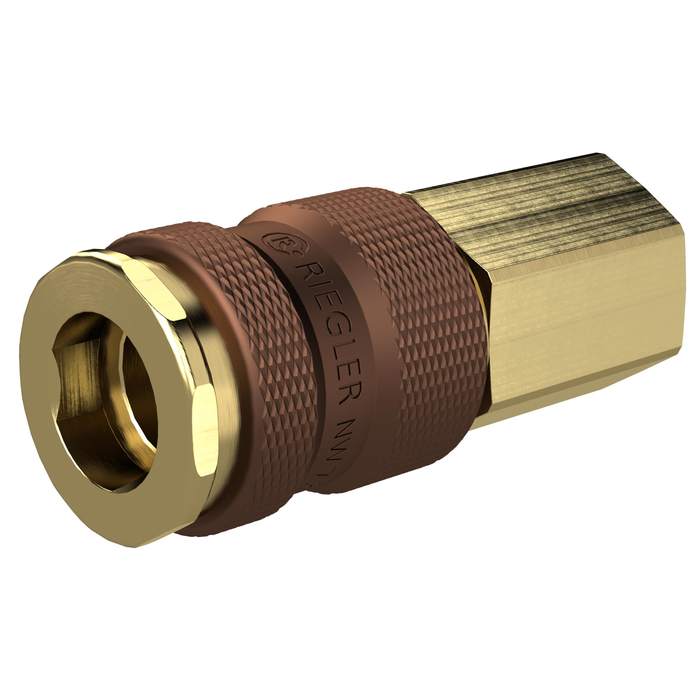

![[137557] RIEGLER Unmistakable quick-release coupling NW 7,8, G 3/8 IG brown](/web/image/product.template/267975/image_128/%5B137557%5D%20RIEGLER%20Unmistakable%20quick-release%20coupling%20NW%207%2C8%2C%20G%203-8%20IG%20brown?unique=d06ceb8)
|
Type number: SVKUNW78IG38BR |
29.56 € | |

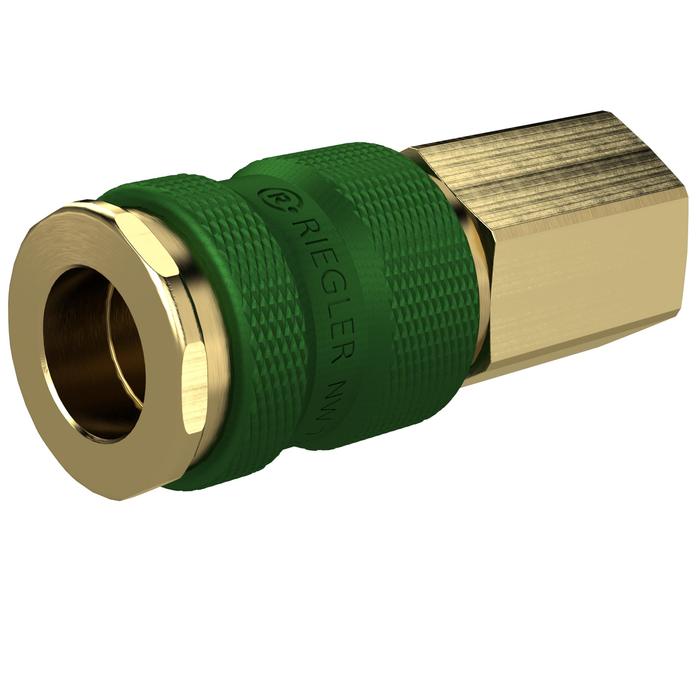

![[137555] RIEGLER Unmistakable quick-release coupling NW 7,8, G 3/8 IG, green](/web/image/product.template/267973/image_128/%5B137555%5D%20RIEGLER%20Unmistakable%20quick-release%20coupling%20NW%207%2C8%2C%20G%203-8%20IG%2C%20green?unique=67dc3eb)
|
Type number: SVKUNW78IG38G |
29.56 € | |

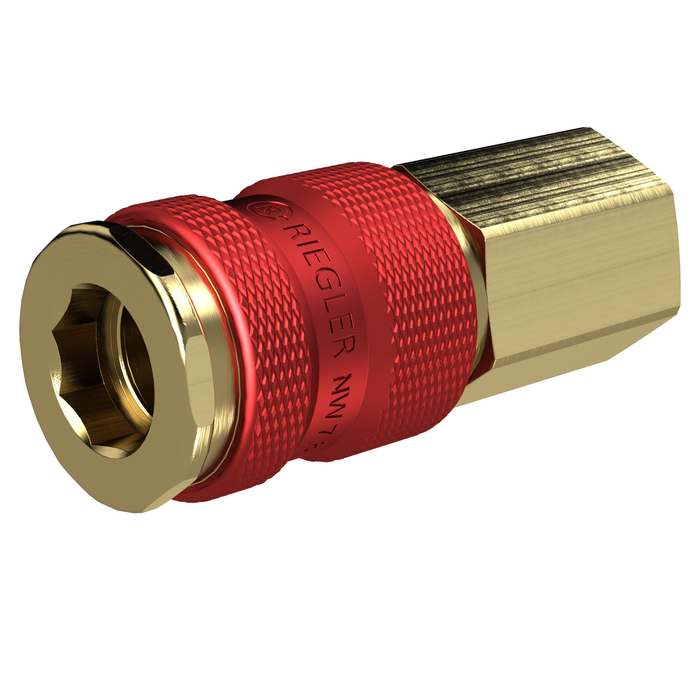

![[137561] RIEGLER Unmistakable quick-release coupling NW 7,8, G 3/8 IG, red](/web/image/product.template/267979/image_128/%5B137561%5D%20RIEGLER%20Unmistakable%20quick-release%20coupling%20NW%207%2C8%2C%20G%203-8%20IG%2C%20red?unique=7b1f9b9)
|
