RIEGLER Hexagonal coupling nut, G 3/8 left, for sleeve size I.D. 4/6/9

Price:

1.37 €

English (US)
  2. Shop
  3. Hose nozzles & union nuts
  4. RIEGLER Hexagonal coupling nut, G 3/8 left, for sleeve size I.D. 4/6/9
RIEGLER Hose sleeve, ball nipple, for hose I.D. 6, nickel-plated brass
RIEGLER Hose sleeve, ball nipple, for hose I.D. 6, nickel-plated brass
0.80 € 0.80 €
RIEGLER Hexagonal coupling nut, G 3/8, for sleeve size I.D. 4/6/9
RIEGLER Hexagonal coupling nut, G 3/8, for sleeve size I.D. 4/6/9
4.72 € 4.72 €

RIEGLER Hexagonal coupling nut, G 3/8 left, for sleeve size I.D. 4/6/9

https://www.filcom-technik.de/web/image/product.template/207888/image_1920?unique=7741d45

Type number: MS234LH38469

1.37 € 1.37 EUR 1.37 € VAT Included

2.15 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

137631

EAN :

4047322516099

Category :

Hose nozzles & union nuts

Weight :

0.00 kg

RIEGLER Hexagon union nut made of brass CW614N, for pneumatic installation, max. 25 bar - type MS234LH38469

The RIEGLER hexagon union nut G 3/8 left, f. Grommet size LW 4/6/9, MS is a high-quality accessory from the RIEGLER range. The housing is made of brass CW614N. Designed for a maximum operating pressure of 25 bar. Connection thread G 3/8 left - suitable for common industry standards. Perfect fit for RIEGLER products - easy installation.

Field of application

Typical areas of application: Maintenance, servicing and expansion of compressed air components.

Working pressure max. 25 bar
Material Brass CW614N
Operating temperature max. 150 °C
Thread G 3/8 left
SW 19 mm
for grommet types no. MS2363804 + MS2363806 + MS2363809
L1 15 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW614N
Class name PLUS

Variants / Alternatives

Product Price

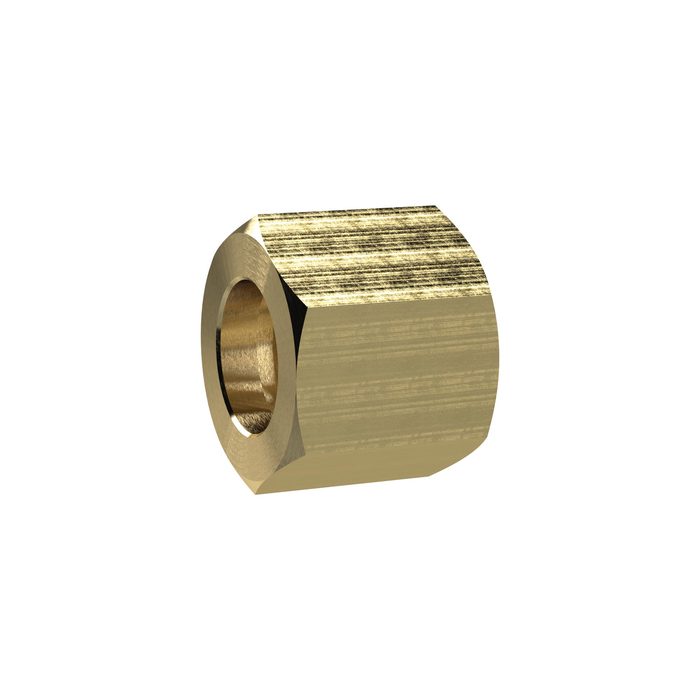

[137632] RIEGLER Hexagonal coupling nut, G 1/2 left, for sleeve size I.D. 13
