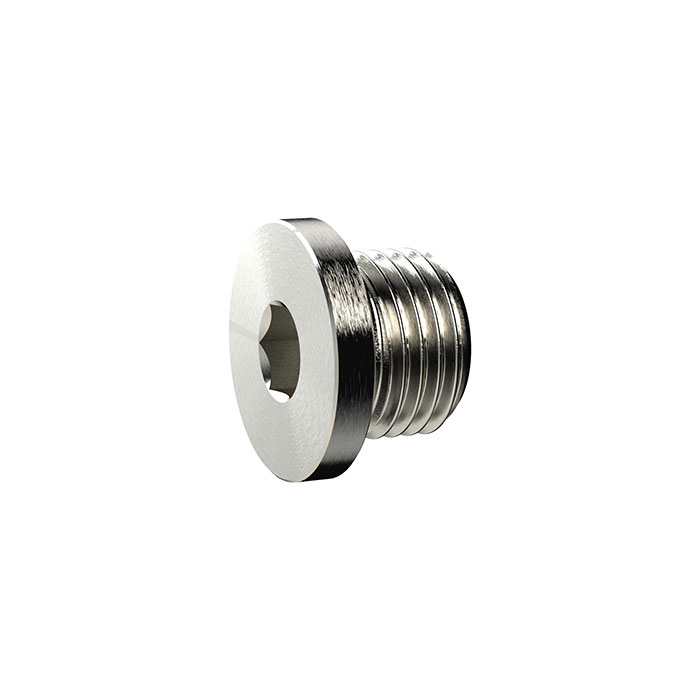

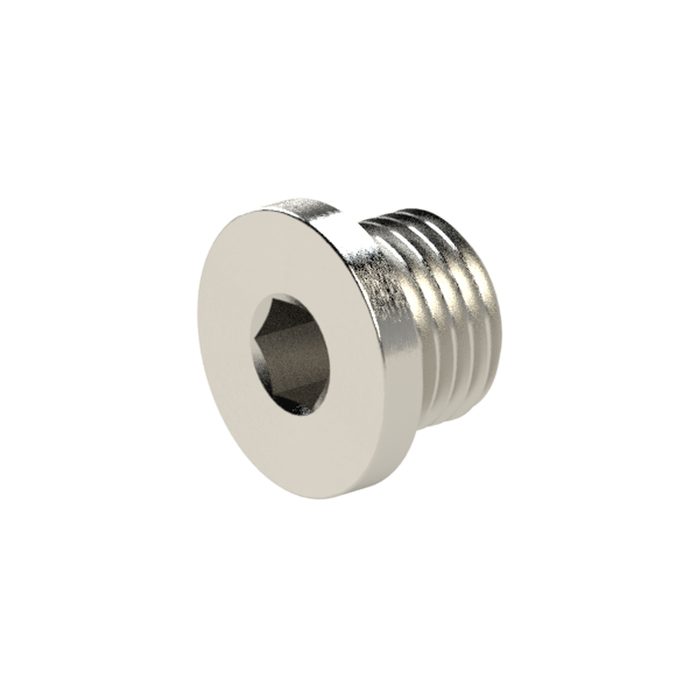

RIEGLER Locking screw, Hexagonal socket and flange, G 1
Type number: MSN290MS1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Verschlussschraube, Innensechskant und Bund, G 1, SW 17, Messing vernickelt, Arbeitsdruck max. 25 bar, Betriebstemp. max. 150 °C
| Working pressure max. | 25 bar |
| Material | Nickel-plated brass CW614N (electroplated nickel-plated) |
| Operating temperature max. | 150 °C |
| Thread | G 1 hexagon socket |
| SW | 17 mm |
| L1 | 18 mm |
| L2 | 13 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[136438] RIEGLER Locking screw, Hexagonal socket and flange, G 1 1/2, AF 24](/web/image/product.template/207577/image_128/%5B136438%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%20and%20flange%2C%20G%201%201-2%2C%20AF%2024?unique=83bc0a7)
|
Type number: MSN290MS112 |
10.94 € | |
![[136437] RIEGLER Locking screw, Hexagonal socket and flange, G 1 1/4, AF 22](/web/image/product.template/207576/image_128/%5B136437%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%20and%20flange%2C%20G%201%201-4%2C%20AF%2022?unique=eebcc83)
|
Type number: MSN290MS114 |
8.84 € | |
![[137913] RIEGLER Locking screw, Hexagonal socket and flange, G 1/2](/web/image/product.template/207908/image_128/%5B137913%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%20and%20flange%2C%20G%201-2?unique=cfa7efc)
|
Type number: MSN290MS12 |
1.15 € | |
![[137911] RIEGLER Locking screw, Hexagonal socket and flange, G 1/4](/web/image/product.template/207906/image_128/%5B137911%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%20and%20flange%2C%20G%201-4?unique=e21e9e4)
|
Type number: MSN290MS14 |
0.56 € | |
![[137910] RIEGLER Locking screw, Hexagonal socket and flange, G 1/8](/web/image/product.template/207905/image_128/%5B137910%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%20and%20flange%2C%20G%201-8?unique=9c390b3)
|
Type number: MSN290MS18 |
0.39 € | |
![[136439] RIEGLER Locking screw, Hexagonal socket and flange, G 2, AF 27](/web/image/product.template/207578/image_128/%5B136439%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%20and%20flange%2C%20G%202%2C%20AF%2027?unique=c8db0a8)
|
Type number: MSN290MS2 |
21.57 € | |
![[137914] RIEGLER Locking screw, Hexagonal socket and flange, G 3/4](/web/image/product.template/207909/image_128/%5B137914%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%20and%20flange%2C%20G%203-4?unique=40724a3)
|
Type number: MSN290MS34 |
2.11 € | |
![[137912] RIEGLER Locking screw, Hexagonal socket and flange, G 3/8](/web/image/product.template/207907/image_128/%5B137912%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%20and%20flange%2C%20G%203-8?unique=0b5b541)
|
Type number: MSN290MS38 |
0.70 € | |
