RIEGLER Locking screw, Hexagonal socket, without flange, R 3/8
Type number: MSN290ROB38
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Screw plug made of nickel-plated brass CW614N (electroplated nickel) - type MSN290ROB38
The RIEGLER screw plug, hexagon socket, without collar, R 3/8, MS nickel-plated is a high-quality accessory from the RIEGLER range. The housing is made of nickel-plated brass CW614N (galvanized nickel-plated). Designed for a maximum operating pressure of 25 bar. Connection thread R 3/8 hexagon socket - suitable for common industry standards. Perfect fit for RIEGLER products - easy installation.
Field of application
Typical areas of application: Maintenance, servicing and expansion of compressed air components.
| Working pressure max. | 25 bar |
| Material | Nickel-plated brass CW614N (electroplated nickel-plated) |
| Operating temperature max. | 150 °C |
| Thread | R 3/8 hexagon socket |
| SW | 8 mm |
| L1 | 10 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[136454] RIEGLER Locking screw, Hexagonal socket, without flange, R 1](/web/image/product.template/207593/image_128/%5B136454%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20without%20flange%2C%20R%201?unique=b4f27b8)
|
Type number: MSN290ROB1 |
5.71 € | |
![[136456] RIEGLER Locking screw, Hexagonal socket, without flange, R 1 1/2](/web/image/product.template/207595/image_128/%5B136456%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20without%20flange%2C%20R%201%201-2?unique=d416e37)
|
Type number: MSN290ROB112 |
15.03 € | |
![[136455] RIEGLER Locking screw, Hexagonal socket, without flange, R 1 1/4](/web/image/product.template/207594/image_128/%5B136455%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20without%20flange%2C%20R%201%201-4?unique=3c322da)
|
Type number: MSN290ROB114 |
10.41 € | |
![[137941] RIEGLER Locking screw, Hexagonal socket, without flange, R 1/2](/web/image/product.template/207914/image_128/%5B137941%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20without%20flange%2C%20R%201-2?unique=0663a49)
|
Type number: MSN290ROB12 |
1.09 € | |
![[137939] RIEGLER Locking screw, Hexagonal socket, without flange, R 1/4](/web/image/product.template/207912/image_128/%5B137939%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20without%20flange%2C%20R%201-4?unique=5bd49d7)
|
Type number: MSN290ROB14 |
0.54 € | |

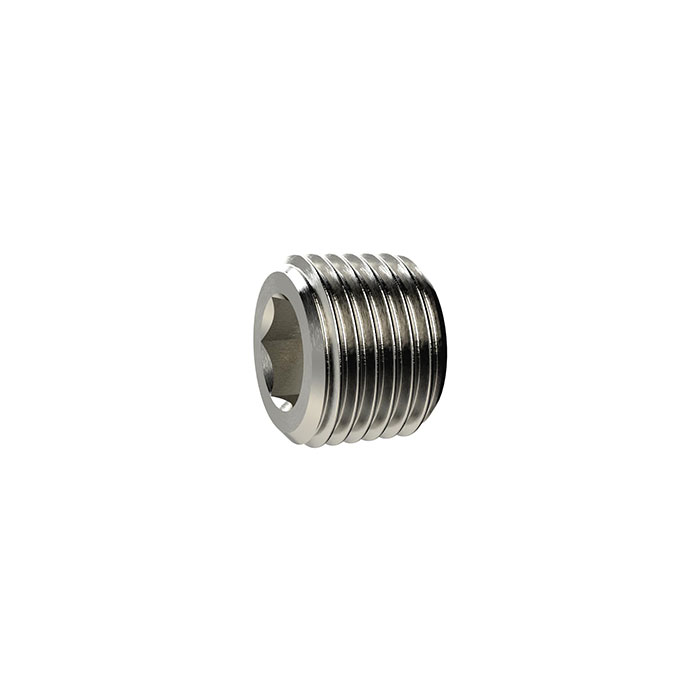

![[137938] RIEGLER Locking screw, Hexagonal socket, without flange, R 1/8](/web/image/product.template/207911/image_128/%5B137938%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20without%20flange%2C%20R%201-8?unique=29ee10e)
|
