RIEGLER End piece for pipe connection, for pipe exterior Ø 18 mm, POM
Type number: 80.018
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER End piece for "speedfit" pipe connection made of POM, max. 10 bar - Type 80.018
The RIEGLER end piece for pipe connection "speedfit", f. pipe outer ø 18 mm, POM forms the fixed pipe network for compressed air distribution. The housing is made of POM. The operating pressure range is -0.95 bar to 10 bar. Durable and low-leakage.
Field of application
Typical areas of application: Stationary compressed air distribution.
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | POM |
| Length | 33.3 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| for pipe outer Ø | 18 mm |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[114062] RIEGLER End piece for pipe connection, for pipe exterior Ø 12 mm, POM](/web/image/product.template/190344/image_128/%5B114062%5D%20RIEGLER%20End%20piece%20for%20pipe%20connection%2C%20for%20pipe%20exterior%20%C3%98%2012%20mm%2C%20POM?unique=912d5aa)
|
Type number: 80.012 |
3.18 € | |

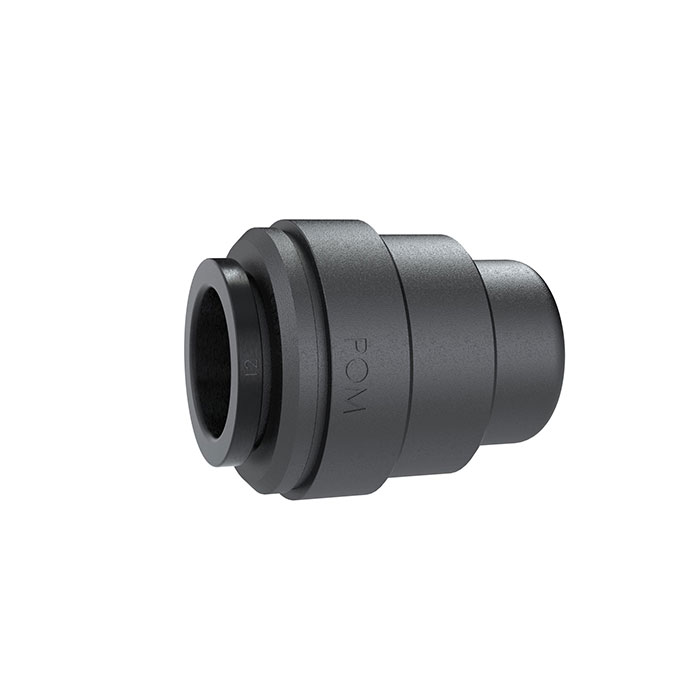

![[114063] RIEGLER End piece for pipe connection, for pipe exterior Ø 15 mm, POM](/web/image/product.template/190346/image_128/%5B114063%5D%20RIEGLER%20End%20piece%20for%20pipe%20connection%2C%20for%20pipe%20exterior%20%C3%98%2015%20mm%2C%20POM?unique=06c1e91)
|
Type number: 80.015 |
3.22 € | |
![[114064] RIEGLER End piece for pipe connection, for pipe exterior Ø 22 mm, POM](/web/image/product.template/190347/image_128/%5B114064%5D%20RIEGLER%20End%20piece%20for%20pipe%20connection%2C%20for%20pipe%20exterior%20%C3%98%2022%20mm%2C%20POM?unique=e7dc0e3)
|
Type number: 80.022 |
3.53 € | |
