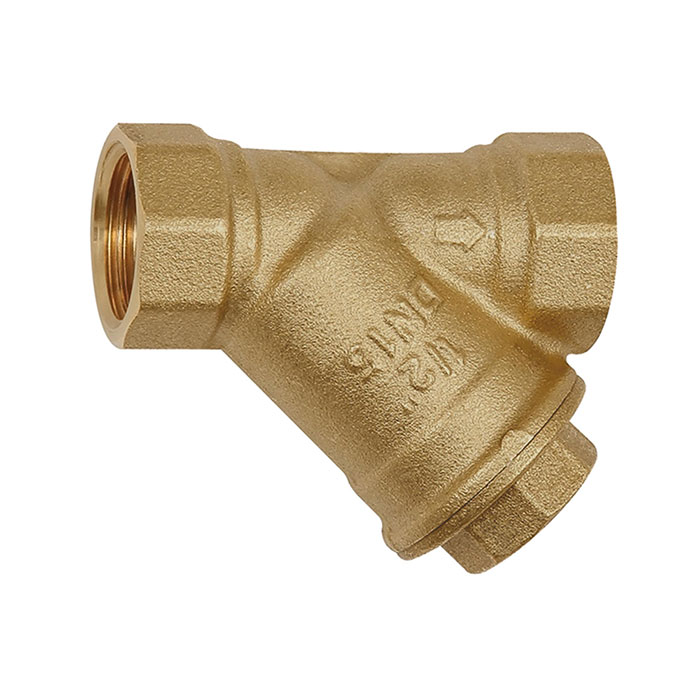

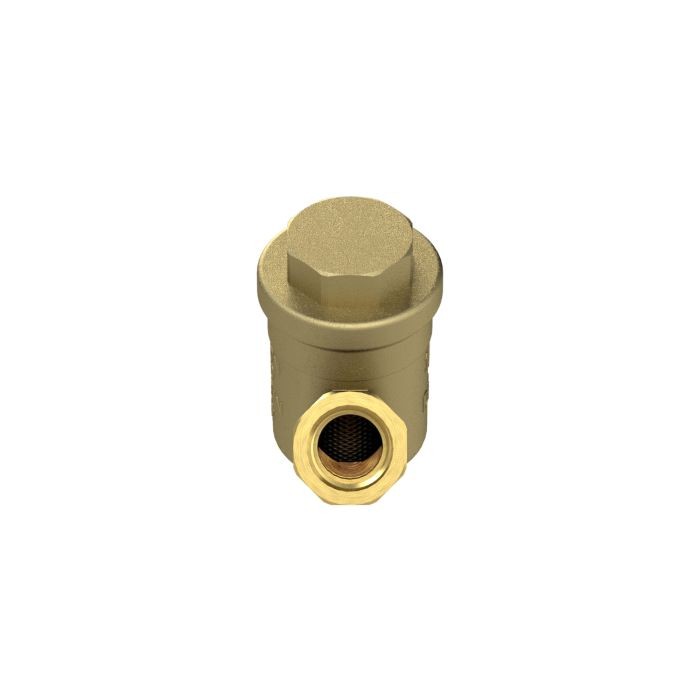

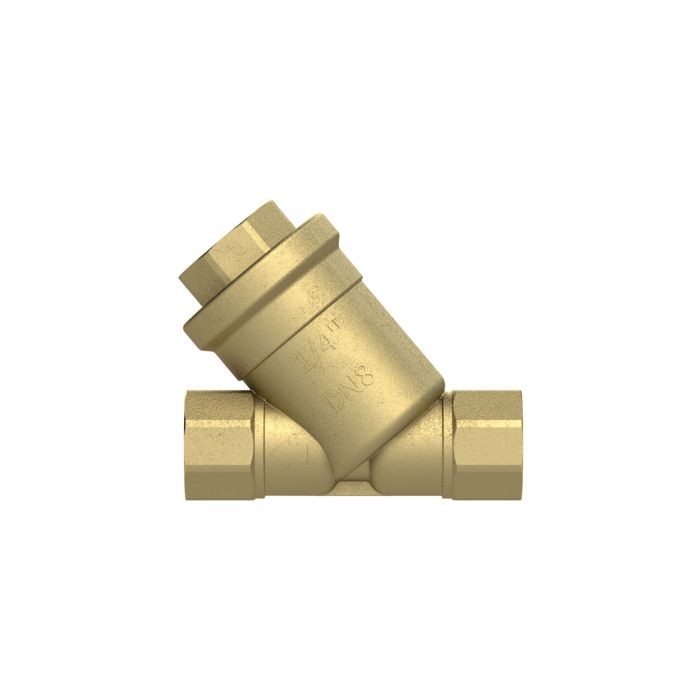

RIEGLER Dirt strainer, bright brass, G 2 1/2, DN 65, mesh width 0.8 mm
Type number: 60-9 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Strainer made of bare brass, for industrial systems, max. 16 bar - Type 60-9 M
The RIEGLER strainer, bare brass, G 2 1/2, DN 65, MW 0.8 mm traps impurities in pipes and protects fittings. The housing is made of bare brass with NBR O-ring seals. Designed for a maximum operating pressure of 16 bar. The operating temperature is between -20 °C and 110 °C. Connection thread G 2 1/2 (G thread to ISO 228-1, tolerance class B) - suitable for common industry standards. Protection of downstream fittings.
Field of application
Typical areas of application: Piping systems.
| Housing | Brass bright |
| Sealing material | NBR O-ring |
| Max. operating pressure | 16 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 110 °C |
| Head piece | Brass bright |
| Sieve insert | Stainless steel |
| Thread | G 2 1/2 |
| DN | 65 |

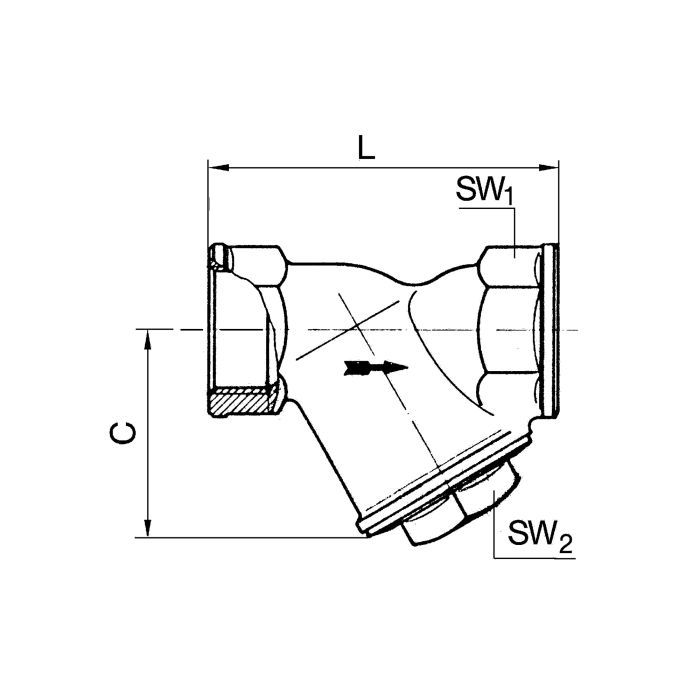

| SW 1 | 85 mm |
| SW 2 | 48 mm |
| Thread standard | G-thread to ISO 228-1, tolerance class B |
| Mesh size | 0.8 mm |
| C | 105 mm |
| L | 150 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[105694] RIEGLER Dirt strainer, bright brass, G 1 1/2, DN 40, mesh width 0.5 mm](/web/image/product.template/173641/image_128/%5B105694%5D%20RIEGLER%20Dirt%20strainer%2C%20bright%20brass%2C%20G%201%201-2%2C%20DN%2040%2C%20mesh%20width%200.5%20mm?unique=6e50a08)
|
Type number: 60-7 M |
33.14 € | |
![[105693] RIEGLER Dirt strainer, bright brass, G 1 1/4, DN 32, mesh width 0.5 mm](/web/image/product.template/173640/image_128/%5B105693%5D%20RIEGLER%20Dirt%20strainer%2C%20bright%20brass%2C%20G%201%201-4%2C%20DN%2032%2C%20mesh%20width%200.5%20mm?unique=bb98d3b)
|
Type number: 60-6 M |
24.95 € | |
![[105690] RIEGLER Dirt strainer, bright brass, G 1/2, DN 15, mesh width 0.5 mm](/web/image/product.template/173637/image_128/%5B105690%5D%20RIEGLER%20Dirt%20strainer%2C%20bright%20brass%2C%20G%201-2%2C%20DN%2015%2C%20mesh%20width%200.5%20mm?unique=28d18c2)
|
Type number: 60-3 M |
6.10 € | |
![[105688] RIEGLER Dirt strainer, bright brass, G 1/4, DN 8, mesh width 0.5 mm](/web/image/product.template/173635/image_128/%5B105688%5D%20RIEGLER%20Dirt%20strainer%2C%20bright%20brass%2C%20G%201-4%2C%20DN%208%2C%20mesh%20width%200.5%20mm?unique=725b09d)
|
Type number: 60-1 M |
6.08 € | |
![[105692] RIEGLER Dirt strainer, bright brass, G 1, DN 25, mesh width 0.5 mm](/web/image/product.template/173639/image_128/%5B105692%5D%20RIEGLER%20Dirt%20strainer%2C%20bright%20brass%2C%20G%201%2C%20DN%2025%2C%20mesh%20width%200.5%20mm?unique=1c70ff3)
|
Type number: 60-5 M |
16.08 € | |
![[105695] RIEGLER Dirt strainer, bright brass, G 2, DN 50, mesh width 0.5 mm](/web/image/product.template/173642/image_128/%5B105695%5D%20RIEGLER%20Dirt%20strainer%2C%20bright%20brass%2C%20G%202%2C%20DN%2050%2C%20mesh%20width%200.5%20mm?unique=c07593e)
|
Type number: 60-8 M |
54.20 € | |
![[105691] RIEGLER Dirt strainer, bright brass, G 3/4, DN 20, mesh width 0.5 mm](/web/image/product.template/173638/image_128/%5B105691%5D%20RIEGLER%20Dirt%20strainer%2C%20bright%20brass%2C%20G%203-4%2C%20DN%2020%2C%20mesh%20width%200.5%20mm?unique=915ff0b)
|
Type number: 60-4 M |
10.28 € | |
![[105689] RIEGLER Dirt strainer, bright brass, G 3/8, DN 10, mesh width 0.5 mm](/web/image/product.template/173636/image_128/%5B105689%5D%20RIEGLER%20Dirt%20strainer%2C%20bright%20brass%2C%20G%203-8%2C%20DN%2010%2C%20mesh%20width%200.5%20mm?unique=3df032c)
|
Type number: 60-2 M |
6.08 € | |
![[140985] RIEGLER Dirt strainer, bright brass, G 3, DN 80, mesh width 0.8 mm](/web/image/product.template/208053/image_128/%5B140985%5D%20RIEGLER%20Dirt%20strainer%2C%20bright%20brass%2C%20G%203%2C%20DN%2080%2C%20mesh%20width%200.8%20mm?unique=d05da92)
|
Type number: 60-10 M |
132.46 € | |

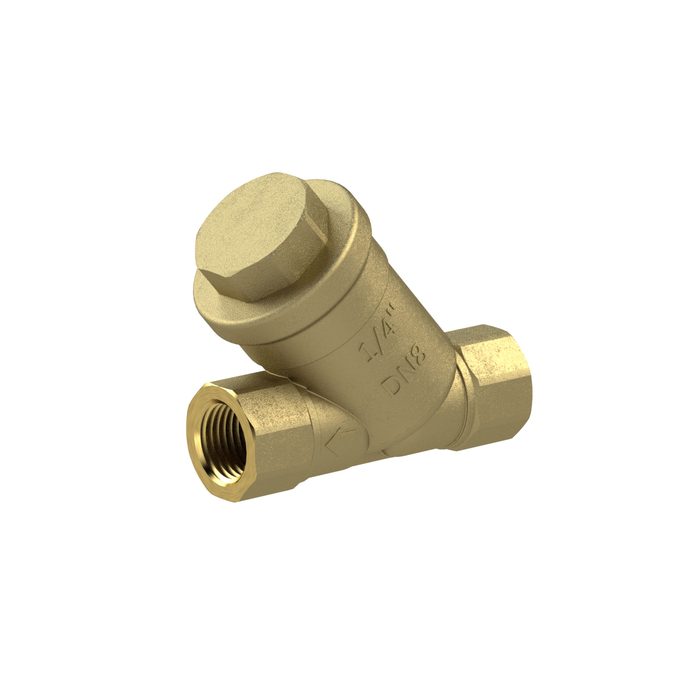

![[126304] RIEGLER Dirt strainer, bright brass, G 4, DN 100, mesh width 0.8 mm](/web/image/product.template/202583/image_128/%5B126304%5D%20RIEGLER%20Dirt%20strainer%2C%20bright%20brass%2C%20G%204%2C%20DN%20100%2C%20mesh%20width%200.8%20mm?unique=c14181f)
|
Type number: 60-11 M |
258.86 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

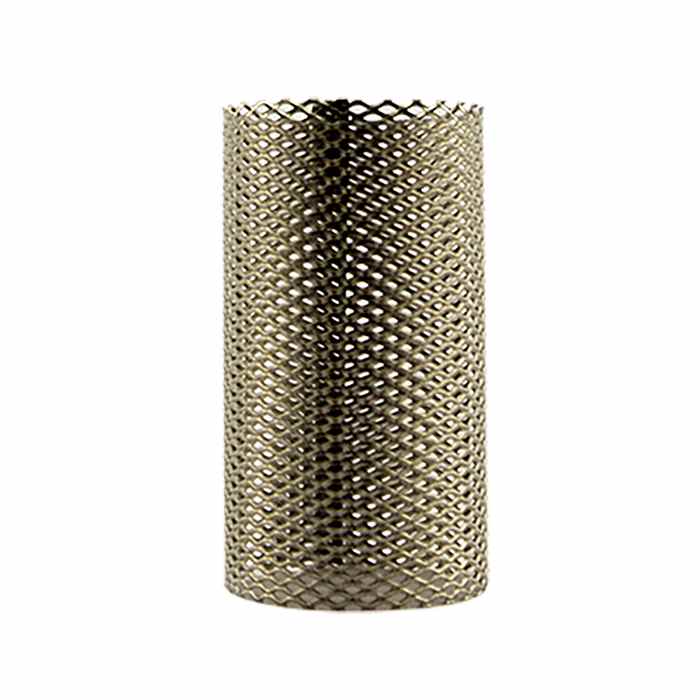

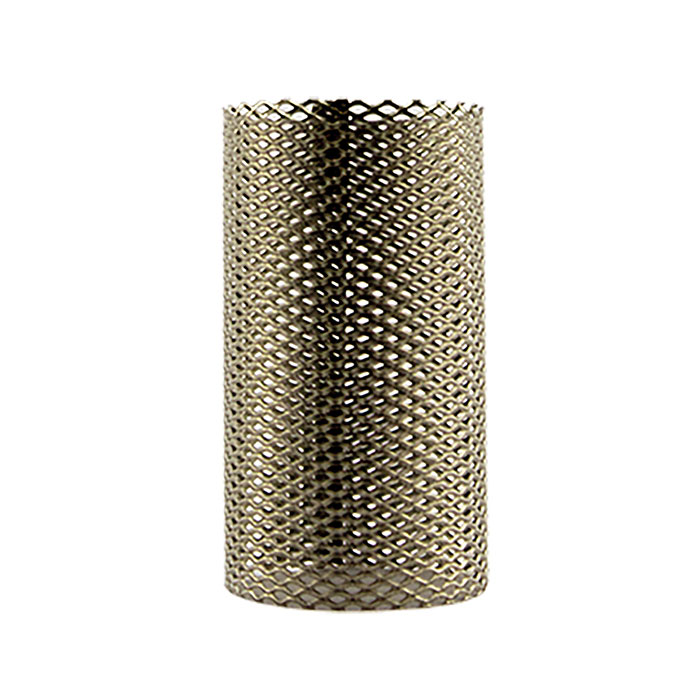

![[141017] RIEGLER Replacement sieve, dirt strainers, size G 2 1/2, mesh width 0.8mm](/web/image/product.template/208085/image_128/%5B141017%5D%20RIEGLER%20Replacement%20sieve%2C%20dirt%20strainers%2C%20size%20G%202%201-2%2C%20mesh%20width%200.8mm?unique=6e5034f)
|
