RIEGLER Strainer nickel-plated brass, G 3/4, DN 20, mesh width 0.3 mm
Type number: 60-4 N-0.3
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Strainer made of nickel-plated brass, for industrial systems, max. 20 bar - Type 60-4 N-0.3
The RIEGLER strainer, nickel-plated brass, G 3/4, DN 20, MW 0.3 mm traps impurities in pipes and protects fittings. The housing is made of nickel-plated brass with NBR O-ring seals. Designed for a maximum operating pressure of 20 bar. The operating temperature is between -20 °C and 110 °C. Connection thread G 3/4 (G thread to ISO 228-1, tolerance class B) - suitable for common industry standards. Protection of downstream fittings.
Field of application
Typical areas of application: Piping systems.
| Housing | Nickel-plated brass |
| Sealing material | NBR O-ring |
| Max. operating pressure | 20 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 110 °C |
| Head piece | Nickel-plated brass |
| Sieve insert | Stainless steel |
| Thread | G 3/4 |
| DN | 20 |

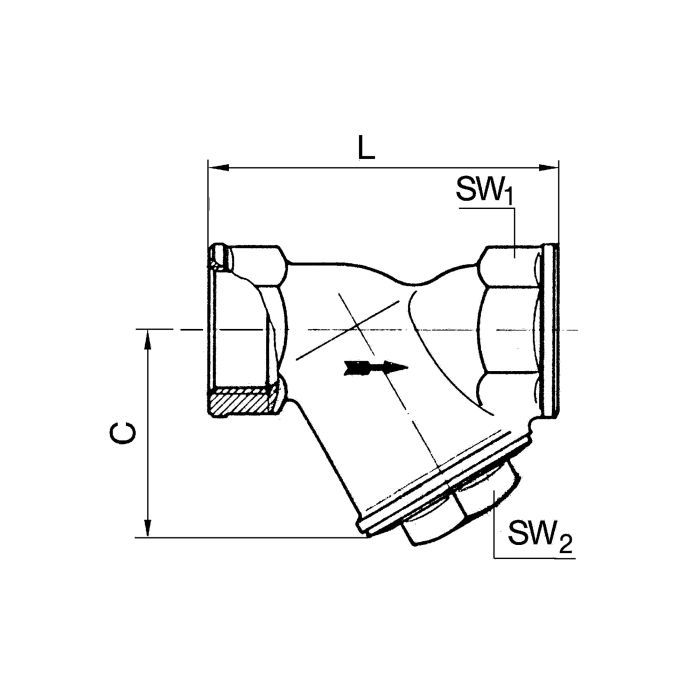

| SW 1 | 31 mm |
| SW 2 | 27 mm |
| Thread standard | G-thread to ISO 228-1, tolerance class B |
| Mesh size | 0.3 mm |
| C | 48 mm |
| L | 70 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141001] RIEGLER Dirt strainer nickel-plated brass, G 1/4, DN 8, mesh width 0.3 mm](/web/image/product.template/208069/image_128/%5B141001%5D%20RIEGLER%20Dirt%20strainer%20nickel-plated%20brass%2C%20G%201-4%2C%20DN%208%2C%20mesh%20width%200.3%20mm?unique=73d23e1)
|
Type number: 60-1 N-0.3 |
8.41 € | |
![[141005] RIEGLER Dirt strainer nickel-plated brass, G 1, DN 25, mesh width 0.3 mm](/web/image/product.template/208073/image_128/%5B141005%5D%20RIEGLER%20Dirt%20strainer%20nickel-plated%20brass%2C%20G%201%2C%20DN%2025%2C%20mesh%20width%200.3%20mm?unique=f8cd5b8)
|
Type number: 60-5 N-0.3 |
21.47 € | |

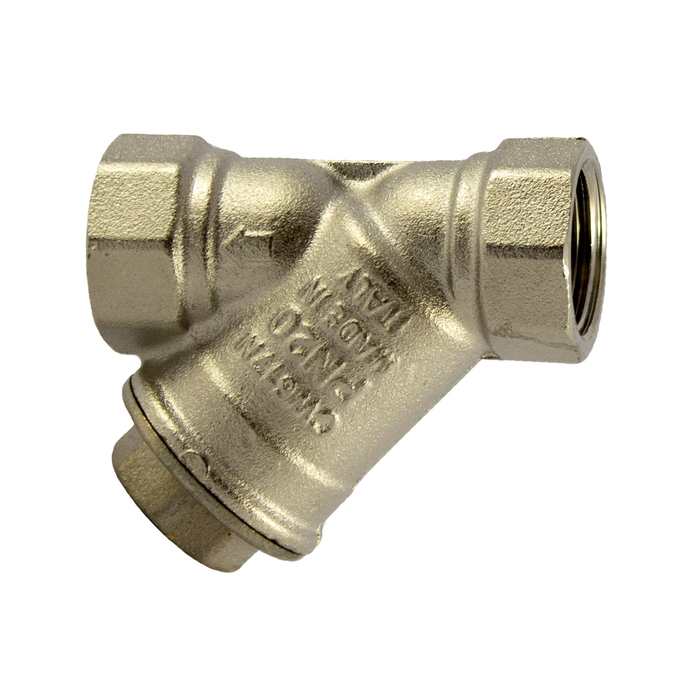

![[141008] RIEGLER Dirt strainer nickel-plated brass, G 2, DN 50, mesh width 0.3 mm](/web/image/product.template/208076/image_128/%5B141008%5D%20RIEGLER%20Dirt%20strainer%20nickel-plated%20brass%2C%20G%202%2C%20DN%2050%2C%20mesh%20width%200.3%20mm?unique=5322df8)
|
Type number: 60-8 N-0,3 |
68.77 € | |
![[141007] RIEGLER Strainer nickel-plated brass, G 1 1/2, DN 40, mesh width 0.3 mm](/web/image/product.template/208075/image_128/%5B141007%5D%20RIEGLER%20Strainer%20nickel-plated%20brass%2C%20G%201%201-2%2C%20DN%2040%2C%20mesh%20width%200.3%20mm?unique=60cde77)
|
Type number: 60-7 N-0,3 |
41.28 € | |
![[141006] RIEGLER Strainer nickel-plated brass, G 1 1/4, DN 32, mesh width 0.3 mm](/web/image/product.template/208074/image_128/%5B141006%5D%20RIEGLER%20Strainer%20nickel-plated%20brass%2C%20G%201%201-4%2C%20DN%2032%2C%20mesh%20width%200.3%20mm?unique=397e463)
|
Type number: 60-6 N-0.3 |
31.70 € | |
![[141003] RIEGLER Strainer nickel-plated brass, G 1/2, DN 15, mesh width 0.3 mm](/web/image/product.template/208071/image_128/%5B141003%5D%20RIEGLER%20Strainer%20nickel-plated%20brass%2C%20G%201-2%2C%20DN%2015%2C%20mesh%20width%200.3%20mm?unique=83c5f2b)
|
Type number: 60-3 N-0,3 |
8.89 € | |
![[141002] RIEGLER Strainer nickel-plated brass, G 3/8, DN 10, mesh width 0.3 mm](/web/image/product.template/208070/image_128/%5B141002%5D%20RIEGLER%20Strainer%20nickel-plated%20brass%2C%20G%203-8%2C%20DN%2010%2C%20mesh%20width%200.3%20mm?unique=1c83a3a)
|
Type number: 60-2 N-0.3 |
8.41 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

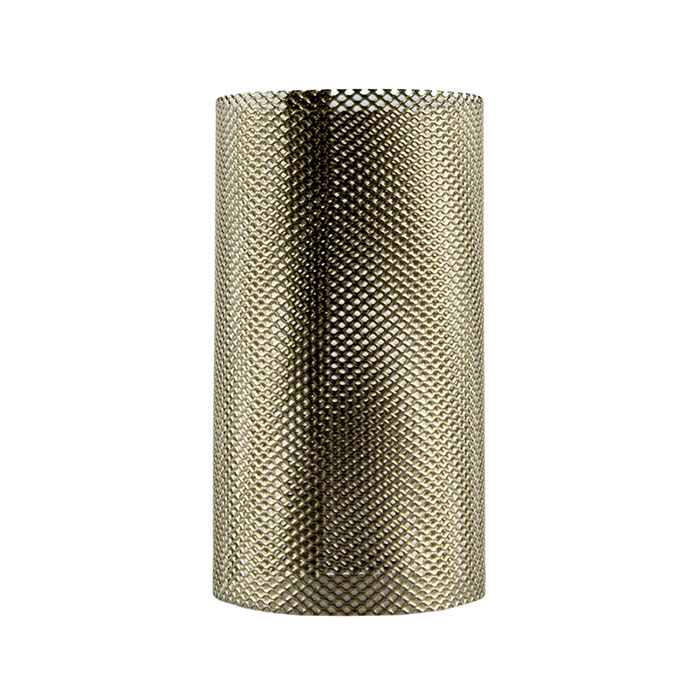

![[141033] RIEGLER Replacement sieve, dirt strainers, size G 3/4, mesh width 0.3 mm](/web/image/product.template/208101/image_128/%5B141033%5D%20RIEGLER%20Replacement%20sieve%2C%20dirt%20strainers%2C%20size%20G%203-4%2C%20mesh%20width%200.3%20mm?unique=ab5b017)
|
