RIEGLER Dekabon tube, Tube-Ø: 6x4 mm, black, Roll of 25 m
Type number: DKB-0604-25
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Dekabon pipe for compressed air distribution - type DKB-0604-25
The RIEGLER Dekabon pipe, pipe ø 6x4 mm, black, roll of 25 m forms the fixed pipe network for compressed air distribution. The temperature range is between -40 °C and 80 °C. Hose Ø 4 mm (inside) / 6 mm (outside). Durable and low-leakage.
Field of application
Typical areas of application: Stationary compressed air distribution.
| Temperature range min. | -40 °C |
| Temperature range max. | 80 °C |
| Soul | Aluminum |
| Outer ceiling | Polyethylene |
| Outer hose Ø | 6 mm |
| Hose Ø inside | 4 mm |
| Max. operating pressure at 23 °C | 28 bar |
| Roll length | 25 m |
| Bending radius min. | 19 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141362] RIEGLER Dekabon tube, Tube-Ø: 10x6.2 mm, black, Roll of 25 m](/web/image/product.template/208112/image_128/%5B141362%5D%20RIEGLER%20Dekabon%20tube%2C%20Tube-%C3%98:%2010x6.2%20mm%2C%20black%2C%20Roll%20of%2025%20m?unique=0a9c98b)
|
Type number: DKB-1006-25 |
268.94 € | |
![[141366] RIEGLER Dekabon tube, Tube-Ø: 12x8.13 mm, black, Roll of 25 m](/web/image/product.template/208113/image_128/%5B141366%5D%20RIEGLER%20Dekabon%20tube%2C%20Tube-%C3%98:%2012x8.13%20mm%2C%20black%2C%20Roll%20of%2025%20m?unique=5da4950)
|
Type number: DKB-1208-25 |
346.68 € | |

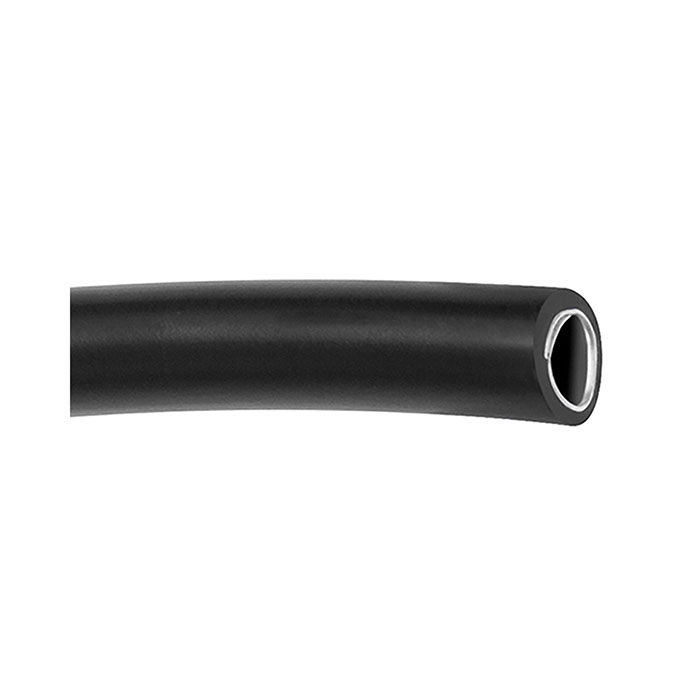

![[141370] RIEGLER Dekabon tube, Tube-Ø: 14x9.75 mm, black, Roll of 25 m](/web/image/product.template/208114/image_128/%5B141370%5D%20RIEGLER%20Dekabon%20tube%2C%20Tube-%C3%98:%2014x9.75%20mm%2C%20black%2C%20Roll%20of%2025%20m?unique=787d4f3)
|
