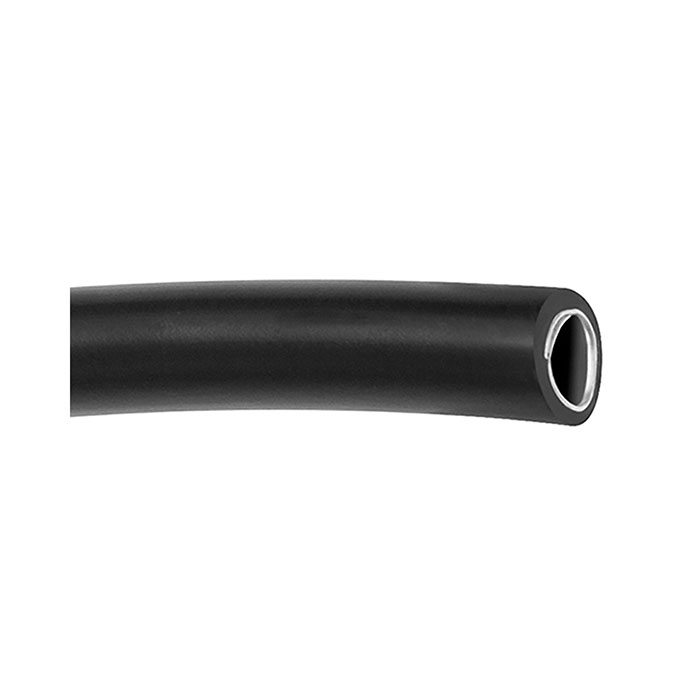

RIEGLER Dekabon tube, Tube-Ø: 12x8.13 mm, black, Roll of 25 m
Type number: DKB-1208-25
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Dekabon pipe for compressed air distribution - type DKB-1208-25
The RIEGLER Dekabon pipe, pipe ø 12x8.13 mm, black, roll of 25 m forms the fixed pipe network for compressed air distribution. The temperature range is between -40 °C and 80 °C. Hose Ø 8.13 mm (inside) / 12 mm (outside). Durable and low-leakage.
Field of application
Typical areas of application: Stationary compressed air distribution.
| Temperature range min. | -40 °C |
| Temperature range max. | 80 °C |
| Soul | Aluminum |
| Outer ceiling | Polyethylene |
| Outer hose Ø | 12 mm |
| Hose Ø inside | 8.13 mm |
| Max. operating pressure at 23 °C | 24 bar |
| Roll length | 25 m |
| Bending radius min. | 40 mm |
| Class name | FLEX |
