RIEGLER Quick-connect coupling I.D. 7.8, Steel, R 1/2 ET
Type number: 244.63-E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
141514EAN :
4047322568067Weight :
0.09 kgRIEGLER Quick-release coupling made of galvanized steel, for compressed air supply, R 1/2 AG - Type 244.63-E
The RIEGLER quick-release coupling NW 7.8, steel, R 1/2 AG connects and disconnects compressed air lines with a single movement - automatic sealing when disconnecting. The housing is made of galvanized steel with NBR seals. The permissible medium temperature is between -20 °C and 100 °C. Connection thread R 1/2 AG - suitable for common industrial standards. The flow rate is 2000 l/min (air) (at 6 bar and Δp = 0.5 bar). Connects and disconnects in seconds without tools.
Field of application
Typical areas of application: Workshop, production and mobile compressed air supply.
| Housing | Galvanized steel |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 2000 l/min (air) |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Sleeve | Galvanized steel |
| Threaded piece | Galvanized steel |
| Valve | Zinc die casting (Zamak) |
| Operating pressure | 0 - 35 bar |
| SW | 22 mm |
| NW | 7.8 |
| Length | 55 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | R 1/2 AG |
| RoHS material information | RoHS compliant |
| Exception | 6a, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | 1.0% w/w and < 10.0% |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

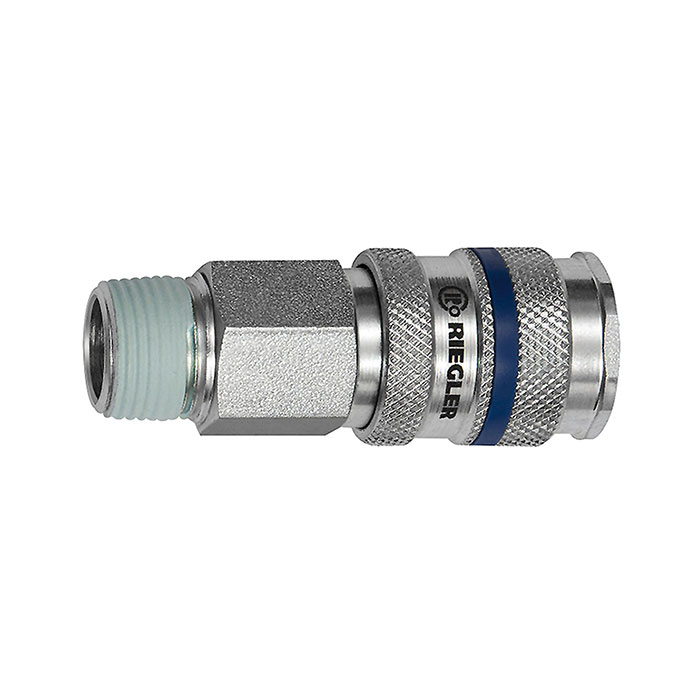

![[141512] RIEGLER Quick-connect coupling I.D. 7.8, Steel, R 1/4 ET](/web/image/product.template/208144/image_128/%5B141512%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%207.8%2C%20Steel%2C%20R%201-4%20ET?unique=72e1c46)
|
Type number: 244.61-E |
10.91 € | |

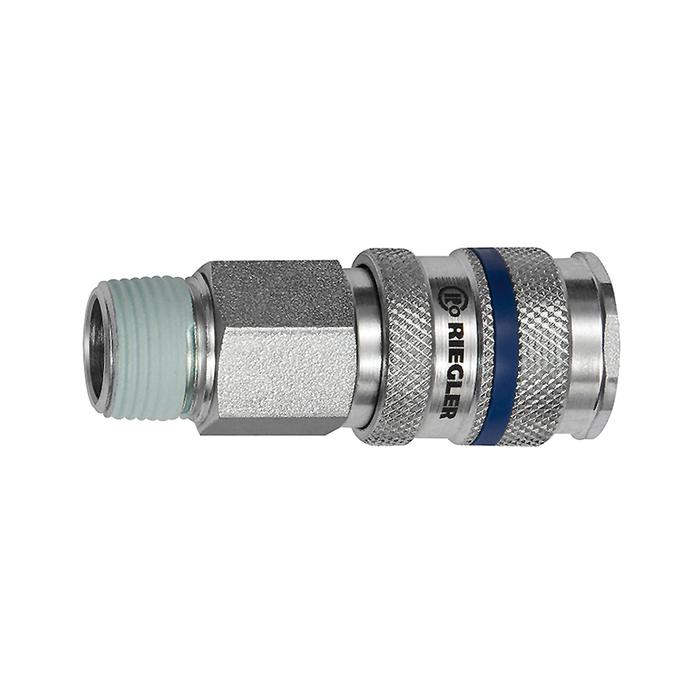

![[141513] RIEGLER Quick-connect coupling I.D. 7.8, Steel, R 3/8 ET](/web/image/product.template/208145/image_128/%5B141513%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%207.8%2C%20Steel%2C%20R%203-8%20ET?unique=c00cee3)
|
Type number: 244.62-E |
10.91 € | |
