RIEGLER Quick-connect coupling I.D. 7.8, Steel, G 1/2 IT
Type number: 244.73-E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
141517EAN :
4047322568098Weight :
0.11 kgQuick-release coupling NW 7.8, galvanized steel, G 1/2 female, operating pressure 0 - 35 bar, medium/ambient temp. -20 °C to 100 °C
| Housing | Galvanized steel |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 2000 l/min (air) |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Sleeve | Galvanized steel |
| Threaded piece | Galvanized steel |
| Valve | Zinc die casting (Zamak) |
| Operating pressure | 0 - 35 bar |
| SW | 24 mm |
| NW | 7.8 |
| Length | 56 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/2 IG |
| RoHS material information | RoHS compliant |
| Exception | 6a, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | 1.0% w/w and < 10.0% |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141515] RIEGLER Quick-connect coupling I.D. 7.8, Steel, G 1/4 IT](/web/image/product.template/208147/image_128/%5B141515%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%207.8%2C%20Steel%2C%20G%201-4%20IT?unique=1ba6a93)
|
Type number: 244.71-E |
10.66 € | |

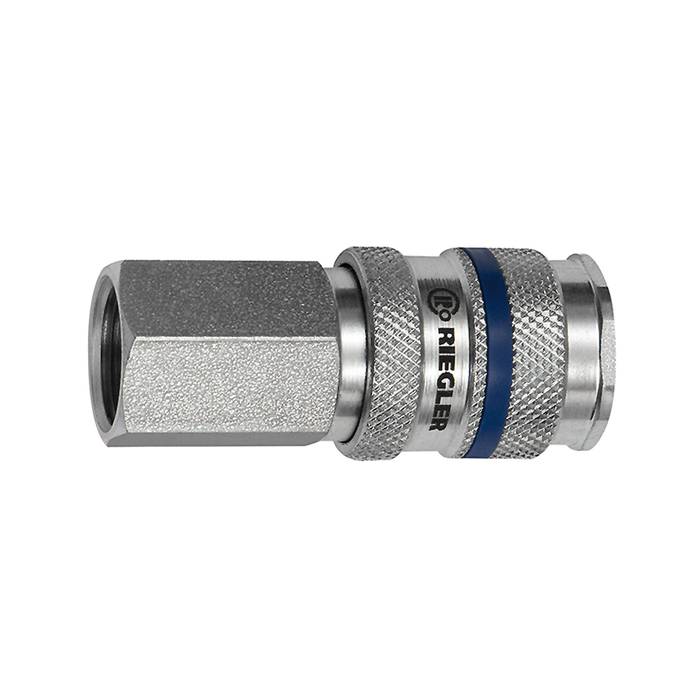

![[141516] RIEGLER Quick-connect coupling I.D. 7.8, Steel, G 3/8 IT](/web/image/product.template/208148/image_128/%5B141516%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%207.8%2C%20Steel%2C%20G%203-8%20IT?unique=3352c30)
|
