RIEGLER Quick-connect coupling I.D. 7.8, Steel, Hose connection 12x9
Type number: 244.92-1-E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
141525EAN :
4047322568173Weight :
0.10 kgRIEGLER Quick-release coupling made of galvanized steel, for compressed air supply - Type 244.92-1-E
The RIEGLER quick-release coupling NW 7.8, steel, hose connection 12x9 connects and disconnects compressed air lines with a single movement - automatic sealing when disconnecting. The housing is made of galvanized steel with NBR seals. The permissible medium temperature is between -20 °C and 100 °C. Connection thread hose connection 12x9 - suitable for common industry standards. The flow rate is 2000 l/min (air) (at 6 bar and Δp = 0.5 bar). Connects and disconnects in seconds without tools.
Field of application
Typical areas of application: Workshop, production and mobile compressed air supply.
| Housing | Galvanized steel |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 2000 l/min (air) |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Sleeve | Galvanized steel |
| Threaded piece | Galvanized steel |
| Valve | Zinc die casting (Zamak) |
| Operating pressure | 0 - 35 bar |
| SW | 19 mm |
| NW | 7.8 |
| Length | 64 mm |
| Connection | Trouser connection 12x9 |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141524] RIEGLER Quick-connect coupling I.D. 7.8, Steel, Hose connection 10x8](/web/image/product.template/208156/image_128/%5B141524%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%207.8%2C%20Steel%2C%20Hose%20connection%2010x8?unique=08bfdd5)
|
Type number: 244.91-1-E |
12.14 € | |

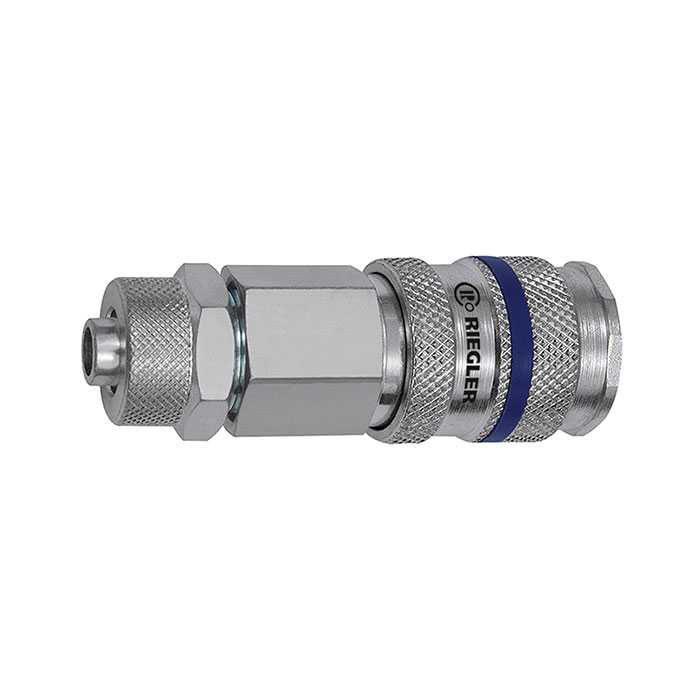

![[141523] RIEGLER Quick-connect coupling I.D. 7.8, Steel, Hose connection 8x6](/web/image/product.template/208155/image_128/%5B141523%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%207.8%2C%20Steel%2C%20Hose%20connection%208x6?unique=b3485cc)
|
