RIEGLER Quick-connect coupling I.D. 19, Bright brass, G 3/4 ET
Type number: 419.14
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
141561EAN :
4047322568333Weight :
0.60 kgQuick-release coupling NW 19, bare brass, G 3/4 male, operating pressure 0 - 35 bar, medium/ambient temp. -20 °C to 100 °C
| Housing | Brass bright |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 8700 l/min (air) |
| Spring | Stainless steel |
| Sleeve | Brass bright |
| Threaded piece | Brass bright |
| Valve | Brass bright |
| Operating pressure | 0 - 35 bar |
| SW | 41 mm |
| NW | 19 |
| Length | 95 mm |
| Connection | G 3/4 AG |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141563] RIEGLER Quick-connect coupling I.D. 19, Bright brass, G 1 1/4 ET](/web/image/product.template/208195/image_128/%5B141563%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%2019%2C%20Bright%20brass%2C%20G%201%201-4%20ET?unique=1b0610e)
|
Type number: 419.16 |
184.20 € | |

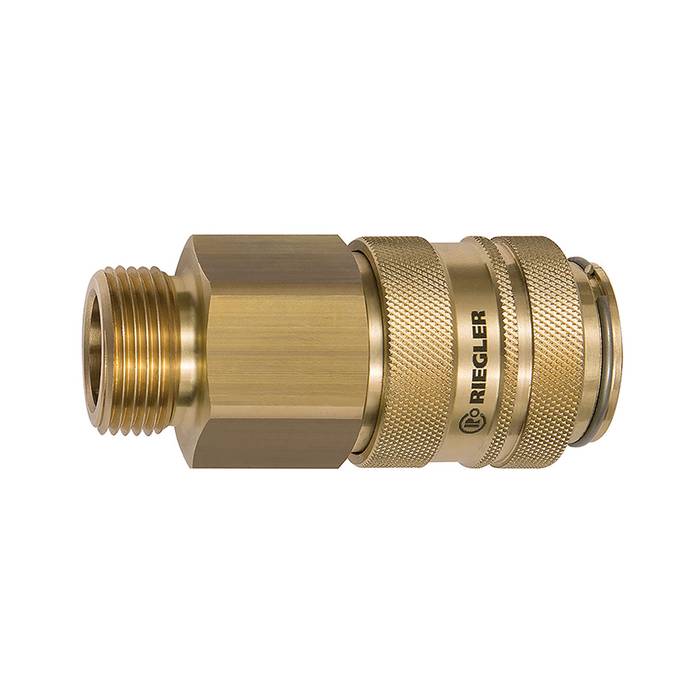

![[141562] RIEGLER Quick-connect coupling I.D. 19, Bright brass, G 1 ET](/web/image/product.template/208194/image_128/%5B141562%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%2019%2C%20Bright%20brass%2C%20G%201%20ET?unique=f803e52)
|
Type number: 419.15 |
153.50 € | |
