RIEGLER Quick-connect coupling I.D. 19, Bright brass, Sleeve I.D. 16
Type number: 419.26
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
141567EAN :
4047322568395Weight :
0.59 kgRIEGLER Quick-release coupling made of bare brass, for compressed air supply, LW 16 - Type 419.26
The RIEGLER quick connect coupling NW 19, bare brass, nozzle LW 16 connects and disconnects compressed air lines with a single movement - automatic sealing when disconnecting. The housing is made of bright brass with NBR seals. The permissible medium temperature is between -20 °C and 100 °C. Connection thread LW 16 - suitable for common industrial standards. The flow rate is 8700 l/min (air) (at 6 bar and Δp = 0.5 bar). Connects and disconnects in seconds without tools.
Field of application
Typical areas of application: Workshop, production and mobile compressed air supply.
| Housing | Brass bright |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 8700 l/min (air) |
| Spring | Stainless steel |
| Sleeve | Brass bright |
| Threaded piece | Brass bright |
| Valve | Brass bright |
| Operating pressure | 0 - 35 bar |
| SW | 41 mm |
| NW | 19 |
| Length | 114 mm |
| Connection | LW 16 |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

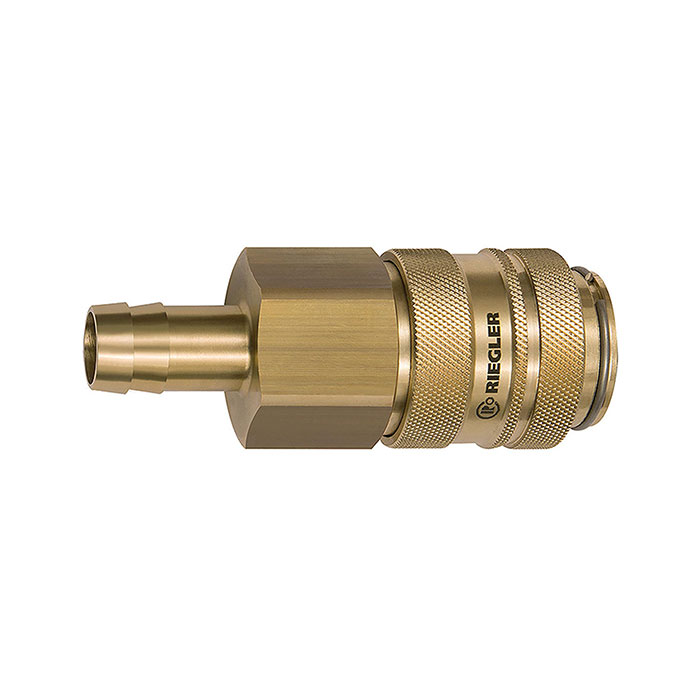

![[141568] RIEGLER Quick-connect coupling I.D. 19, Bright brass, Sleeve I.D. 19](/web/image/product.template/208200/image_128/%5B141568%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%2019%2C%20Bright%20brass%2C%20Sleeve%20I.D.%2019?unique=2932838)
|
