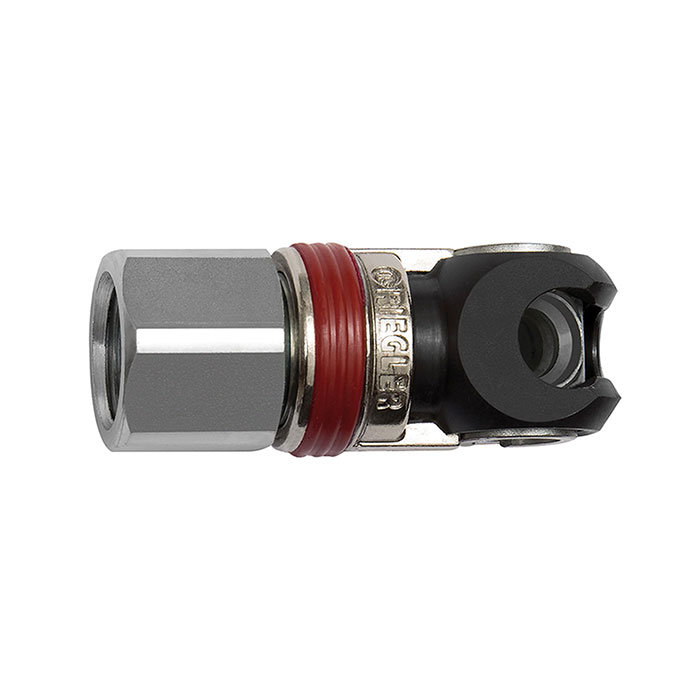

RIEGLER Swing safety coupling I.D. 5.5, ARO 210, Steel, G 3/8 IT
Type number: 420.02-SCH
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Swing safety coupling I.D. 5.5, ARO 210, Steel, G 3/8 IT, Operating pressure max. 25 bar, Temp. -20 °C to 100 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Medium | Compressed air, gases |
| Housing | Steel, QPQ treated |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 820 l/min (air) |
| Sleeve | Zinc die-cast, nickel-plated, red rubber-coated |
| Threaded piece | Galvanized steel |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 19 mm |
| NW | 5.5 |
| Length | 58 mm |
| Connection | G 3/8 IG |
| Connector profile | according to ARO 210 |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141597] RIEGLER Swing safety coupling I.D. 5.5, ARO 210, Steel, G 1/2 IT](/web/image/product.template/208212/image_128/%5B141597%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%205.5%2C%20ARO%20210%2C%20Steel%2C%20G%201-2%20IT?unique=a66a7fe)
|
Type number: 420.03-SCH |
24.97 € | |
![[141595] RIEGLER Swing safety coupling I.D. 5.5, ARO 210, Steel, G 1/4 IT](/web/image/product.template/208210/image_128/%5B141595%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%205.5%2C%20ARO%20210%2C%20Steel%2C%20G%201-4%20IT?unique=e49825f)
|
Type number: 420.01-SCH |
24.97 € | |
![[141600] RIEGLER Swing safety coupling I.D. 5.5, ARO 210, Steel, NPT 1/2 IT](/web/image/product.template/208215/image_128/%5B141600%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%205.5%2C%20ARO%20210%2C%20Steel%2C%20NPT%201-2%20IT?unique=107593d)
|
Type number: 420.03-SCH-NPT |
27.44 € | |
![[141598] RIEGLER Swing safety coupling I.D. 5.5, ARO 210, Steel, NPT 1/4 IT](/web/image/product.template/208213/image_128/%5B141598%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%205.5%2C%20ARO%20210%2C%20Steel%2C%20NPT%201-4%20IT?unique=7c767c0)
|
Type number: 420.01-SCH-NPT |
27.44 € | |
![[141599] RIEGLER Swing safety coupling I.D. 5.5, ARO 210, Steel, NPT 3/8 IT](/web/image/product.template/208214/image_128/%5B141599%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%205.5%2C%20ARO%20210%2C%20Steel%2C%20NPT%203-8%20IT?unique=ec37c04)
|
Type number: 420.02-SCH-NPT |
27.44 € | |
