RIEGLER Swing safety coupl. I.D. 5.5, ARO 210, Steel, Hose connec. 6.5x10
Type number: 420.32-SCH
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Swivel safety coupling made of steel, QPQ treated, for compressed air supply - Type 420.32-SCH

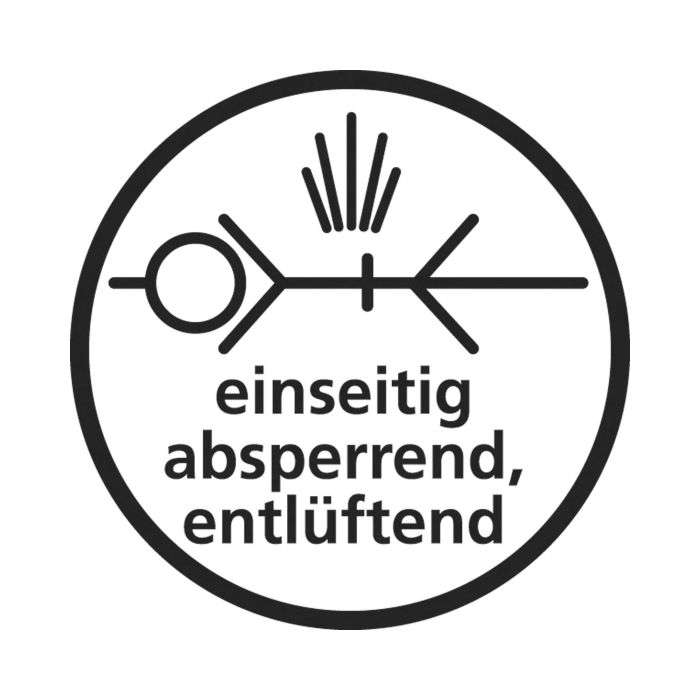

The RIEGLER swivel safety coupling NW 5.5, ARO 210, steel, slot 6.5x10 separates the compressed air line in two stages in a controlled manner and protects the operator. The housing is made of steel, QPQ treated with NBR seals. The temperature range is between -20 °C and 100 °C. Connection thread hose connection 6.5x10 - suitable for common industry standards. Suitable for compressed air, gases. The flow rate is 820 l/min (air) (at 6 bar and Δp = 0.5 bar). Maximum safety thanks to controlled pressure relief.
Field of application
Typical areas of application: Compressed air applications with personal protection requirements.
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Medium | Compressed air, gases |
| Housing | Steel, QPQ treated |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 820 l/min (air) |
| Sleeve | Zinc die-cast, nickel-plated, red rubber-coated |
| Threaded piece | Galvanized steel |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 20 mm |
| NW | 5.5 |
| Length | 63 mm |
| Connection | Hose connection 6.5x10 |
| Connector profile | according to ARO 210 |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

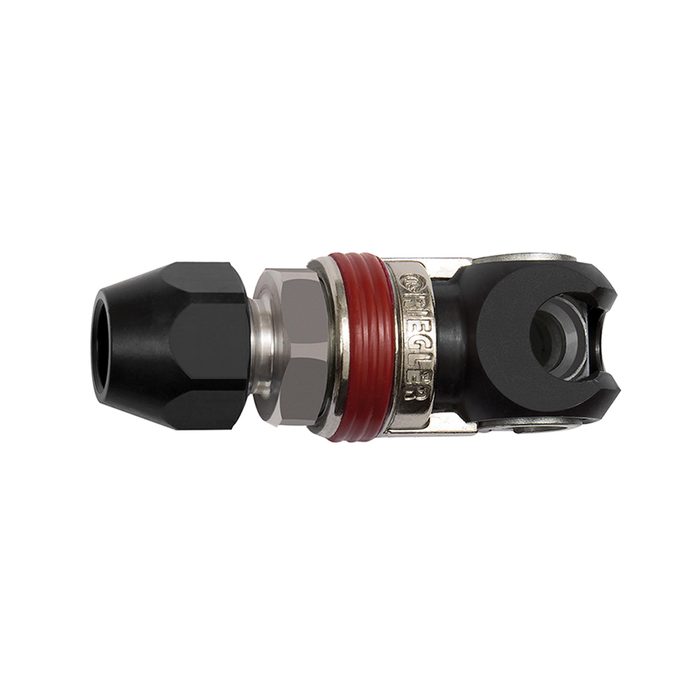

![[141611] RIEGLER Swing safety coupl. I.D. 5.5 ARO 210, Steel, Hose connection 8x12](/web/image/product.template/208226/image_128/%5B141611%5D%20RIEGLER%20Swing%20safety%20coupl.%20I.D.%205.5%20ARO%20210%2C%20Steel%2C%20Hose%20connection%208x12?unique=576eb6e)
|
