RIEGLER Nipple for swing safety couplings I.D. 5.5, ARO 210, G 1/4 ET
Type number: 420.61
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

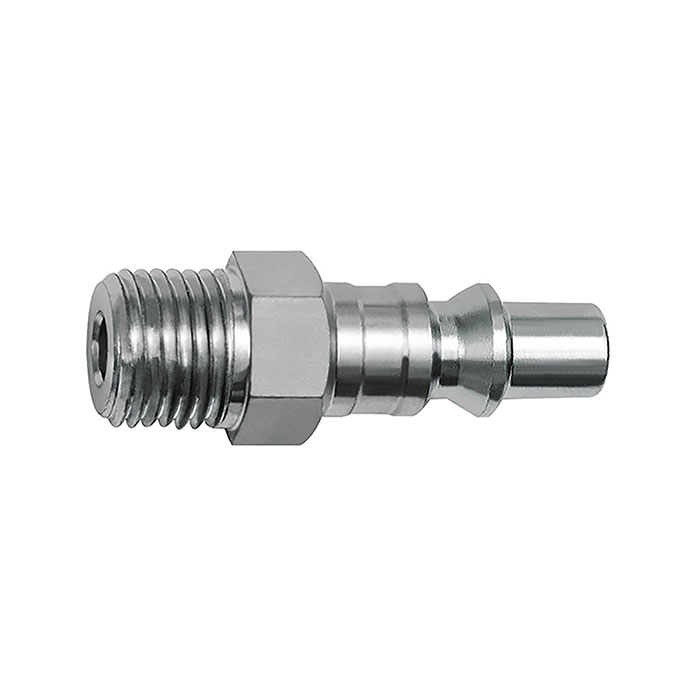

RIEGLER Nipple for couplings G 1/4 AG - Type 420.61
The RIEGLER nipple for couplings NW 5.5, ARO 210, steel, G 1/4 AG establishes the connection between the compressed air hose and the quick coupling. Connection thread G 1/4 AG - suitable for common industry standards. Simply plug in - secure, tight connection.
Field of application
Typical areas of application: Compressed air coupling systems.
| SW | 14 mm |
| NW | 5.5 |
| Length | 42 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 AG |
| RoHS material information | RoHS compliant |
| Exception | 6a |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | ‰¥ 0.3% w/w and < 1.0% w/w |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141612] RIEGLER Nipple for swing safety couplings I.D. 5.5, ARO 210, G 1/8 ET](/web/image/product.template/208227/image_128/%5B141612%5D%20RIEGLER%20Nipple%20for%20swing%20safety%20couplings%20I.D.%205.5%2C%20ARO%20210%2C%20G%201-8%20ET?unique=ebef2aa)
|
Type number: 420.60 |
4.37 € | |
![[141614] RIEGLER Nipple for swing safety couplings I.D. 5.5, ARO 210, NPT 1/4 ET](/web/image/product.template/208229/image_128/%5B141614%5D%20RIEGLER%20Nipple%20for%20swing%20safety%20couplings%20I.D.%205.5%2C%20ARO%20210%2C%20NPT%201-4%20ET?unique=0cb3b30)
|
Type number: 420.61-NPT |
4.46 € | |
![[141615] RIEGLER Nipple for swing safety couplings I.D. 5.5, ARO 210, NPT 3/8 ET](/web/image/product.template/208230/image_128/%5B141615%5D%20RIEGLER%20Nipple%20for%20swing%20safety%20couplings%20I.D.%205.5%2C%20ARO%20210%2C%20NPT%203-8%20ET?unique=3d35d37)
|
Type number: 420.62-NPT |
4.46 € | |
