RIEGLER Swing safety coupling I.D. 7.2, EURO 7.2, Steel, NPT 3/8 IT
Type number: 424.02-SCH-NPT
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Swivel safety coupling NW 7.2, EURO 7.2, steel, NPT 3/8 female, max. operating pressure 25 bar, temp. -20 °C to 100 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Medium | Compressed air, gases |
| Housing | Steel, QPQ treated |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 2300 l/min (air) |
| Sleeve | Zinc die-cast, nickel-plated, red rubber-coated |
| Threaded piece | Galvanized steel |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 20 mm |
| NW | 7.2 |
| Length | 69 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | NPT 3/8 IG |
| RoHS material information | RoHS compliant |
| Exception | 6a |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | ‰¥ 0.3% w/w and < 1.0% w/w |
| Connector profile | EURO 7.2 |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

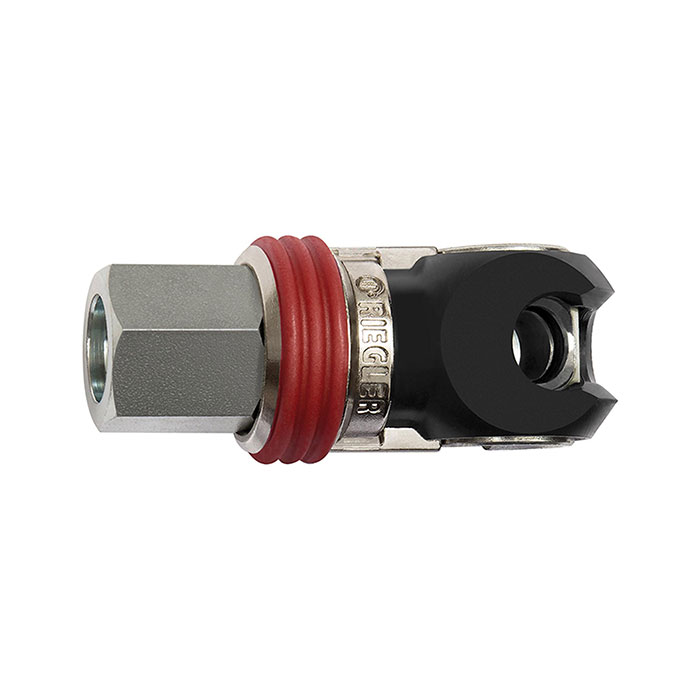

![[141653] RIEGLER Swing safety coupling I.D. 7.2, EURO 7.2, Steel, G 1/2 IT](/web/image/product.template/208268/image_128/%5B141653%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%207.2%2C%20EURO%207.2%2C%20Steel%2C%20G%201-2%20IT?unique=779287c)
|
