RIEGLER Swing safety coupling I.D. 7.2, EURO 7.2, Steel, NPT 3/8 ET
Type number: 424.12-SCH-NPT
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Swivel safety coupling made of steel, QPQ treated, for compressed air supply, NPT 3/8 AG - Type 424.12-SCH-NPT
The RIEGLER swivel safety coupling NW 7.2, EURO 7.2, steel, NPT 3/8 AG separates the compressed air line in two stages in a controlled manner and protects the operator. The housing is made of steel, QPQ treated with NBR seals. The temperature range is between -20 °C and 100 °C. Connection thread NPT 3/8 AG - suitable for common industry standards. Suitable for compressed air, gases. The flow rate is 2300 l/min (air) (at 6 bar and Δp = 0.5 bar). Maximum safety thanks to controlled pressure relief.
Field of application
Typical areas of application: Compressed air applications with personal protection requirements.
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Medium | Compressed air, gases |
| Housing | Steel, QPQ treated |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 2300 l/min (air) |
| Sleeve | Zinc die-cast, nickel-plated, red rubber-coated |
| Threaded piece | Galvanized steel |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 24 mm |
| NW | 7.2 |
| Length | 70 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | NPT 3/8 AG |
| RoHS material information | RoHS compliant |
| Exception | 6a |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | ‰¥ 0.3% w/w and < 1.0% w/w |
| Connector profile | EURO 7.2 |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141659] RIEGLER Swing safety coupling I.D. 7.2, EURO 7.2, Steel, G 1/2 ET](/web/image/product.template/208274/image_128/%5B141659%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%207.2%2C%20EURO%207.2%2C%20Steel%2C%20G%201-2%20ET?unique=074783c)
|
Type number: 424.13-SCH |
28.76 € | |
![[141657] RIEGLER Swing safety coupling I.D. 7.2, EURO 7.2, Steel, G 1/4 ET](/web/image/product.template/208272/image_128/%5B141657%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%207.2%2C%20EURO%207.2%2C%20Steel%2C%20G%201-4%20ET?unique=9780e97)
|
Type number: 424.11-SCH |
28.76 € | |
![[141658] RIEGLER Swing safety coupling I.D. 7.2, EURO 7.2, Steel, G 3/8 ET](/web/image/product.template/208273/image_128/%5B141658%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%207.2%2C%20EURO%207.2%2C%20Steel%2C%20G%203-8%20ET?unique=871851c)
|
Type number: 424.12-SCH |
28.76 € | |
![[141662] RIEGLER Swing safety coupling I.D. 7.2, EURO 7.2, Steel, NPT 1/2 ET](/web/image/product.template/208277/image_128/%5B141662%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%207.2%2C%20EURO%207.2%2C%20Steel%2C%20NPT%201-2%20ET?unique=d68b015)
|
Type number: 424.13-SCH-NPT |
28.76 € | |

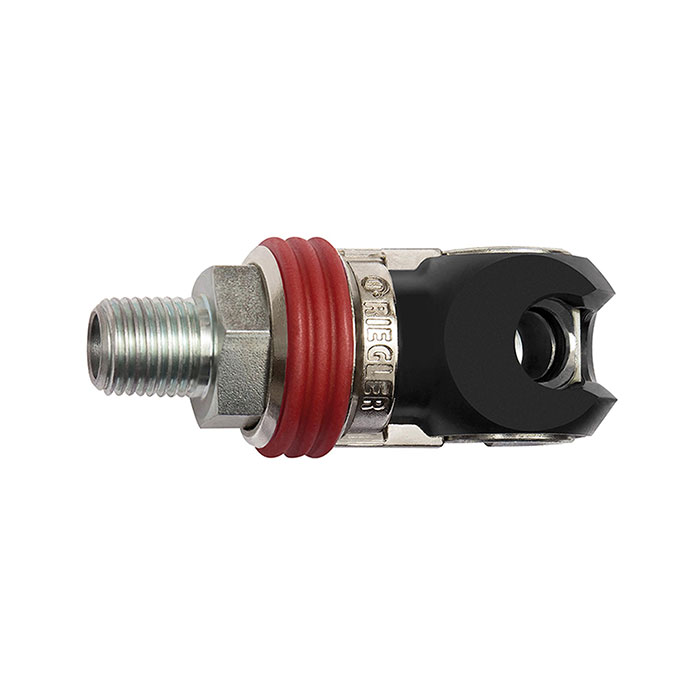

![[141660] RIEGLER Swing safety coupling I.D. 7.2, EURO 7.2, Steel, NPT 1/4 ET](/web/image/product.template/208275/image_128/%5B141660%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%207.2%2C%20EURO%207.2%2C%20Steel%2C%20NPT%201-4%20ET?unique=7ef878a)
|
