RIEGLER Swing safety coupling I.D. 7.2, EURO 7.2, Steel, Sleeve I.D. 8
Type number: 424.22-SCH
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Swivel safety coupling made of steel, QPQ treated, for compressed air supply, LW 8 - Type 424.22-SCH
The RIEGLER swivel safety coupling NW 7.2, EURO 7.2, steel, nozzle LW 8 separates the compressed air line in two stages in a controlled manner and protects the operator. The housing is made of steel, QPQ treated with NBR seals. The temperature range is between -20 °C and 100 °C. Connection thread LW 8 - suitable for common industry standards. Suitable for compressed air, gases. The flow rate is 2300 l/min (air) (at 6 bar and Δp = 0.5 bar). Maximum safety due to controlled pressure relief.
Field of application
Typical areas of application: Compressed air applications with personal protection requirements.
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Medium | Compressed air, gases |
| Housing | Steel, QPQ treated |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 2300 l/min (air) |
| Sleeve | Zinc die-cast, nickel-plated, red rubber-coated |
| Threaded piece | Galvanized steel |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 22 mm |
| NW | 7.2 |
| Length | 82 mm |
| Connection | LW 8 |
| Connector profile | EURO 7.2 |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141664] RIEGLER Swing safety coupling I.D. 7.2, EURO 7.2, Steel, Sleeve I.D. 10](/web/image/product.template/208279/image_128/%5B141664%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%207.2%2C%20EURO%207.2%2C%20Steel%2C%20Sleeve%20I.D.%2010?unique=25062ae)
|
Type number: 424.24-SCH |
28.76 € | |

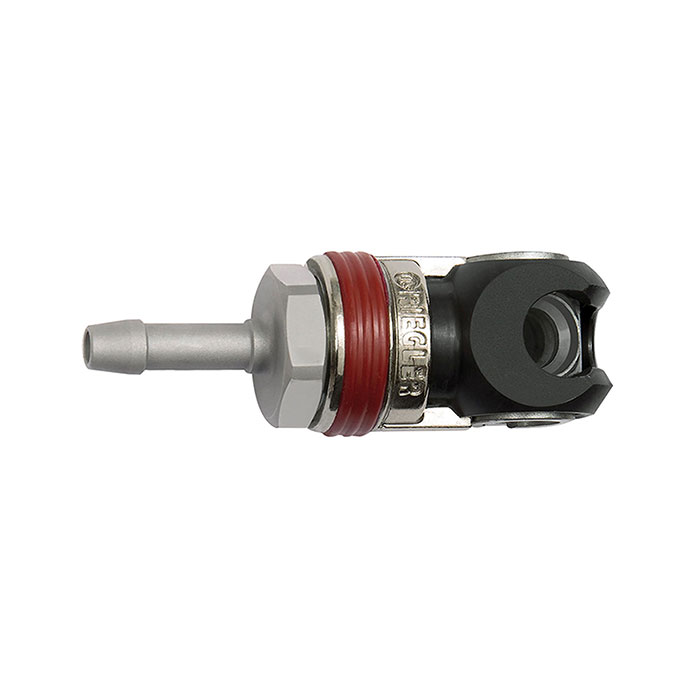

![[141665] RIEGLER Swing safety coupling I.D. 7.2, EURO 7.2, Steel, Sleeve I.D. 13](/web/image/product.template/208280/image_128/%5B141665%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%207.2%2C%20EURO%207.2%2C%20Steel%2C%20Sleeve%20I.D.%2013?unique=8aa5167)
|
