RIEGLER Swing safety coupling I.D. 7.2, EURO 7.2, Steel, Hose 11x16
Type number: 424.35-SCH
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Swing safety coupling I.D. 7.2, EURO 7.2, Steel, Hose connection 11x16, Operating pressure max. 25 bar, Temp. -20 °C to 100 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Medium | Compressed air, gases |
| Housing | Steel, QPQ treated |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 2300 l/min (air) |
| Sleeve | Zinc die-cast, nickel-plated, red rubber-coated |
| Threaded piece | Galvanized steel |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 24 mm |
| NW | 7.2 |
| Length | 81 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | Trouser connection 11x16 |
| RoHS material information | RoHS compliant |
| Exception | 6a |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | ‰¥ 0.3% w/w and < 1.0% w/w |
| Connector profile | EURO 7.2 |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

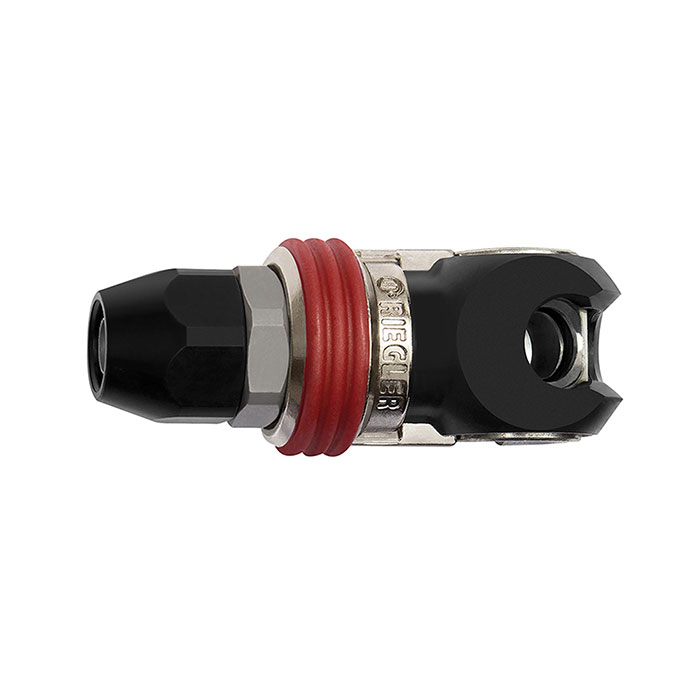

![[141666] RIEGLER Swing safety coupling I.D. 7.2, EURO 7.2, Steel, Hose 8x12](/web/image/product.template/208281/image_128/%5B141666%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%207.2%2C%20EURO%207.2%2C%20Steel%2C%20Hose%208x12?unique=58309ae)
|
