RIEGLER Swing safety coupling I.D. 8, ISO 6150 C, Steel, Hose 8x12
Type number: 425.34-SCH
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Swivel safety coupling NW 8, ISO 6150 C, steel, hose connection 8x12, max. operating pressure 25 bar, temp. -20 °C to 100 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Medium | Compressed air, gases |
| Housing | Steel, QPQ treated |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 2300 l/min (air) |
| Sleeve | Zinc die-cast, nickel-plated, red rubber-coated |
| Threaded piece | Galvanized steel |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 24 mm |
| NW | 8 |
| Length | 77 mm |
| Connection | Trouser connection 8x12 |
| Connector profile | according to ISO 6150 C |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

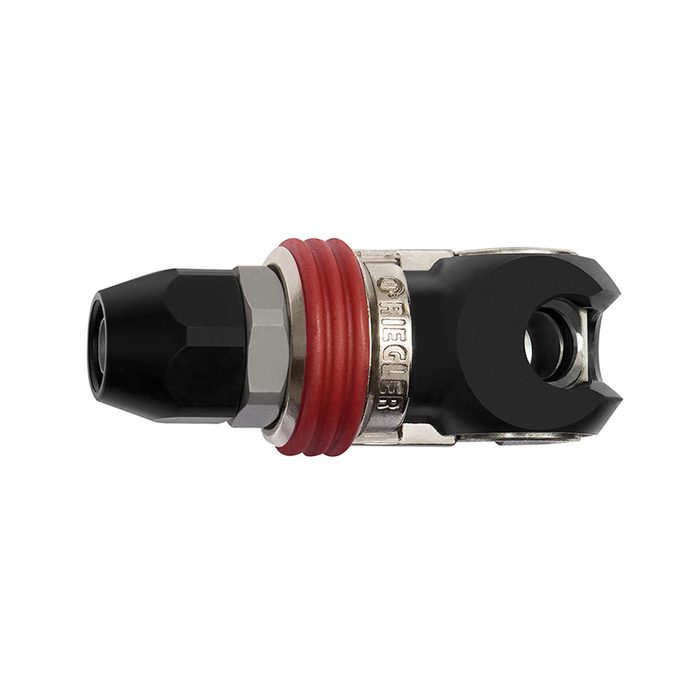

![[141695] RIEGLER Swing safety coupling I.D. 8, ISO 6150 C, Steel, Hose 11x16](/web/image/product.template/208310/image_128/%5B141695%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%208%2C%20ISO%206150%20C%2C%20Steel%2C%20Hose%2011x16?unique=bed91d2)
|
