RIEGLER Captive swivel safety coupling I.D. 6, ISO 6150 C, G 3/8 ET, red
Type number: 426.12-DREH-R
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
141850EAN :
4047322565134Category :
Non-Interchangeable Quick-Lock CouplingsWeight :
0.15 kgUnverwechselbare Dreh-Sicherheitskupplung NW 6, ISO 6150 C, Stahl, 2-stufig, G 3/8 AG, rot, max. 25 bar, Temp. -15 °C bis 200 °C
| Temperature range min. | -15 °C |
| Temperature range max. | 200 °C |
| Housing | Steel, QPQ treated |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 630 l/min (air) |
| Spring | Stainless steel |
| Sleeve | Galvanized steel, painted in colour |
| Threaded piece | Galvanized steel |
| Valve | Polyphenylene sulfide (PPS) |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 22 mm |
| Colour | red |
| NW | 6 |
| Length | 64 mm |
| Connection | G 3/8 AG |
| Connector profile | according to ISO 6150 C |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

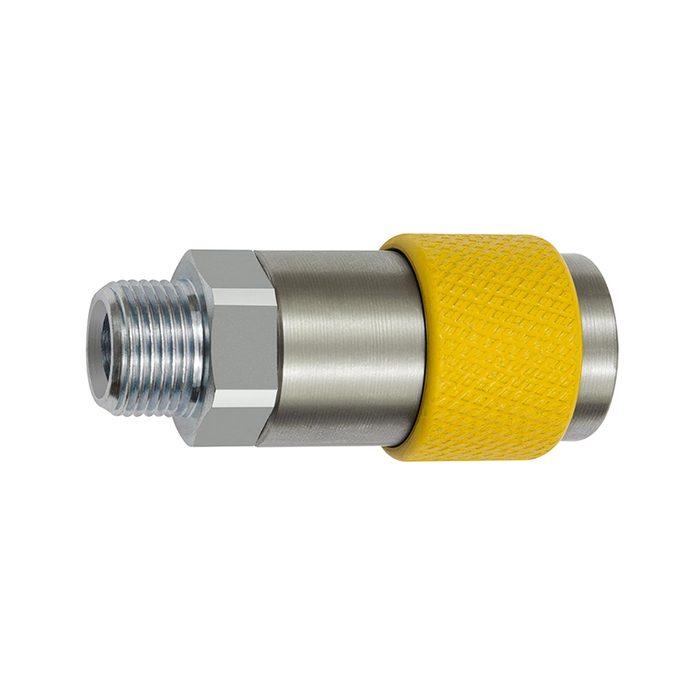

![[141862] RIEGLER Captive swivel safety coupl. I.D. 6, ISO 6150 C, G 1/4 ET, yellow](/web/image/product.template/211235/image_128/%5B141862%5D%20RIEGLER%20Captive%20swivel%20safety%20coupl.%20I.D.%206%2C%20ISO%206150%20C%2C%20G%201-4%20ET%2C%20yellow?unique=fbde610)
|
Type number: 426.11-DREH-GE |
34.90 € | |
![[141863] RIEGLER Captive swivel safety coupl. I.D. 6, ISO 6150 C, G 3/8 ET, yellow](/web/image/product.template/211236/image_128/%5B141863%5D%20RIEGLER%20Captive%20swivel%20safety%20coupl.%20I.D.%206%2C%20ISO%206150%20C%2C%20G%203-8%20ET%2C%20yellow?unique=35138d8)
|
Type number: 426.12-DREH-GE |
34.90 € | |
![[141888] RIEGLER Captive swivel safety coupling I.D. 6, ISO 6150 C, G 1/4 ET, blue](/web/image/product.template/211261/image_128/%5B141888%5D%20RIEGLER%20Captive%20swivel%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20G%201-4%20ET%2C%20blue?unique=32e5fe7)
|
Type number: 426.11-DREH-B |
34.90 € | |

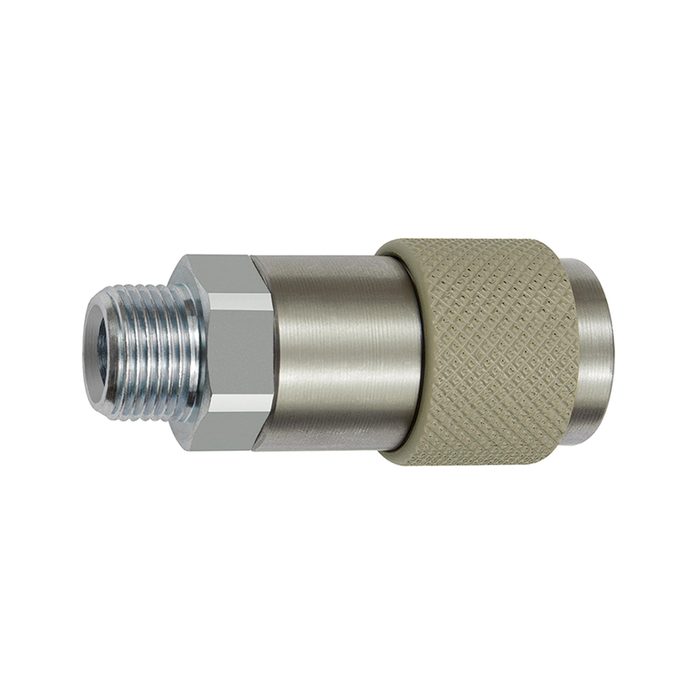

![[141875] RIEGLER Captive swivel safety coupling I.D. 6, ISO 6150 C, G 1/4 ET, gray](/web/image/product.template/211248/image_128/%5B141875%5D%20RIEGLER%20Captive%20swivel%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20G%201-4%20ET%2C%20gray?unique=e1ffe2c)
|
Type number: 426.11-DREH-GR |
34.90 € | |

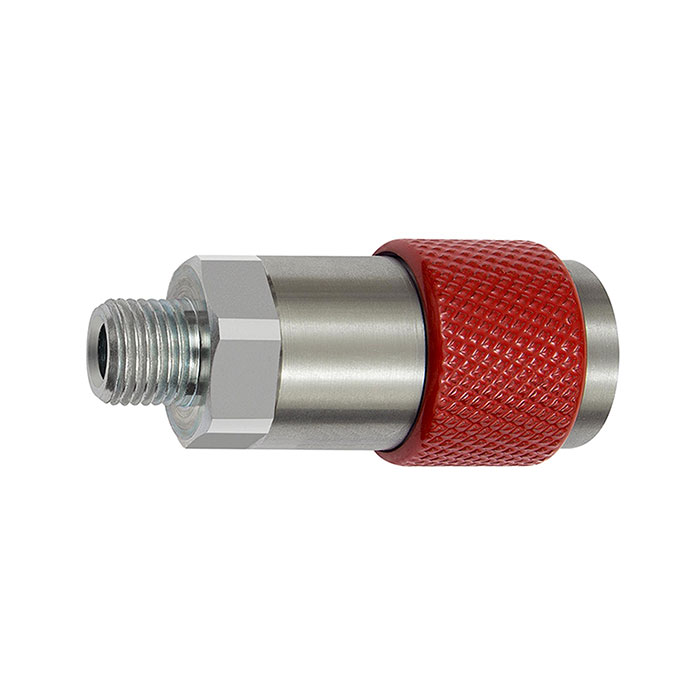

![[141849] RIEGLER Captive swivel safety coupling I.D. 6, ISO 6150 C, G 1/4 ET, red](/web/image/product.template/211222/image_128/%5B141849%5D%20RIEGLER%20Captive%20swivel%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20G%201-4%20ET%2C%20red?unique=fbe2a20)
|
