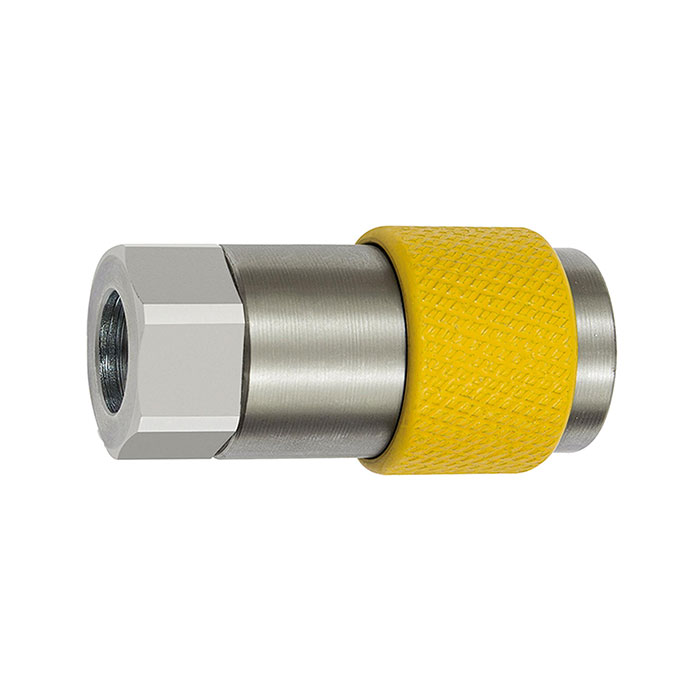

RIEGLER Captive swivel safety coupl. I.D. 6, ISO 6150 C, G 1/4 IT, yellow
Type number: 426.01-DREH-GE
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
141859EAN :
4047322564946Category :
Non-Interchangeable Quick-Lock CouplingsWeight :
0.14 kgUnverwechselbare Dreh-Sicherheitskupplung NW 6, ISO 6150 C, Stahl, 2-stufig, G 1/4 IG, gelb, max. 25 bar, Temp. -15 °C bis 200 °C
| Temperature range min. | -15 °C |
| Temperature range max. | 200 °C |
| Housing | Steel, QPQ treated |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 630 l/min (air) |
| Spring | Stainless steel |
| Sleeve | Galvanized steel, painted in colour |
| Threaded piece | Galvanized steel |
| Valve | Polyphenylene sulfide (PPS) |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 22 mm |
| Colour | yellow |
| NW | 6 |
| Length | 56 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 FEMALE THREAD |
| RoHS material information | RoHS compliant |
| Exception | 6a |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | ‰¥ 0.3% w/w and < 1.0% w/w |
| Connector profile | according to ISO 6150 C |
| Class name | PLUS |
