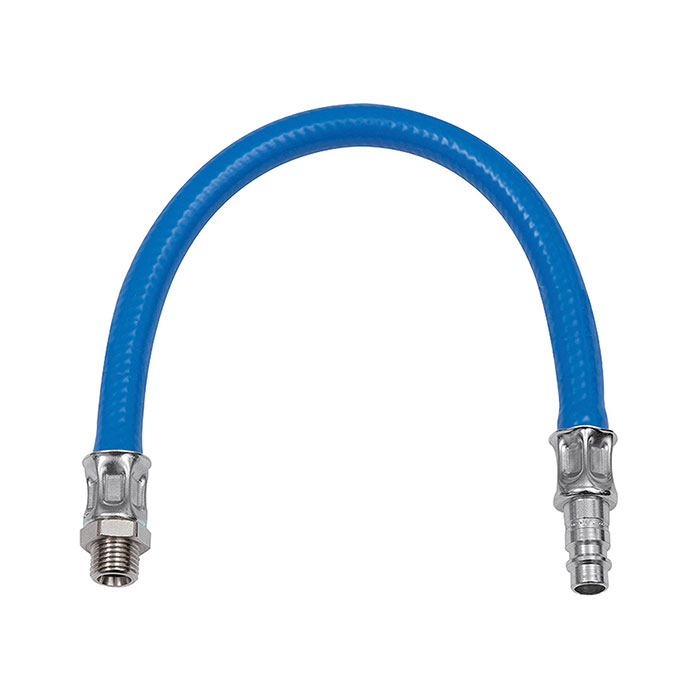

RIEGLER Vibration damper with 300 mm PVC hose, plug I.D. 7.2 - I.D. 7.8
Type number: VD-300-7,2-1/4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

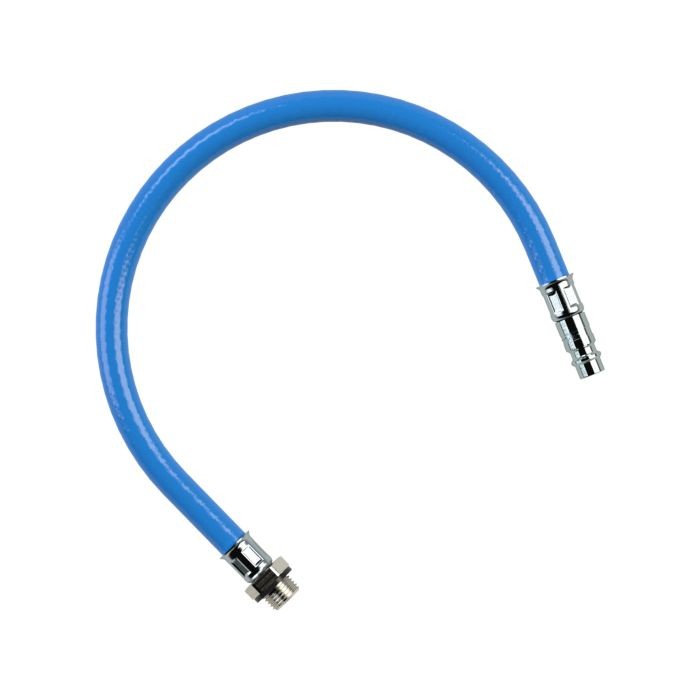

RIEGLER Vibration damper with 300 mm PVC hose for compressed air supply, max. 15 bar, G 1/4 AG - type VD-300-7.2-1/4
The RIEGLER vibration damper with 300 mm PVC hose, NW 7.2-NW 7.8 G 1/4 AG establishes the connection between the compressed air hose and the quick coupling. Designed for a maximum operating pressure of 15 bar. The temperature range is between -20 °C and 60 °C. Connection thread G 1/4 AG - suitable for common industry standards. Simply plug in - secure, tight connection.
Field of application
Typical areas of application: Compressed air coupling systems.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Max. operating pressure | 15 bar |
| NW | 7,2 - 7,8 |
| Connection | G 1/4 AG |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[142186] RIEGLER Vibration damper with 300 mm PVC hose, plug I.D. 10, G 1/2 ET](/web/image/product.template/210701/image_128/%5B142186%5D%20RIEGLER%20Vibration%20damper%20with%20300%20mm%20PVC%20hose%2C%20plug%20I.D.%2010%2C%20G%201-2%20ET?unique=a7cd6d9)
|
Type number: VD-300-10-1/2 |
11.71 € | |
![[142895] RIEGLER Vibration damper with 300 mm PVC hose, plug I.D. 11, G 1/2 ET](/web/image/product.template/210834/image_128/%5B142895%5D%20RIEGLER%20Vibration%20damper%20with%20300%20mm%20PVC%20hose%2C%20plug%20I.D.%2011%2C%20G%201-2%20ET?unique=ba73fc8)
|
Type number: VD-300-11-1/2 |
11.71 € | |
![[142187] RIEGLER Vibration damper with 300 mm PVC hose, plug I.D. 12, G 1/2 ET](/web/image/product.template/210702/image_128/%5B142187%5D%20RIEGLER%20Vibration%20damper%20with%20300%20mm%20PVC%20hose%2C%20plug%20I.D.%2012%2C%20G%201-2%20ET?unique=5ab4c8e)
|
Type number: VD-300-12-1/2 |
10.41 € | |
![[142190] RIEGLER Vibration damper with 300 mm PVC hose, plug I.D. 19, G 1 ET](/web/image/product.template/210703/image_128/%5B142190%5D%20RIEGLER%20Vibration%20damper%20with%20300%20mm%20PVC%20hose%2C%20plug%20I.D.%2019%2C%20G%201%20ET?unique=fb4355c)
|
Type number: VD-300-19-1 |
62.83 € | |

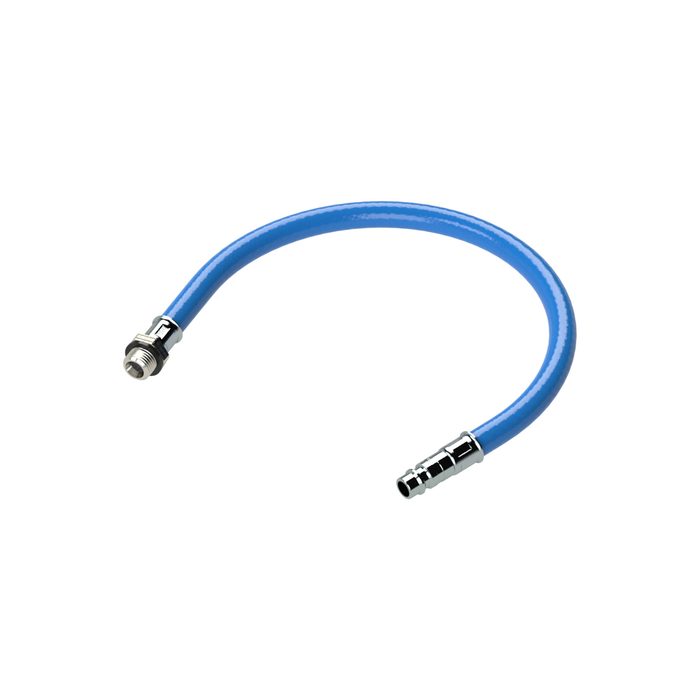

![[142894] RIEGLER Vibration damper with 300 mm PVC hose, plug I.D. 8, G 3/8 ET](/web/image/product.template/210833/image_128/%5B142894%5D%20RIEGLER%20Vibration%20damper%20with%20300%20mm%20PVC%20hose%2C%20plug%20I.D.%208%2C%20G%203-8%20ET?unique=84d7754)
|
