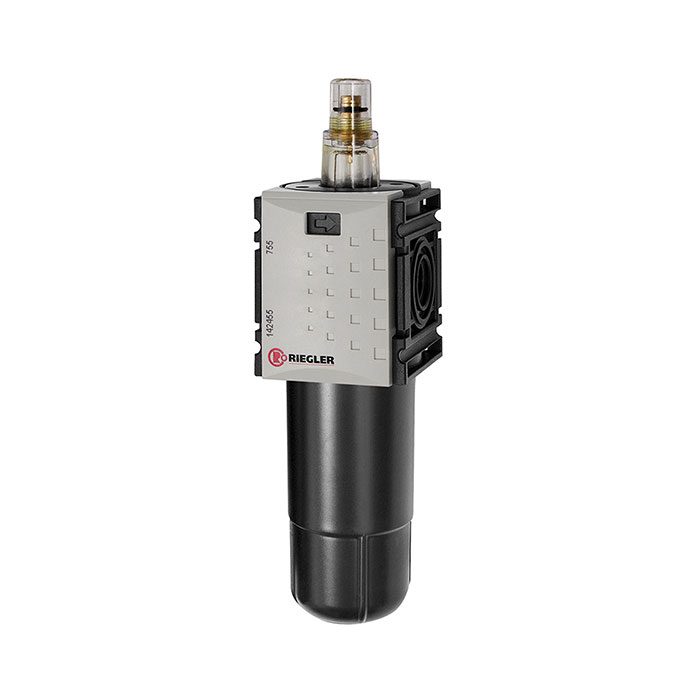

RIEGLER Mist oiler »FUTURA-mini«, with metal container, Size 0, G 1/4
Type number: FUM 901-M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Fog oiler "FUTURA-mini" with metal container made of PA66 GF60, for compressed air treatment, G 1/4 - type FUM 901-M
The RIEGLER mist lubricator "FUTURA-mini" with metal container, BG 0, G 1/4 doses precise quantities of oil into the compressed air flow and automatically lubricates pneumatic consumers. The housing is made of PA66 GF60 with NBR seals. The maximum inlet pressure is 12 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for compressed air, neutral gases. The flow rate is 1500 l/min (at P2 = 6 bar and pressure drop Δp = 1 bar). Tank made of metal container. Automatic lubrication extends the service life of moving parts.
Field of application
Typical areas of application: Lubrication of pneumatic cylinders, valves and pneumatic tools.
| Inlet pressure max. | 12 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Plastic |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA-mini |
| Container | Metal container |
| Dropper attachment | PC |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Thread | G 1/4 |
| Flow rate | 1500 l/min |
| BG | 0 |
| A | 43 mm |
| B | 145 mm |
| C | 58 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | MAX |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

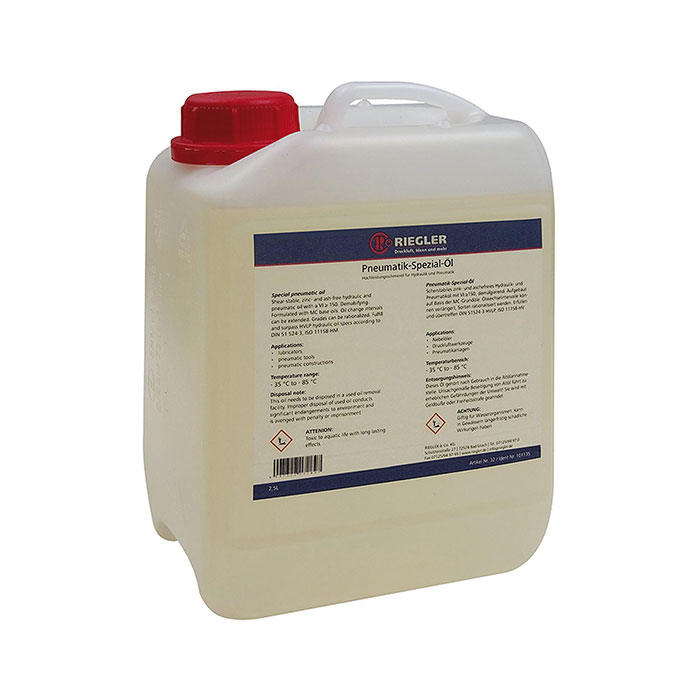

![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=78dd588)
|
Type number: 32 |
34.09 € | |

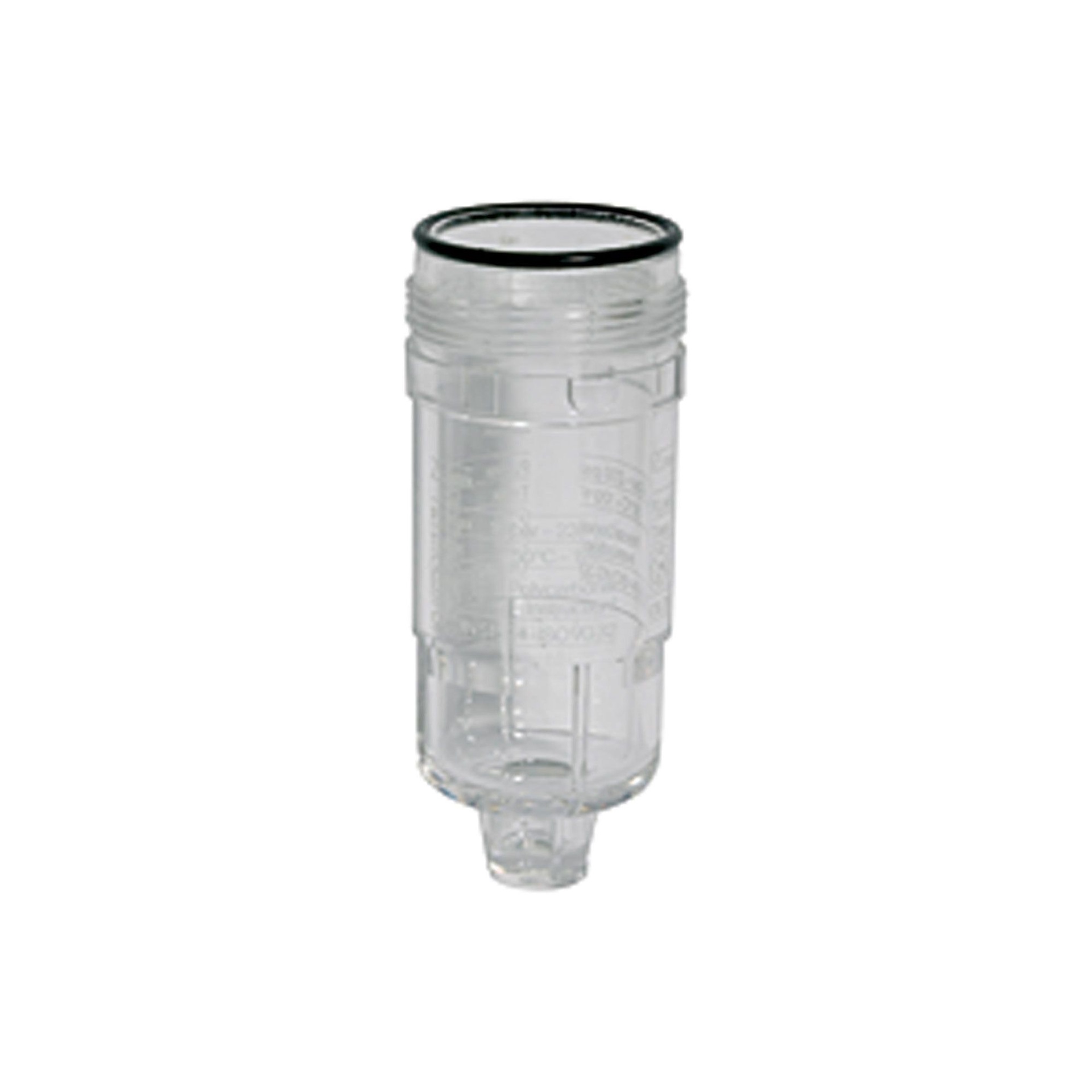

![[100383] RIEGLER Polycarbonate container incl. O-ring](/web/image/product.template/139817/image_128/%5B100383%5D%20RIEGLER%20Polycarbonate%20container%20incl.%20O-ring?unique=98cb52b)
|
Type number: 740/01 |
6.94 € | |
![[143010] RIEGLER Coupling package for wall mounting, incl. 2 screws, »FUTURA-mini«](/web/image/product.template/210835/image_128/%5B143010%5D%20RIEGLER%20Coupling%20package%20for%20wall%20mounting%2C%20incl.%202%20screws%2C%20%C2%BBFUTURA-mini%C2%AB?unique=81a845c)
|
Type number: WKM 100 |
3.37 € | |
![[143022] RIEGLER Coupling package, incl. 2 screws and O-ring, »FUTURA-mini« Size 0](/web/image/product.template/210836/image_128/%5B143022%5D%20RIEGLER%20Coupling%20package%2C%20incl.%202%20screws%20and%20O-ring%2C%20%C2%BBFUTURA-mini%C2%AB%20Size%200?unique=f59eacd)
|
Type number: KPM 100 |
2.05 € | |
![[143105] RIEGLER Mounting bracket incl. 2 screws, for »FUTURA-mini«, Size 0](/web/image/product.template/211156/image_128/%5B143105%5D%20RIEGLER%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200?unique=24f3231)
|
Type number: H 848 |
6.28 € | |
![[152077] RIEGLER Wall console with connection thread G 1/4, »FUTURA-mini«, Size 0](/web/image/product.template/210966/image_128/%5B152077%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%201-4%2C%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200?unique=684fb7a)
|
Typennummer: WK 100-14 |
29.45 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

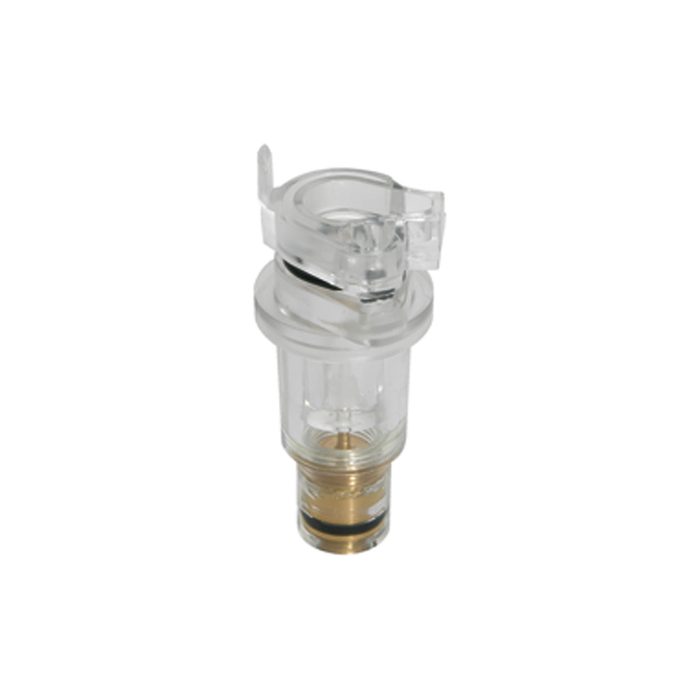

![[100214] Riegler Drip cap polycarbonate, »FUTURA« and »FUTURA-mini«, Size 0 - 4](/web/image/product.template/123261/image_128/%5B100214%5D%20Riegler%20Drip%20cap%20polycarbonate%2C%20%C2%BBFUTURA%C2%AB%20and%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200%20-%204?unique=7fb47e3)
|
Type number: 901.7.990 |
6.71 € | |

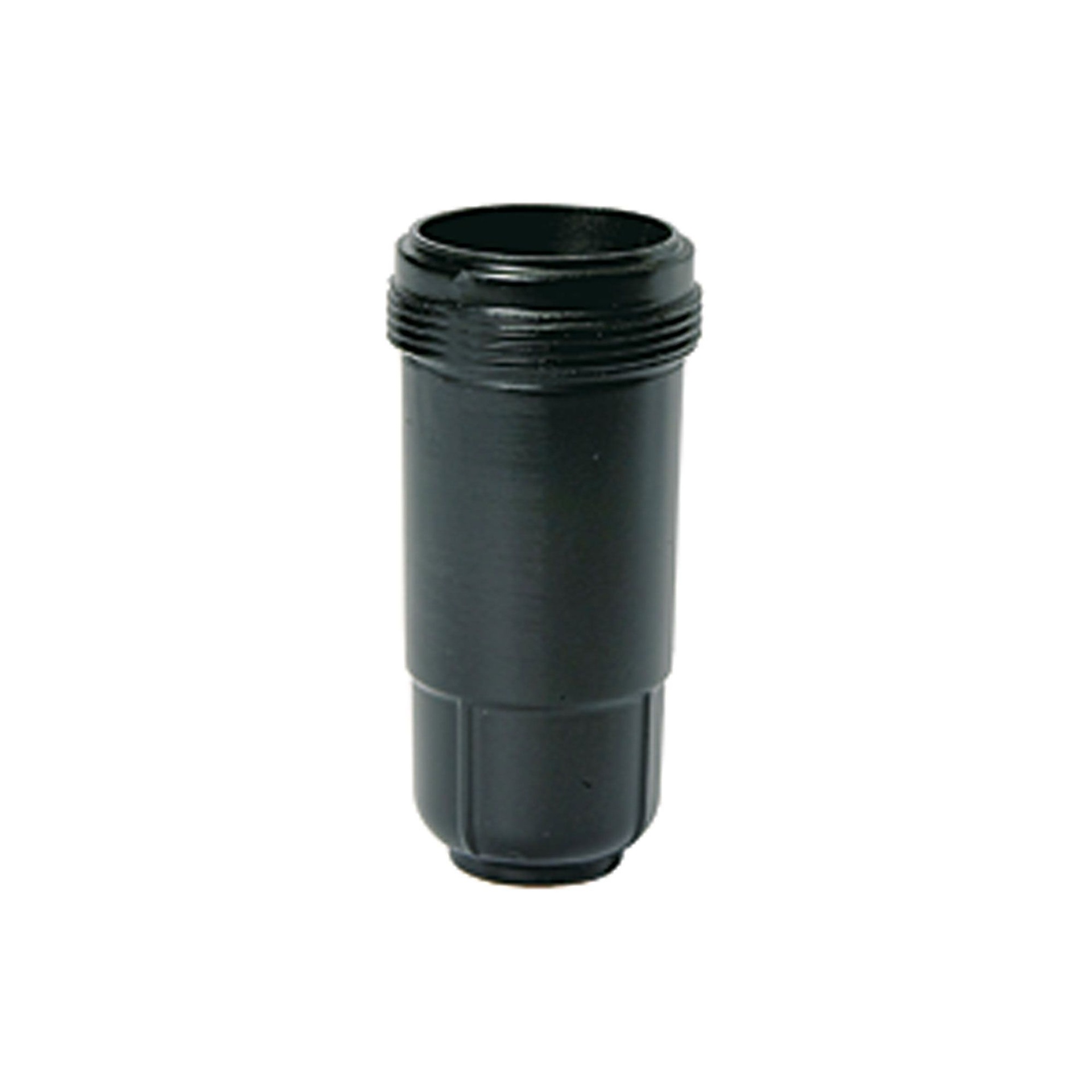

![[100391] RIEGLER Metal container incl. O-ring](/web/image/product.template/139825/image_128/%5B100391%5D%20RIEGLER%20Metal%20container%20incl.%20O-ring?unique=b0bf020)
|
