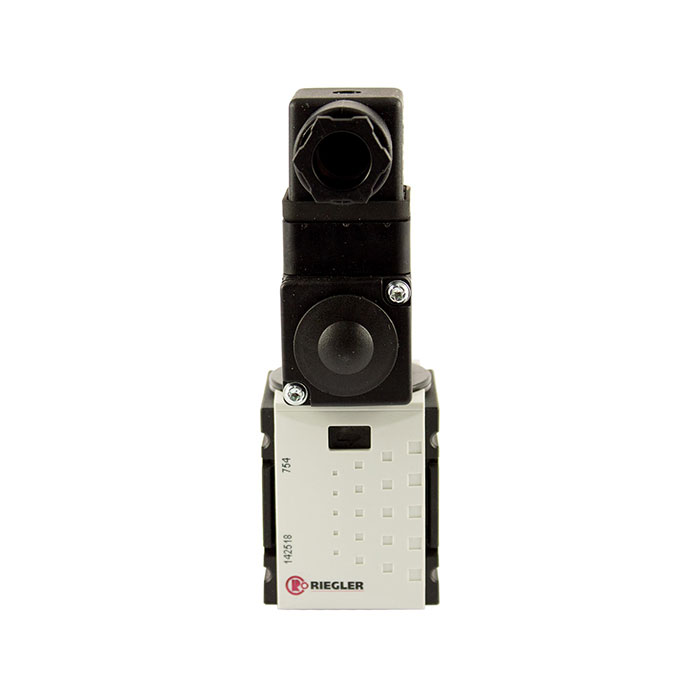

RIEGLER Distributor »FUTURA-mini« Size 0, G 1/4, Pressure switch 1-10 bar
Type number: FUM 941-DS10
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Verteiler »FUTURA-mini«, BG 0, G 1/4, mit mechanischem Druckschalter, Einstellbereich 0,5 - 10 bar, Eingangsdruck max. 12 bar
| Inlet pressure max. | 12 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Plastic |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA-mini |
| Thread | G 1/4 |
| Flow rate | 1 †' 2 2700 l/min, 1 †' 2.1 950 l/min, 1 †' 2.2 2000 l/min |
| Departure | 2 x G 1/4 |
| Setting range min. | 0.5 bar |
| BG | 0 |
| A | 43 mm |
| B | 127 mm |
| C | 99 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Setting range max. | 10 bar |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
| REACH SVHC2 Substance Name | 6,6'-Di-tert-butyl-2,2'-methylenedi-p-cresol |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[143010] RIEGLER Coupling package for wall mounting, incl. 2 screws, »FUTURA-mini«](/web/image/product.template/210835/image_128/%5B143010%5D%20RIEGLER%20Coupling%20package%20for%20wall%20mounting%2C%20incl.%202%20screws%2C%20%C2%BBFUTURA-mini%C2%AB?unique=b4cc5ca)
|
Type number: WKM 100 |
3.42 € | |
![[143022] RIEGLER Coupling package, incl. 2 screws and O-ring, »FUTURA-mini« Size 0](/web/image/product.template/210836/image_128/%5B143022%5D%20RIEGLER%20Coupling%20package%2C%20incl.%202%20screws%20and%20O-ring%2C%20%C2%BBFUTURA-mini%C2%AB%20Size%200?unique=b218dd0)
|
Type number: KPM 100 |
2.07 € | |
![[143105] RIEGLER Mounting bracket incl. 2 screws, for »FUTURA-mini«, Size 0](/web/image/product.template/211156/image_128/%5B143105%5D%20RIEGLER%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200?unique=1a42244)
|
Type number: H 848 |
6.28 € | |
![[152077] RIEGLER Wall console with connection thread G 1/4, »FUTURA-mini«, Size 0](/web/image/product.template/210966/image_128/%5B152077%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%201-4%2C%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200?unique=348d7be)
|
Typennummer: WK 100-14 |
29.45 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

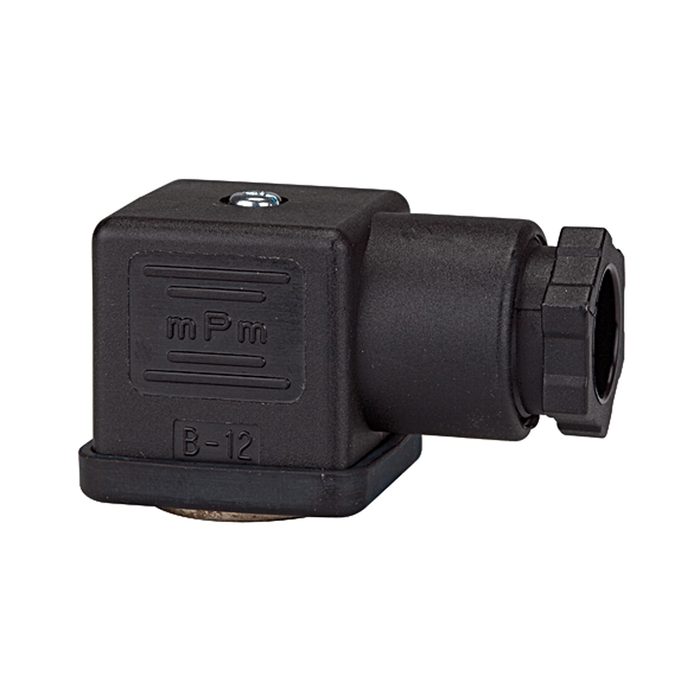

![[100282] RIEGLER Equipment plug for pressure switch, acc. to DIN EN 175301-803 A](/web/image/product.template/139717/image_128/%5B100282%5D%20RIEGLER%20Equipment%20plug%20for%20pressure%20switch%2C%20acc.%20to%20DIN%20EN%20175301-803%20A?unique=d58d063)
|
Type number: 1920.11P4 |
10.00 € | |
![[100280] RIEGLER Pressure switch changeover contact design flangeable, 0.5-10 bar](/web/image/product.template/139715/image_128/%5B100280%5D%20RIEGLER%20Pressure%20switch%20changeover%20contact%20design%20flangeable%2C%200.5-10%20bar?unique=9eb3919)
|
Type number: DS 9410 |
97.29 € | |
![[100281] RIEGLER Shaped seal for flange pressure switch](/web/image/product.template/139716/image_128/%5B100281%5D%20RIEGLER%20Shaped%20seal%20for%20flange%20pressure%20switch?unique=0ea9b41)
|
Type number: 22.DS9410.4 |
4.11 € | |
