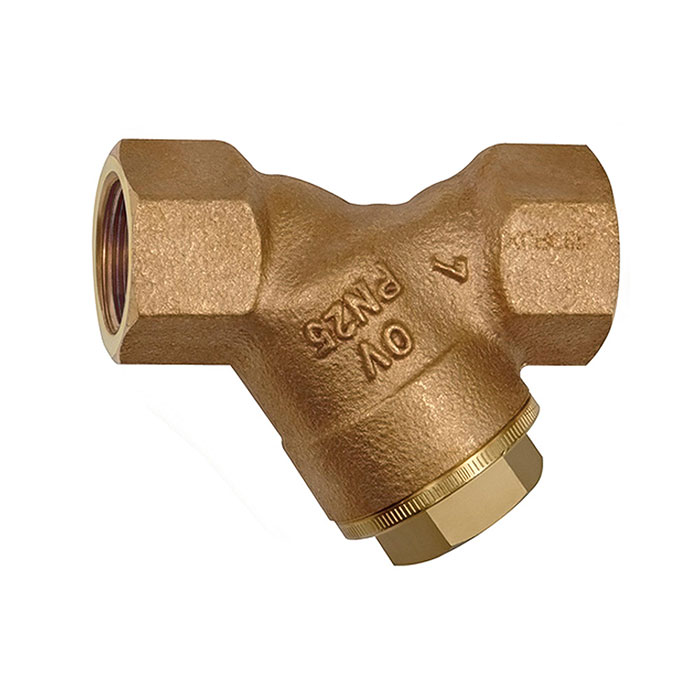

RIEGLER Dirt strainer, Red brass, G 1, DN 25, Mesh width 0.6 mm
Type number: 60-5/K-0.6
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Strainer, gunmetal, strainer insert mesh size 0.6 mm, operating temp. -10 °C to 150 °C, G 1, DN 25, PN max. 25 bar
| Housing | Gunmetal |
| Sealing material | FKM (FPM) O-ring |
| Max. operating pressure | 25 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 150 °C |
| Head piece | Brass |
| Sieve insert | Stainless steel double sieve insert |
| Thread | G 1 |
| DN | 25 |

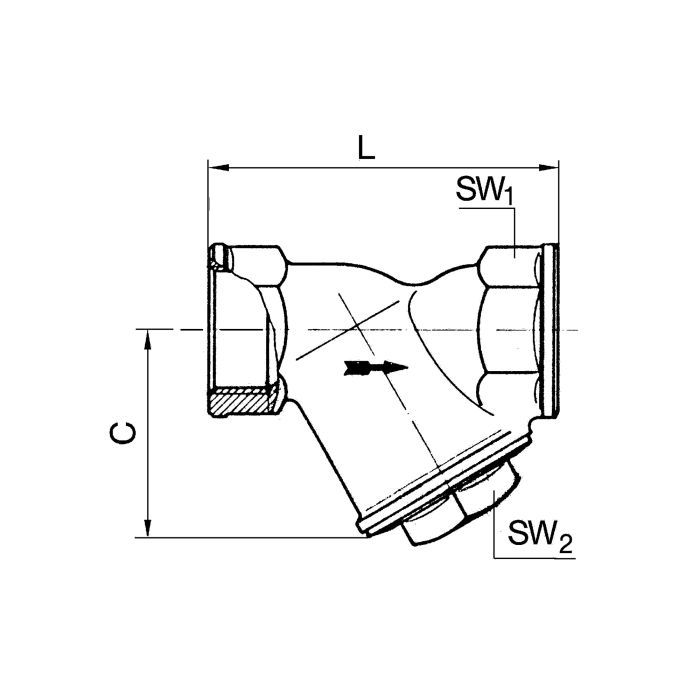

| SW 1 | 38 mm |
| SW 2 | 32 mm |
| Mesh size | 0.6 mm |
| C | 61 mm |
| L | 90 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
