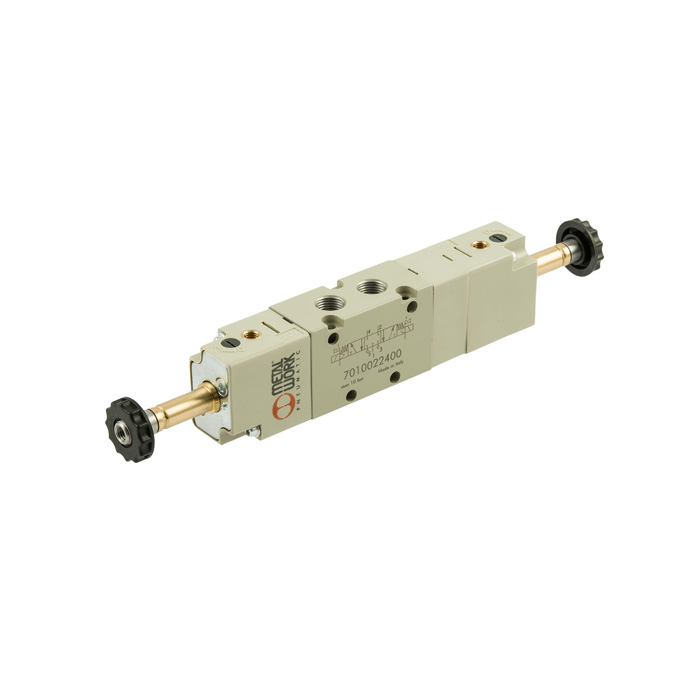

RIEGLER 5/3-way valve, electropneumatic, center vented, G 1/8

Price:

106.05 €

English (US)
  2. Shop
  3. Valves Electropneumatically Operated
  4. RIEGLER 5/3-way valve, electropneumatic, center vented, G 1/8
RIEGLER 5/3-way valve, electropneumatic, center vented, G 1/4
RIEGLER 5/3-way valve, electropneumatic, center vented, G 1/4
121.19 € 121.19 €
RIEGLER 3/2-way mini solenoid valve directly controlled, NC, 12 VDC cable
RIEGLER 3/2-way mini solenoid valve directly controlled, NC, 12 VDC cable
26.91 € 26.91 €

RIEGLER 5/3-way valve, electropneumatic, center vented, G 1/8

https://www.filcom-technik.de/web/image/product.template/279346/image_1920?unique=2b3aeda

Type number: 7010022200

106.05 € 106.05 EUR 106.05 € VAT Included

123.78 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

145719

EAN :

4047322771900

Category :

Valves Electropneumatically Operated

Weight :

0.18 kg

5/3-way valve, electropneumatic, center vented, G 1/8, p = 2.5 ? 10 bar, T = -10 ? 60 °C, aluminum, without plug/coil

Medium Filtered compressed air with or without lubrication. If lubricated, then continuous.
Sealing material NBR
Series Valves Series 70
Operating pressure min. 2.5 bar
Max. operating pressure 10 bar
Medium temperature min. -10 °C
Medium temperature max. 60 °C
Ambient temperature min. -10 °C
Ambient temperature max. 60 °C
Manual override resting
DN 5
Actuation Center vented
Symbol 38
Connection G 1/8
Flow 1 400 Nl/min
Flow 2 550 Nl/min
Class name PLUS
Function 45356
Flow rate measurement 1 Flow rate at 6 bar and ∆p 0.5 bar
Flow rate measurement 2 Flow rate at 6 bar and Δp 1.0 bar
