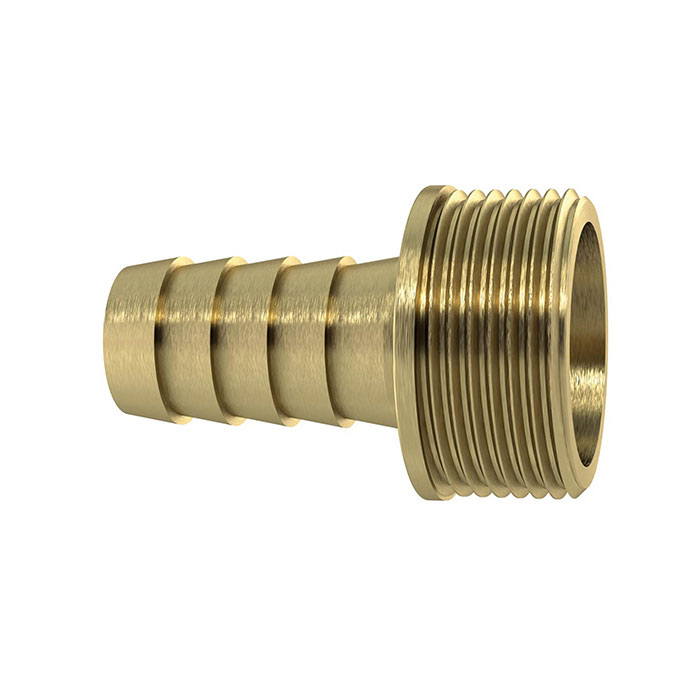

RIEGLER 1/3 Tube fitting G3/4x16 taper seat, with collar, CH type, Brass
Typennummer: SV3416MS13CH
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 1/3 brass hose connector CW614N, for pneumatic installation, max. 16 bar - type SV3416MS13CH
The RIEGLER 1/3 hose connector G3/4x16 flat with collar, CH version MS connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of brass CW614N. The operating pressure range is 0 bar to 16 bar. The operating temperature is between -10 °C and 100 °C. G 3/4 connection thread - suitable for common industry standards. Simple assembly and disassembly for flexible pipe routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Operating pressure min. | 0 bar |
| Max. operating pressure | 16 bar |
| Material | Brass CW614N |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Thread | G 3/4 |
| for hose | 16 mm |
| D | 26.8 mm |
| L1 | 42.5 mm |
| L2 | 28.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[146153] RIEGLER 1/3 Tube fitting G1/2x10 taper seat, with collar, CH type, Brass](/web/image/product.template/210427/image_128/%5B146153%5D%20RIEGLER%201-3%20Tube%20fitting%20G1-2x10%20taper%20seat%2C%20with%20collar%2C%20CH%20type%2C%20Brass?unique=a491f84)
|
Typennummer: SV1210MS13CH |
1.00 € | |
![[146154] RIEGLER 1/3 Tube fitting G1/2x13 taper seat, with collar, CH type, Brass](/web/image/product.template/210428/image_128/%5B146154%5D%20RIEGLER%201-3%20Tube%20fitting%20G1-2x13%20taper%20seat%2C%20with%20collar%2C%20CH%20type%2C%20Brass?unique=68ae58d)
|
Typennummer: SV1213MS13CH |
1.01 € | |
![[146155] RIEGLER 1/3 Tube fitting G1/2x16 taper seat, with collar, CH type, Brass](/web/image/product.template/210429/image_128/%5B146155%5D%20RIEGLER%201-3%20Tube%20fitting%20G1-2x16%20taper%20seat%2C%20with%20collar%2C%20CH%20type%2C%20Brass?unique=5f0a865)
|
Typennummer: SV1216MS13CH |
1.11 € | |
![[146160] RIEGLER 1/3 Tube fitting G1x13 taper seat, with collar, CH type, Brass](/web/image/product.template/210433/image_128/%5B146160%5D%20RIEGLER%201-3%20Tube%20fitting%20G1x13%20taper%20seat%2C%20with%20collar%2C%20CH%20type%2C%20Brass?unique=667c31f)
|
Typennummer: SV1013MS13CH |
2.23 € | |
![[146161] RIEGLER 1/3 Tube fitting G1x16 taper seat, with collar, CH type, Brass](/web/image/product.template/210434/image_128/%5B146161%5D%20RIEGLER%201-3%20Tube%20fitting%20G1x16%20taper%20seat%2C%20with%20collar%2C%20CH%20type%2C%20Brass?unique=6ba20ce)
|
Typennummer: SV1016MS13CH |
2.33 € | |
![[146162] RIEGLER 1/3 Tube fitting G1x19 taper seat, with collar, CH type, Brass](/web/image/product.template/210435/image_128/%5B146162%5D%20RIEGLER%201-3%20Tube%20fitting%20G1x19%20taper%20seat%2C%20with%20collar%2C%20CH%20type%2C%20Brass?unique=885bb51)
|
Typennummer: SV1019MS13CH |
2.34 € | |
![[146163] RIEGLER 1/3 Tube fitting G1x22 taper seat, with collar, CH type, Brass](/web/image/product.template/210436/image_128/%5B146163%5D%20RIEGLER%201-3%20Tube%20fitting%20G1x22%20taper%20seat%2C%20with%20collar%2C%20CH%20type%2C%20Brass?unique=60994aa)
|
Typennummer: SV1022MS13CH |
2.96 € | |
![[146164] RIEGLER 1/3 Tube fitting G1x25 taper seat, with collar, CH type, Brass](/web/image/product.template/210437/image_128/%5B146164%5D%20RIEGLER%201-3%20Tube%20fitting%20G1x25%20taper%20seat%2C%20with%20collar%2C%20CH%20type%2C%20Brass?unique=366c5f0)
|
Typennummer: SV1025MS13CH |
3.06 € | |

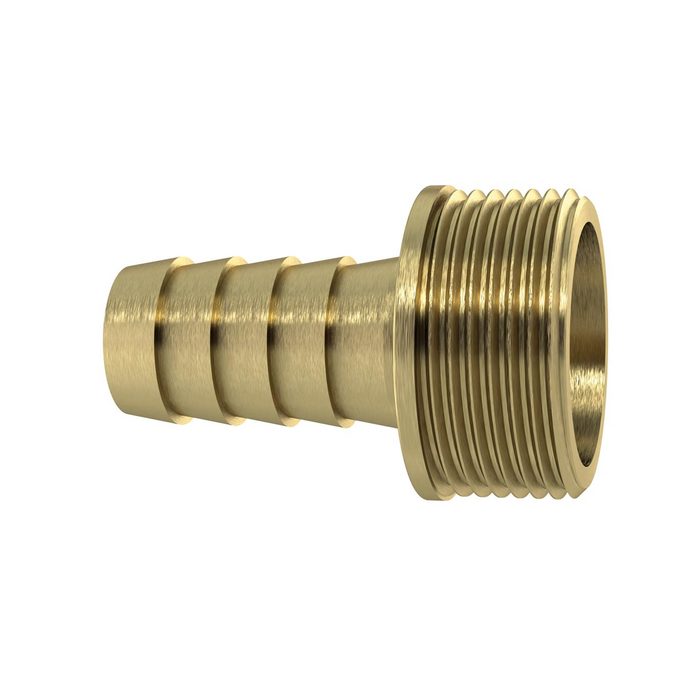

![[146156] RIEGLER 1/3 Tube fitting G3/4x13 taper seat, with collar, CH type, Brass](/web/image/product.template/210430/image_128/%5B146156%5D%20RIEGLER%201-3%20Tube%20fitting%20G3-4x13%20taper%20seat%2C%20with%20collar%2C%20CH%20type%2C%20Brass?unique=a1bbaa7)
|
