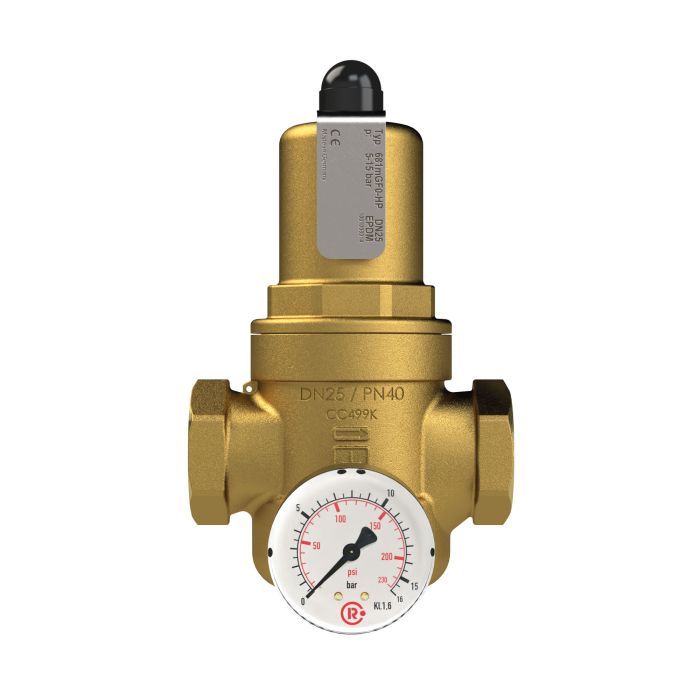

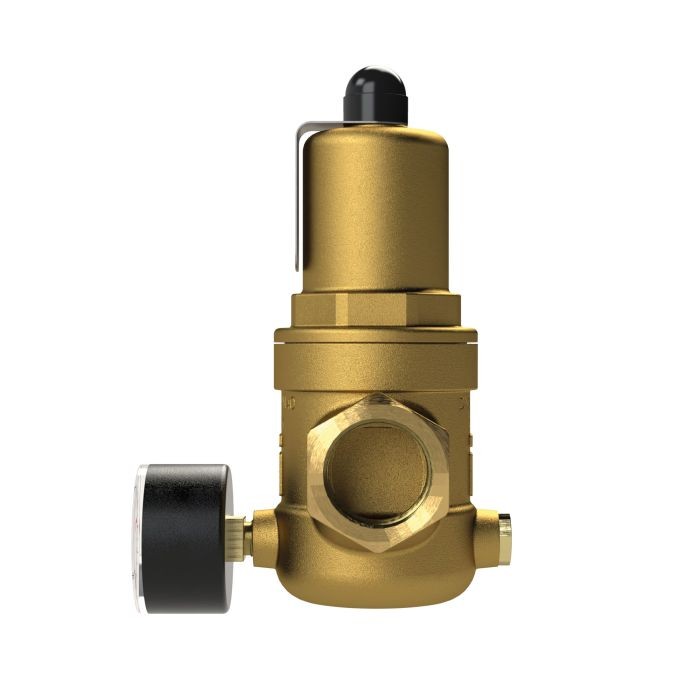

RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, G 1 female thread, 1 - 8 bar
Typennummer: DRTWR.G1.1-8B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure regulator for potable water made of gunmetal (CC499K), for compressed air treatment, 1 bar - Type DRTWR.G1.1-8B
The RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, G 1 female thread, 1 - 8 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of gunmetal (CC499K) with EPDM seals. The control range extends from 1 bar to 8 bar with a maximum inlet pressure of 40 bar. The operating temperature is between -20 °C and 95 °C. Connection thread G 1 IG - suitable for common industry standards. Suitable for drinking water, nitrogen, argon, neutral and non-adhesive liquids, compressed air and neutral gases. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Operating temperature max. drinking water | 80 °C |

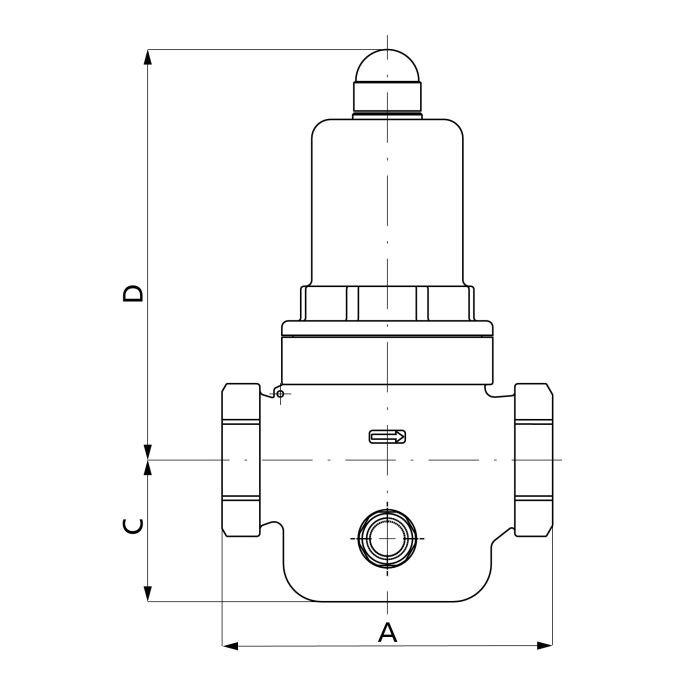

| D | 130 mm |
| Flow rate kvs-value | 6.7 m³/h |
| Interior parts | Gunmetal (CC499K) and stainless steel (1.4404) |
| Housing | Gunmetal (CC499K) |
| Medium | Drinking water, nitrogen, argon, neutral and non-adhesive liquids, compressed air and neutral gases |
| SW | 43 mm |
| Control range max. | 8 bar |
| DN | 25 |
| Operating temperature min. | -20 °C |
| Control range min. | 1 bar |
| A | 105 mm |
| Inlet pressure max. | 40 bar |
| C | 45 mm |
| Operating temperature max. | 95 °C |
| Sealing material | EPDM |
| Class name | FLEX |
| Thread | G 1 IG |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[146316] RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, G 1/2 IG, 1 - 8 bar](/web/image/product.template/283967/image_128/%5B146316%5D%20RIEGLER%20pressure%20regulator%20for%20drinking%20water%2C%20gunmetal%2C%20w.%20Mano%2C%20G%201-2%20IG%2C%201%20-%208%20bar?unique=f032067)
|
Typennummer: DRTWR.G12.1-8B |
129.66 € | |
![[146317] RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, G 1/2 IG, 5 - 15 bar](/web/image/product.template/283968/image_128/%5B146317%5D%20RIEGLER%20pressure%20regulator%20for%20drinking%20water%2C%20gunmetal%2C%20w.%20Mano%2C%20G%201-2%20IG%2C%205%20-%2015%20bar?unique=f9fb649)
|
Typennummer: DRTWR.G12.5-15B |
151.17 € | |
![[146321] RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, G 1 female thread, 5 - 15 bar](/web/image/product.template/283972/image_128/%5B146321%5D%20RIEGLER%20pressure%20regulator%20for%20drinking%20water%2C%20gunmetal%2C%20w.%20Mano%2C%20G%201%20female%20thread%2C%205%20-%2015%20bar?unique=b83858f)
|
Typennummer: DRTWR.G1.5-15B |
180.70 € | |
![[146318] RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, G 3/4 IG, 1 - 8 bar](/web/image/product.template/283969/image_128/%5B146318%5D%20RIEGLER%20pressure%20regulator%20for%20drinking%20water%2C%20gunmetal%2C%20w.%20Mano%2C%20G%203-4%20IG%2C%201%20-%208%20bar?unique=aabca27)
|
Typennummer: DRTWR.G34.1-8B |
144.81 € | |

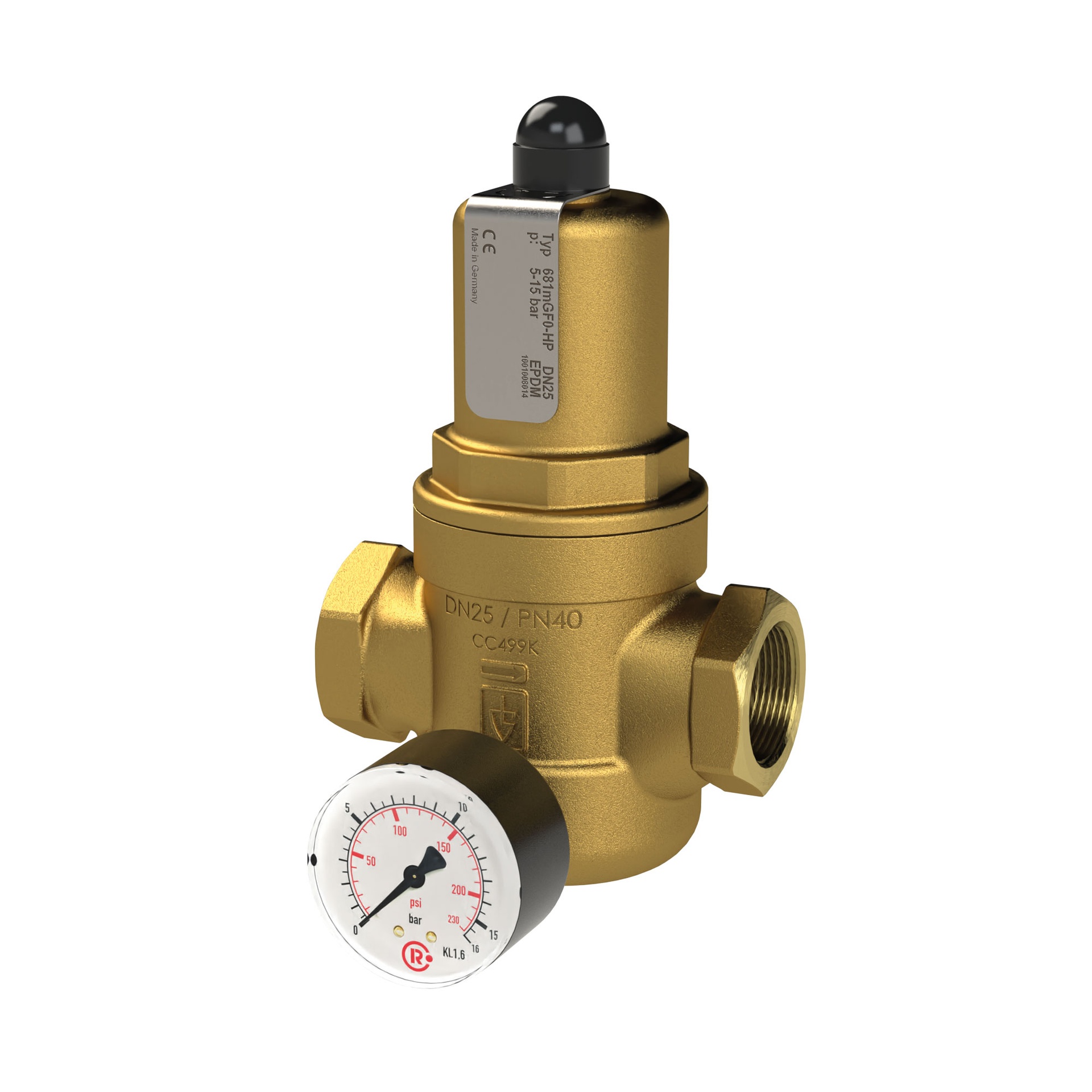

![[146319] RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, G 3/4 IG, 5 - 15 bar](/web/image/product.template/283970/image_128/%5B146319%5D%20RIEGLER%20pressure%20regulator%20for%20drinking%20water%2C%20gunmetal%2C%20w.%20Mano%2C%20G%203-4%20IG%2C%205%20-%2015%20bar?unique=42cf9b0)
|
Typennummer: DRTWR.G34.5-15B |
163.14 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

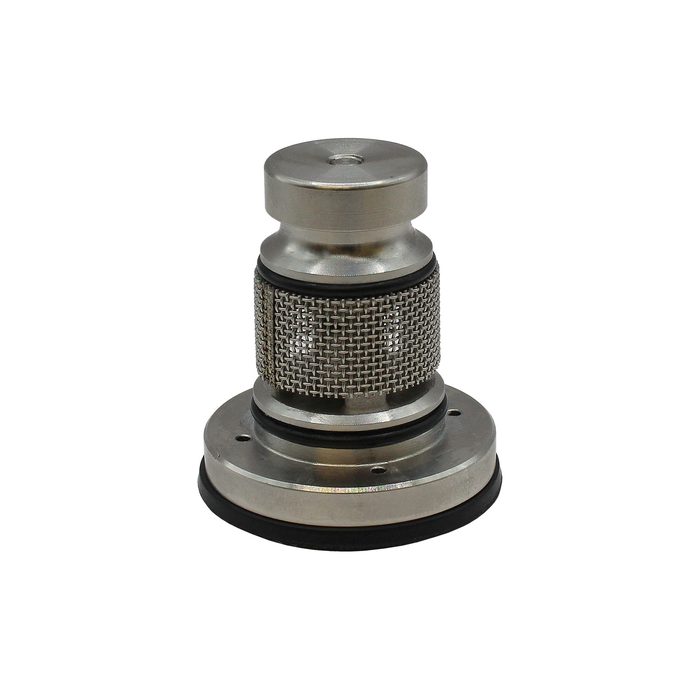

![[146313] RIEGLER valve insert for drinking water pressure regulator, G 1 and R 1 1/4](/web/image/product.template/283965/image_128/%5B146313%5D%20RIEGLER%20valve%20insert%20for%20drinking%20water%20pressure%20regulator%2C%20G%201%20and%20R%201%201-4?unique=3d0f498)
|
Typennummer: VEDRTWR.G1.R114 |
90.95 € | |
