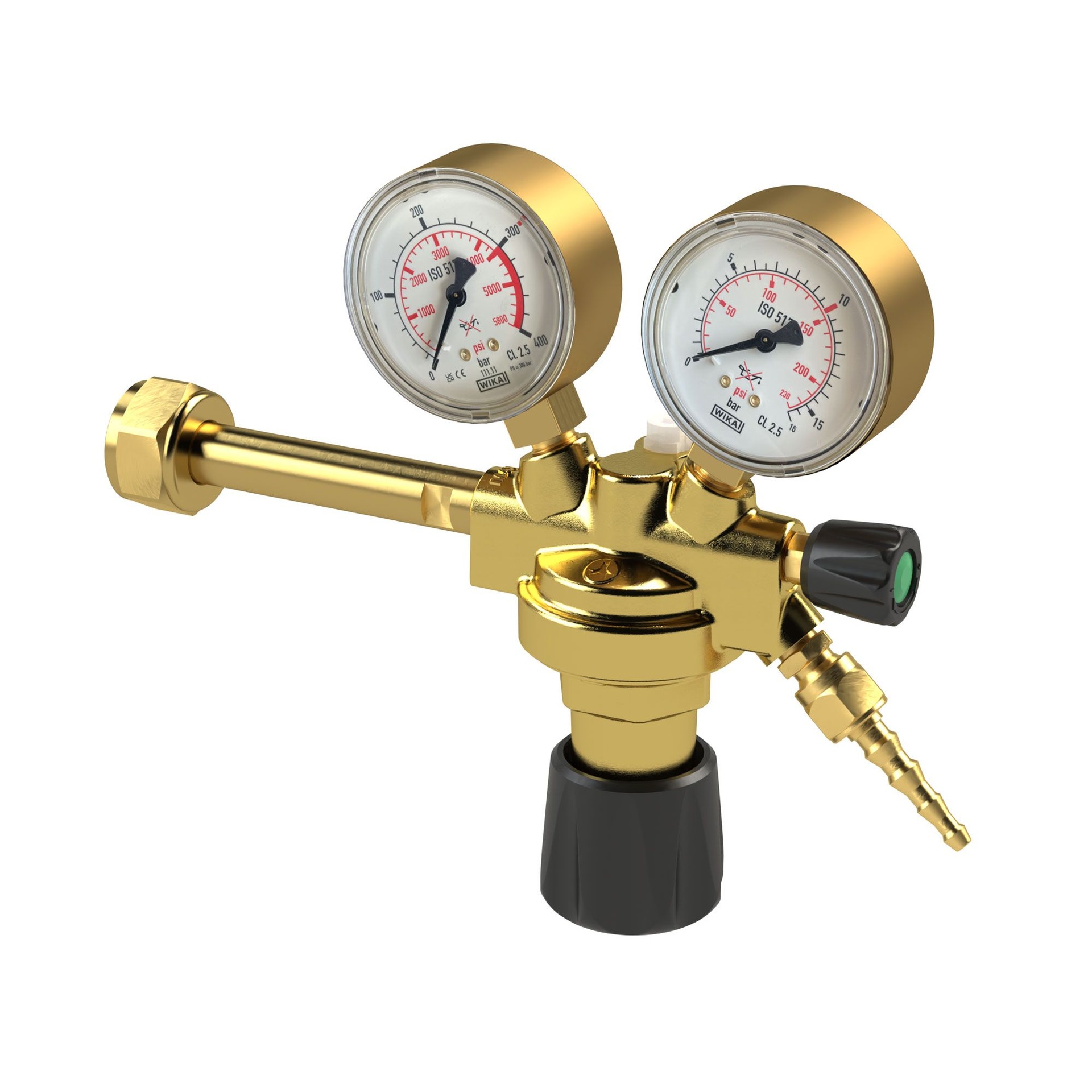

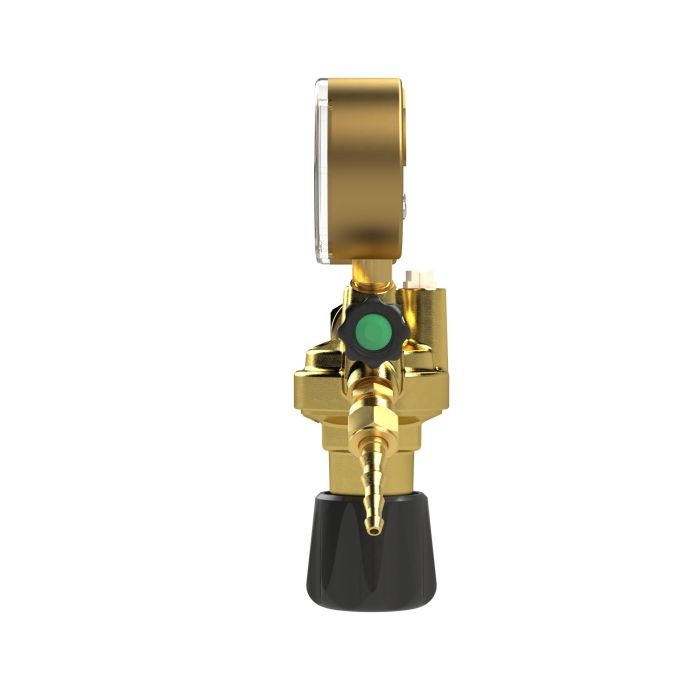

RIEGLER Cylinder pressure regulator, 200 bar, argon/helium, working pressure 0-10 bar
Typennummer: FDM200.ArHe.10
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Cylinder pressure reducer, cylinder pressure 200 bar, for non-flammable gases, gas type: argon/helium, working pressure 0 - 10.0 bar
| Housing | Pressed brass |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Bottle connection | W 21.8 x 1/14 |
| Gas type | Argon/helium |
| Display area | 0 - 300/400 bar |
| Class name | FLEX |
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Working pressure gauge display range | 0-16 / rZ 10 bar |
| Hose connection | G 1/4 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[146752] RIEGLER cylinder pressure reducer, 200 bar, oxygen, working pressure 0-10 bar](/web/image/product.template/282338/image_128/%5B146752%5D%20RIEGLER%20cylinder%20pressure%20reducer%2C%20200%20bar%2C%20oxygen%2C%20working%20pressure%200-10%20bar?unique=29edc51)
|
Typennummer: FDM200.O2.10 |
92.45 € | |
![[146758] RIEGLER cylinder pressure regulator, 200 bar, CO2/Argon, working pressure 0-10 bar](/web/image/product.template/282336/image_128/%5B146758%5D%20RIEGLER%20cylinder%20pressure%20regulator%2C%20200%20bar%2C%20CO2-Argon%2C%20working%20pressure%200-10%20bar?unique=29edc51)
|
Typennummer: FDM200.CO2AR.10 |
91.50 € | |
![[146759] RIEGLER cylinder pressure regulator, 200 bar, CO2/Argon, working pressure 0-25 bar](/web/image/product.template/282337/image_128/%5B146759%5D%20RIEGLER%20cylinder%20pressure%20regulator%2C%20200%20bar%2C%20CO2-Argon%2C%20working%20pressure%200-25%20bar?unique=29edc51)
|
Typennummer: FDM200.CO2AR.25 |
94.55 € | |
![[146756] RIEGLER Cylinder pressure regulator, 200 bar, nitrogen, working pressure 0 - 10 bar](/web/image/product.template/264399/image_128/%5B146756%5D%20RIEGLER%20Cylinder%20pressure%20regulator%2C%20200%20bar%2C%20nitrogen%2C%20working%20pressure%200%20-%2010%20bar?unique=29edc51)
|
Typennummer: FDM200.N2.10 |
90.83 € | |

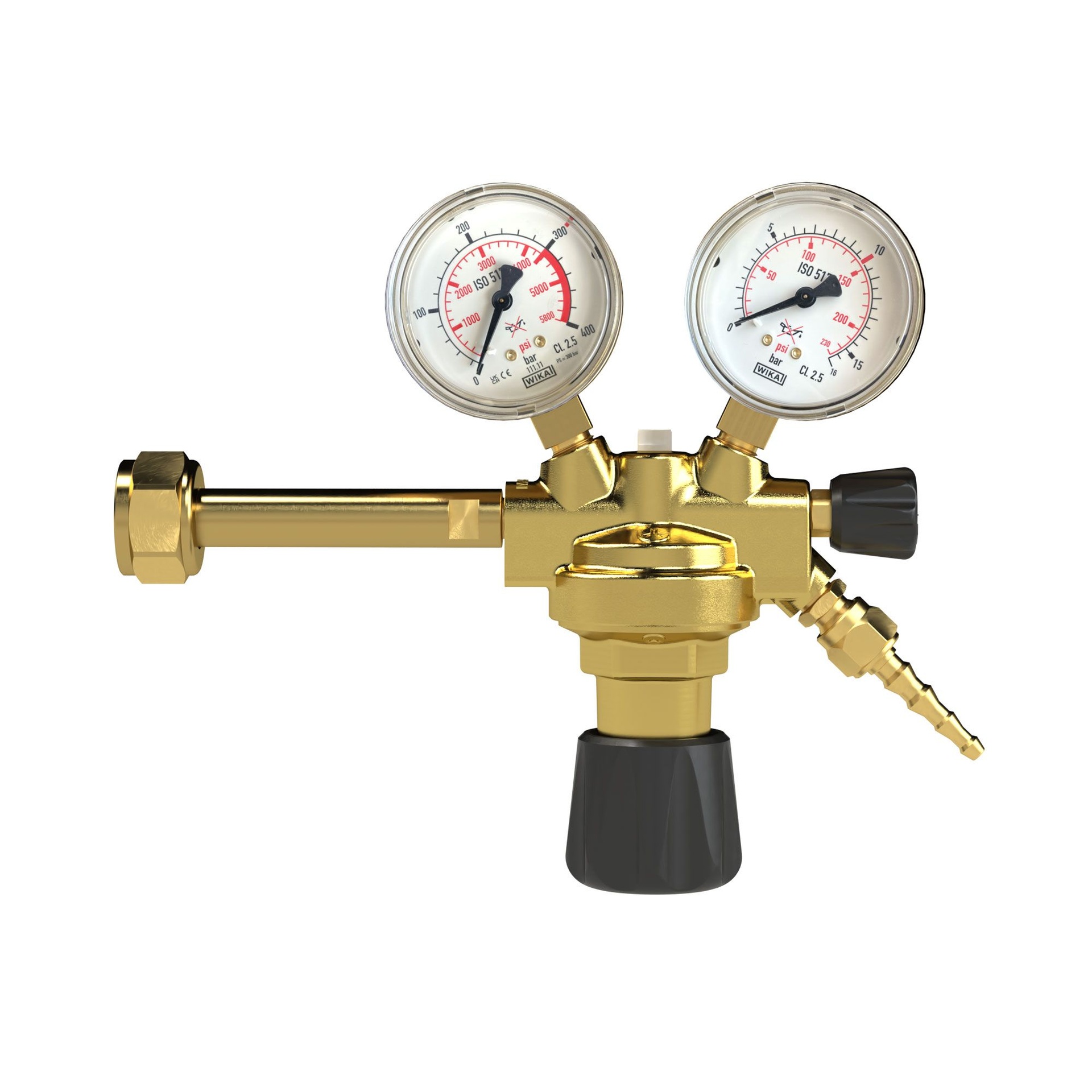

![[146757] RIEGLER Cylinder pressure regulator, 200 bar, nitrogen, working pressure 0 - 25 bar](/web/image/product.template/264397/image_128/%5B146757%5D%20RIEGLER%20Cylinder%20pressure%20regulator%2C%20200%20bar%2C%20nitrogen%2C%20working%20pressure%200%20-%2025%20bar?unique=29edc51)
|
