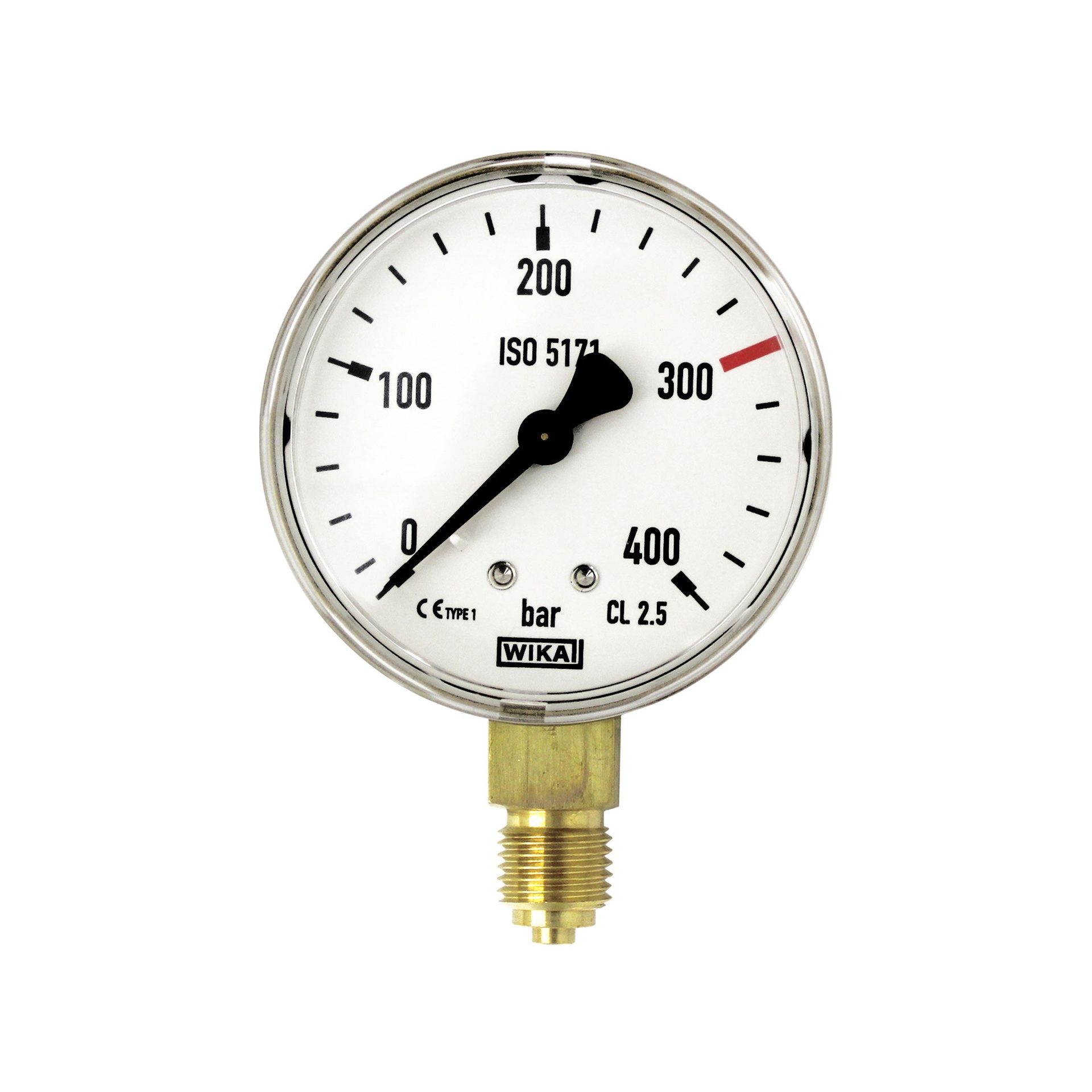

RIEGLER Contents Mano. f. Cylinder pressure reducer, O2, G1/4, 0-400 bar, Ø 63
Typennummer: IMF.O2.14.400.63
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Contents pressure gauge for cylinder pressure regulator, steel housing, oxygen, G 1/4, radial bottom connection, 0 - 400 bar, Ø 63
| Quality class | 45779 |
| Measuring range max. | 400 |
| Housing | Steel, brass-colored |
| Measuring range min. bar | 0 |
| Graduation value in the bar range | 20 bar |
| Diameter | 63 mm |
| Connection | G 1/4 |
| Viewing window | Plastic |
| Pointer movement | Copper alloy |
| Measuring element | Copper alloy |
| Process connection material | Copper alloy |
| Connection position | radial bottom |
| Class name | ACCESSORIES |
