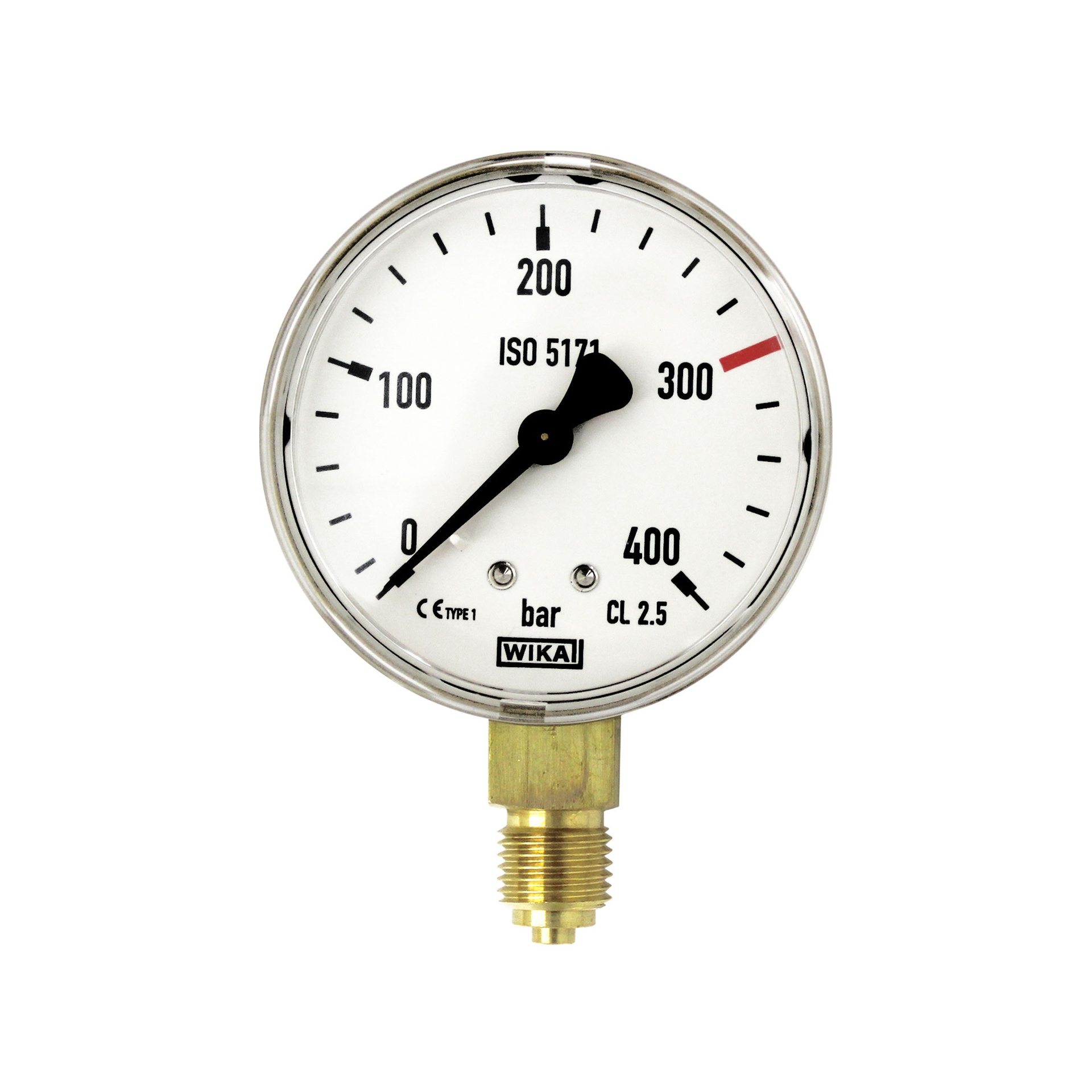

RIEGLER Contents mano. f. Cylinder pressure reducer, neutral, G1/4, 0-400 bar, Ø63
Typennummer: IMF.N.14.400.63
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Contents mano. f. Steel cylinder pressure reducer, brass-colored, for welding, G 1/4 - Type IMF.N.14.400.63
The RIEGLER content mano. f. G1/4, 0-400 bar,Ø63 supports professional welding and soldering work with pressure regulators and accessories. The housing is made of steel, brass-colored. G 1/4 connection thread - suitable for common industry standards. Precise gas regulation for clean weld seams.
Field of application
Typical areas of application: Autogenous welding, brazing and gas-oxygen welding.
| Quality class | 45779 |
| Measuring range max. | 400 |
| Housing | Steel, brass-colored |
| Measuring range min. bar | 0 |
| Graduation value in the bar range | 20 bar |
| Diameter | 63 mm |
| Connection | G 1/4 |
| Viewing window | Plastic |
| Pointer movement | Copper alloy |
| Measuring element | Copper alloy |
| Process connection material | Copper alloy |
| Connection position | radial bottom |
| Class name | ACCESSORIES |
