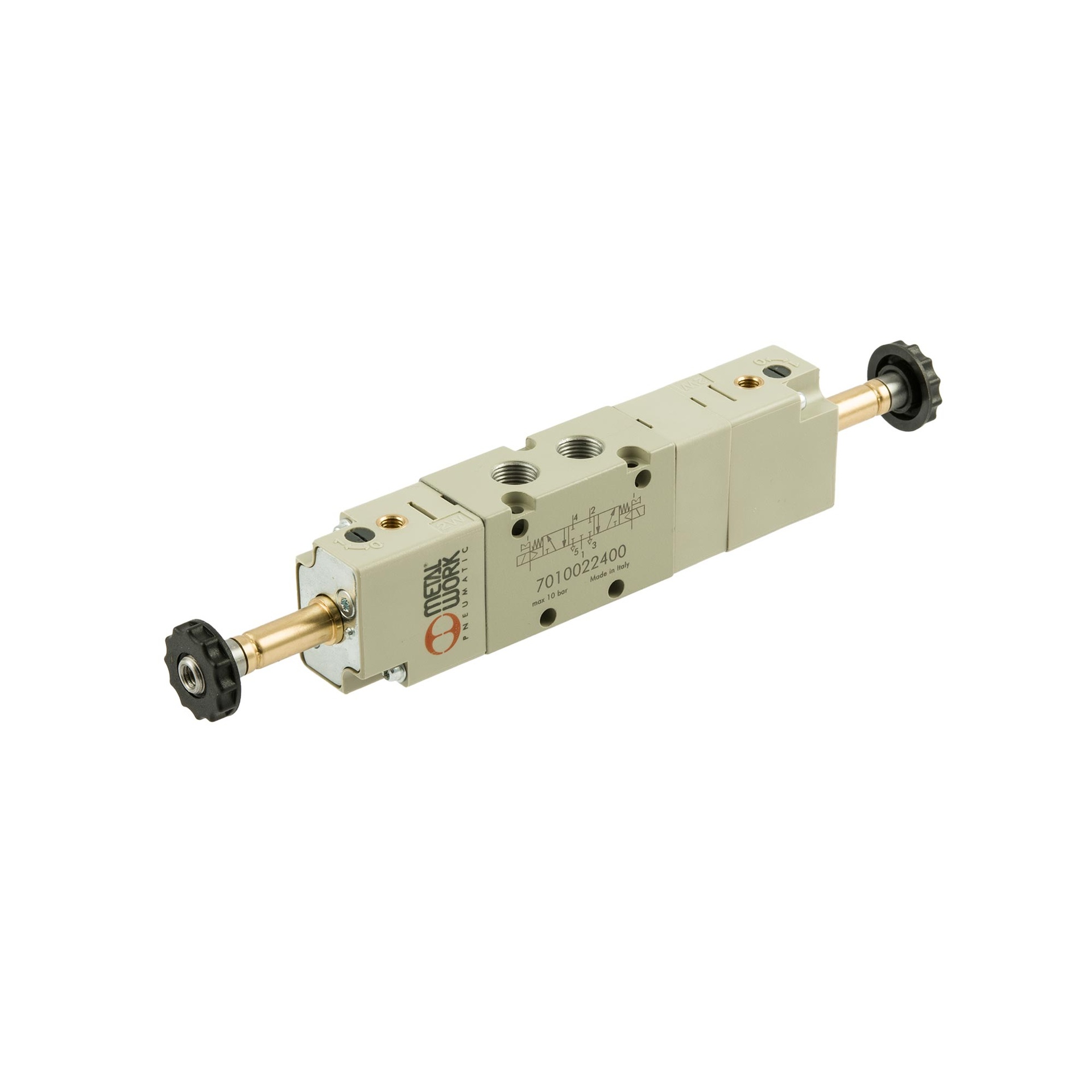

RIEGLER 5/3-way valve, electropneumatic, external control, center closed, G 1/8
Typennummer: 7010022400
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
147129EAN :
4047322788540Category :
Valves Electropneumatically OperatedWeight :
0.17 kg5/3-way valve, elpn., ext. pilot, center closed, G 1/8, p= vacuum?10 bar, pilot pressure 2.5?10 bar, T= -10?60°C, aluminum, no pcs./sp.
| Execution | electropneumatic |
| Control air supply | external |
| Tension | ohne Spannung |
| Symbol | 61 |
| Scope of delivery | without plug and coil |
| Pilot air connection | M5 |
| Series | Series 70 |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Flow 2 | 550 Nl/min |
| Flow 1 | 400 Nl/min |
| Function | 5/3 |
| Actuation | Center closed |
| DN | 5 |
| Operating pressure min. | -0.99 bar |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control pressure max. | 10 bar |
| Max. operating pressure | 10 bar |
| Control pressure min. | 2.5 bar |
| Ambient temperature max. | 60 °C |
| Medium temperature max. | 60 °C |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Class name | PLUS |
| Manual override | resting |
