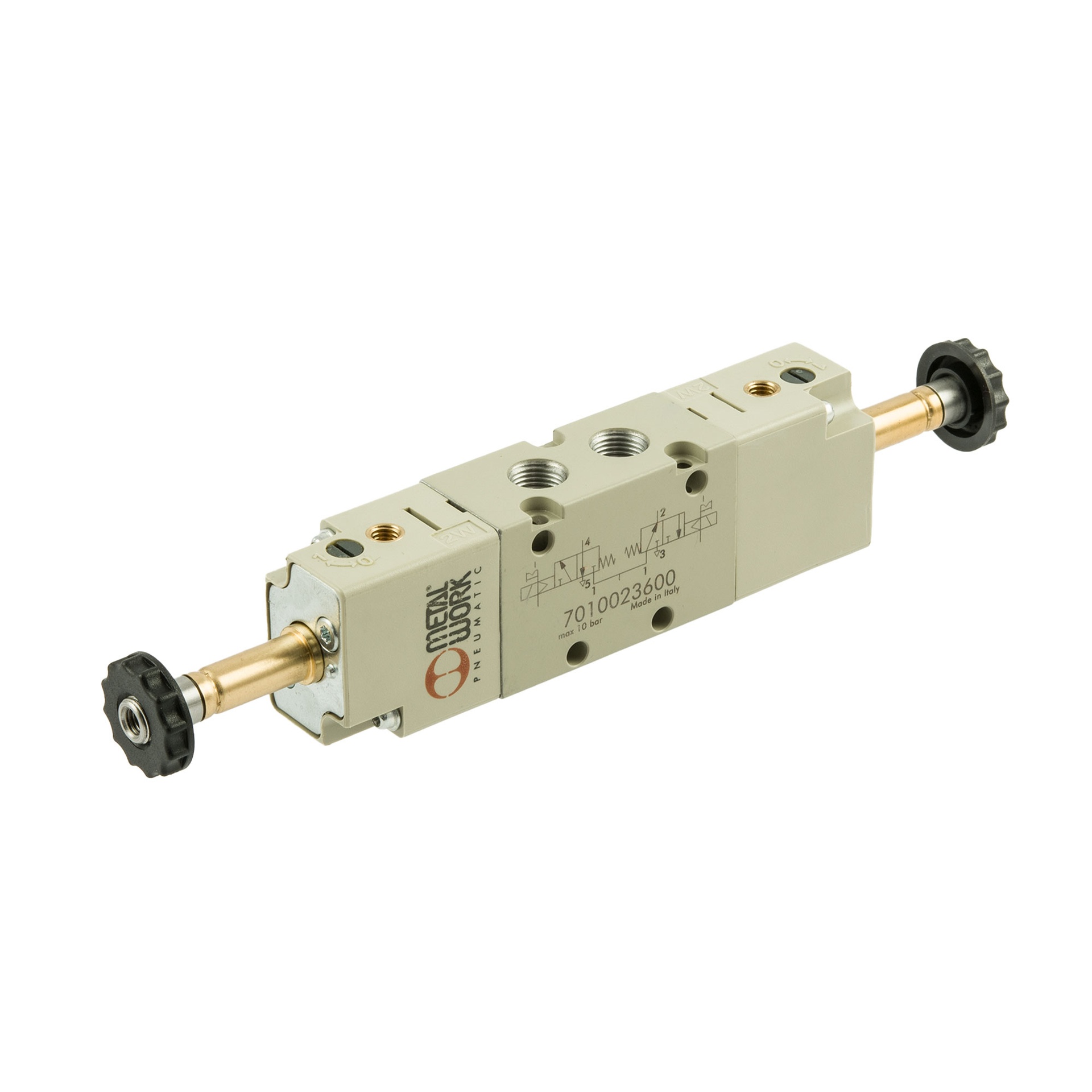

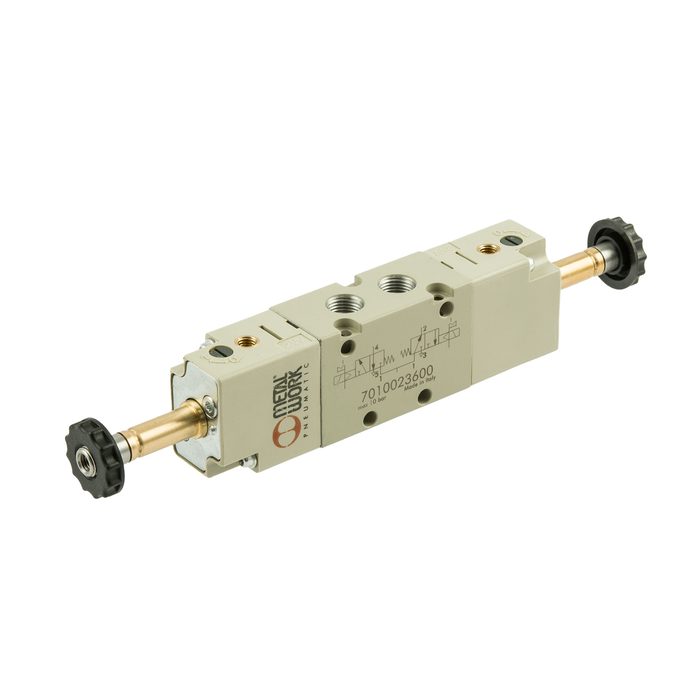

RIEGLER 5/3-way valve, electropneumatic, external control, center closed, G 3/8
Typennummer: 7040022400
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
147131EAN :
4047322788564Category :
Valves Electropneumatically OperatedWeight :
0.48 kgRIEGLER 5/3-way valve for pneumatic control, max. 10 bar, G 3/8 - type 7040022400
The RIEGLER 5/3-way valve, electropneumatic, external control, center-closed, G 3/8 controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. The operating pressure range is -0.99 bar to 10 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 3/8 - suitable for common industry standards. Suitable for filtered compressed air with or without lubrication. If lubricated, then continuous. Operating voltage without voltage. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Execution | electropneumatic |
| DN | 133 |
| Control air supply | external |
| Tension | ohne Spannung |
| Symbol | 61 |
| Scope of delivery | without plug and coil |
| Series | Series 70 |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Flow 2 | 2150 Nl/min |
| Flow 1 | 1560 Nl/min |
| Function | 5/3 |
| Actuation | Center closed |
| Operating pressure min. | -0.99 bar |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control pressure max. | 10 bar |
| Max. operating pressure | 10 bar |
| Control pressure min. | 2.5 bar |
| Ambient temperature max. | 60 °C |
| Medium temperature max. | 60 °C |
| CAS No. SVHC 1 | 7439-92-1 |
| Pilot air connection | G 1/8 |
| Connection | G 3/8 |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Class name | PLUS |
| Manual override | resting |
