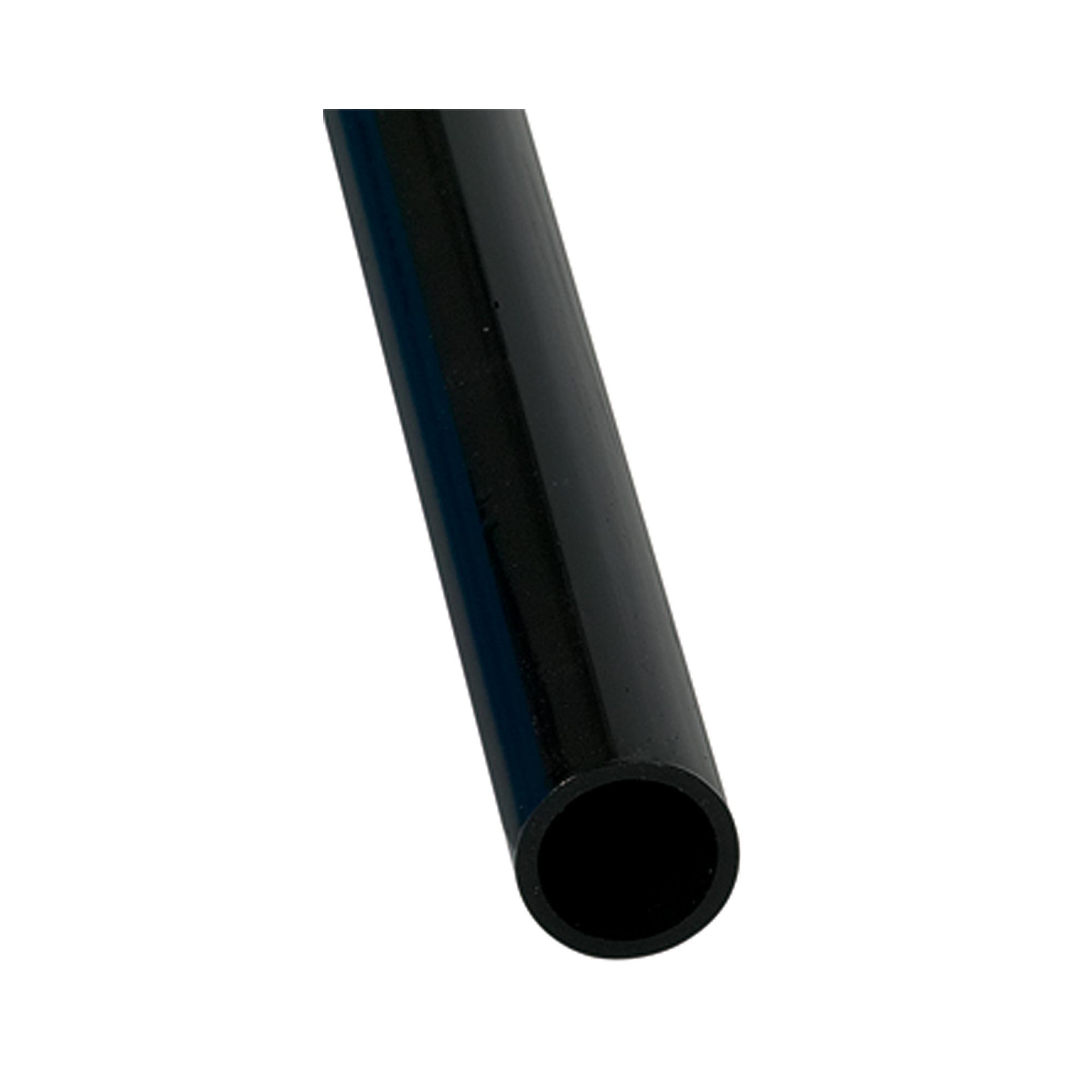

RIEGLER plastic pipe, PA 12, black, pipe ø 18x14, 3 m
Typennummer: PAR1814.3.S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Plastic pipe made of PA 12, hard (to DIN 73378), for compressed air distribution, max. 28 bar - type PAR1814.3.S
The RIEGLER plastic pipe, PA 12, black, pipe ø 18x14, 3 m conducts compressed air and media flexibly or permanently installed. The housing is made of PA 12, hard (to DIN 73378). The operating pressure range is -0.95 bar to 28 bar. The operating temperature is between -60 °C and 100 °C. Flexible and pressure-resistant.
Field of application
Typical areas of application: Compressed air distribution and media lines.
| RoHS material information | Rohs compliant |
| Colour | black |
| Working pressure min. | -0.95 bar |
| Operating temperature min. | -60 °C |
| Operating temperature max. | 100 °C |
| Tube inside Ø | 14 mm |
| Tube outer Ø | 18 mm |
| Working pressure max. | 28 bar |
| Pipe length | 3 m |
| REACH Info | no SVHC substance contained |
| Material | PA 12, hard (according to DIN 73378) |
| Class name | PLUS |
